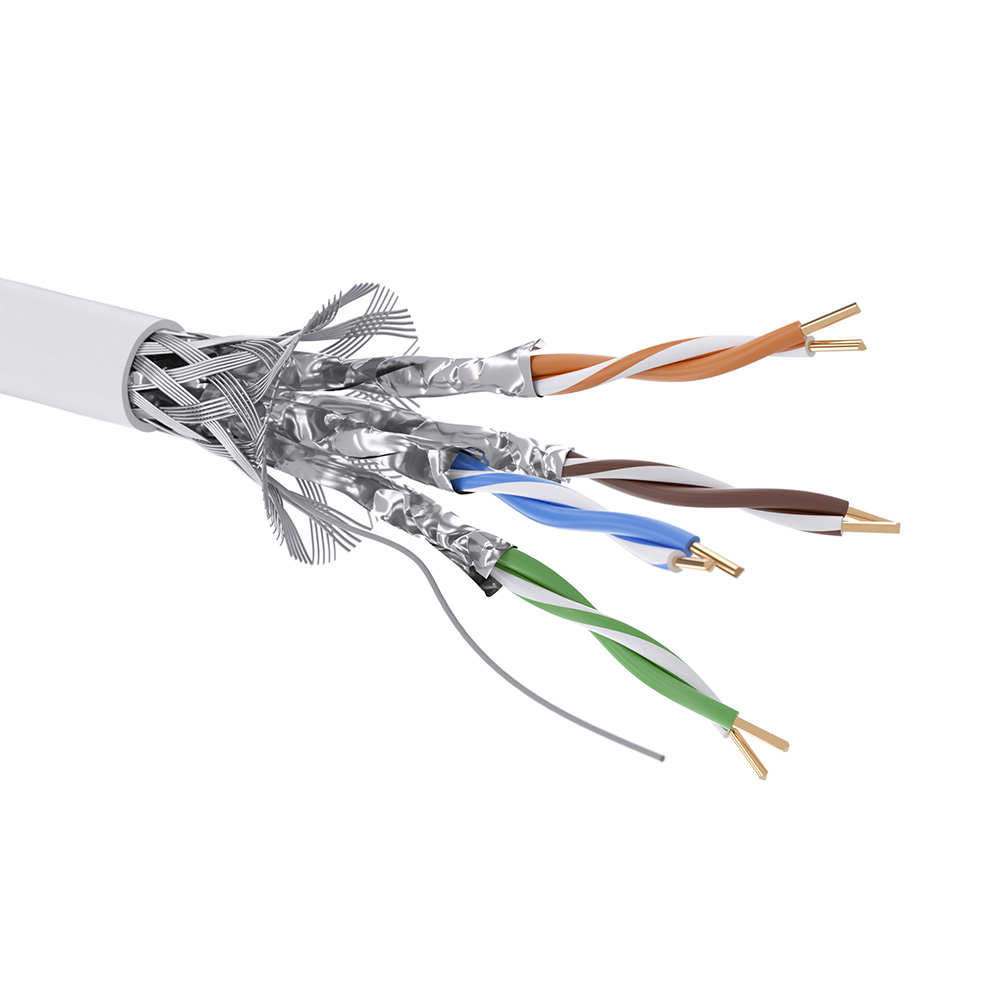

Information cable CAT 6, S/FTP, HF, box 305м, white

Code: RN6SFA01WH
Nominal cross section conductor, mm² 0.257
Core insulation V001108 - ПОЛИОЛЕФИН
Core identification Colour
Stranding element Pairs
Colour outer sheath White
Category 6
Diameter conductor, mm 0.573
Conductor material Cu, bare
Screen over stranding element Braiding
Screen over stranding Foil
Material outer sheath Other
Conductor category Class 1 = solid
Operating temperature, flexible, °C -5…70
Operating temperature, fix, °C -25…70
AWG-size 23
Number of cores 8
Halogen free (acc. EN 50267-2-2) Yes
Outer diameter approx., mm 7.8
Low smoke (acc. EN 61034-2) Yes
Type of conductor. Solid conductor
Conductor material. Cu
Number of cores. 8
Cable make-up (type) S/FTP (SF/UTP)
Fire protection HF
Frequency characteristic, Hz 400 MHz
Type of mounting Indoor
