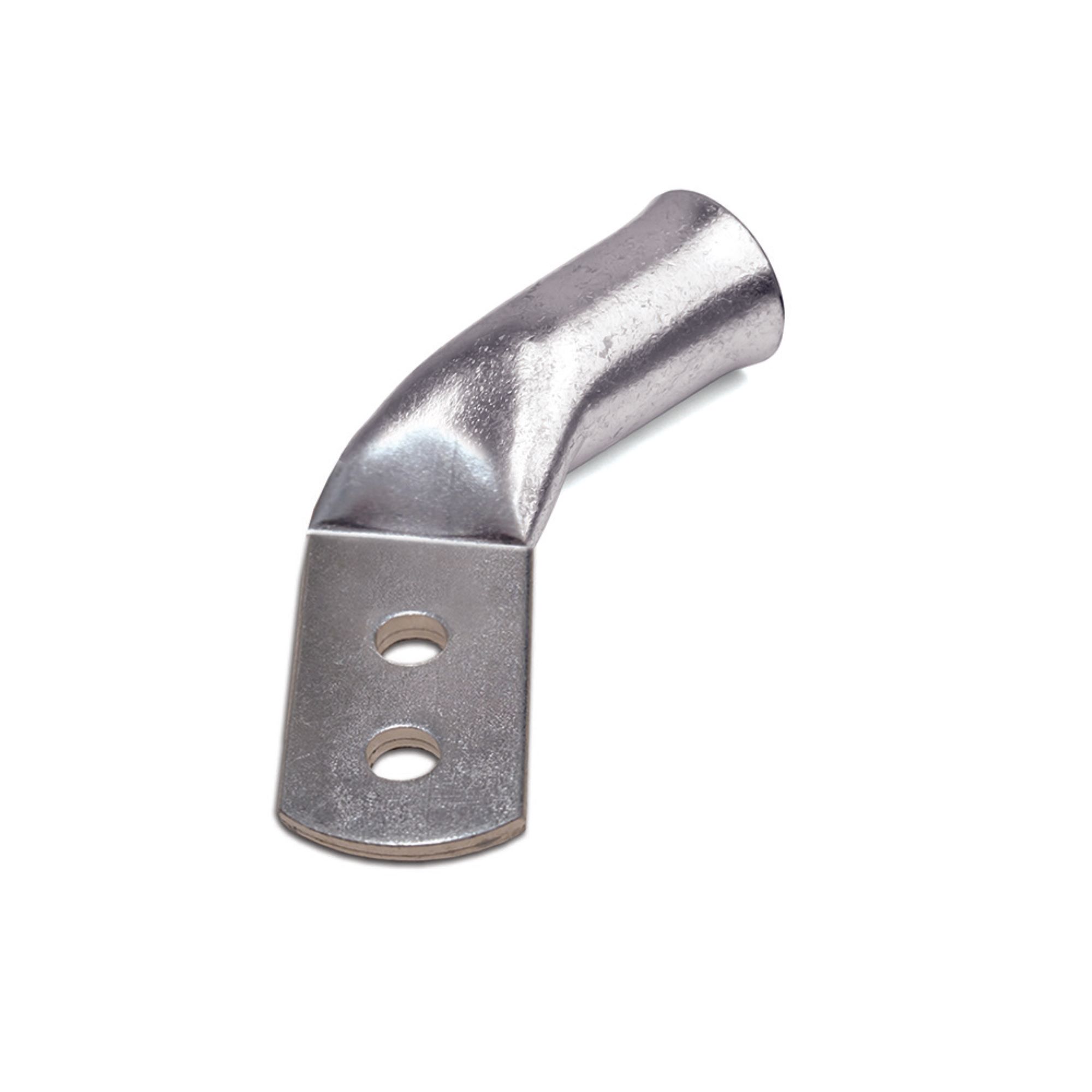

Tip under the soldering, sheet bent 300(30P) sq. mm the screw of 2x12 mm
Code:
2Q12DH30CR
Code:
2Q12DH30CR
| Insulated | Yes |
| Surface protection | Tinned |
| Nominal cross section, mm² | 300 |
| Connecting angle | 180° (horizontal) |
| Flange shape | Special shape |
| Material | Copper |
| Bolt dimension (metric) | 12 |
| With sight-hole | Yes |
| Slender flange model | Yes |
| Insulation | Not isolated |
| Flange shape | With two holes |
| Product type | Non insulated terminals |
| nominal cross section | 300 mm² |
| Hole distance | 30 mm |
