nominal cross section

Bolt dimension (metric)

Main
Products
System of an electrical wiring and marking
Cable terminals -"Quadro"
Non insulated terminals

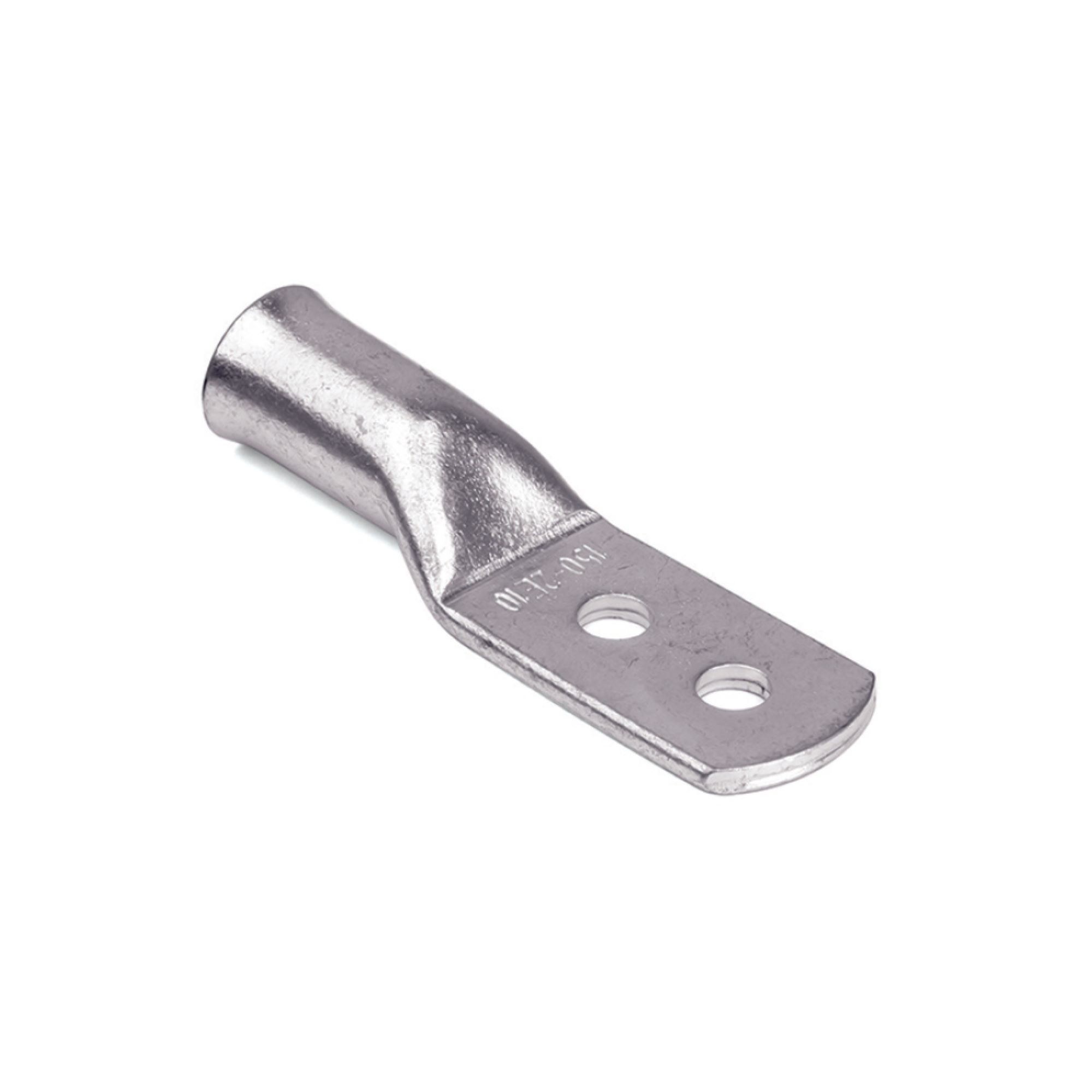

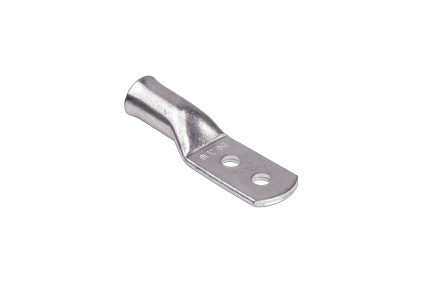

Two-hole ring lugs

Two-hole ring lugs

Code

Name

Tip under the soldering, sheet bent 300(30) sq. mm the screw of 2x12 mm

Tip under the soldering, sheet bent 240(23) sq. mm the screw of 2x12 mm

Tip under the soldering, sheet bent 240(30) sq. mm the screw of 2x12 mm

Tip under the soldering, sheet bent 240(30l) sq. mm the screw of 2x12 mm

Tip under the soldering, sheet bent 240(30P) sq. mm the screw of 2x12 mm

Tip under the soldering, sheet bent 300(30P) sq. mm the screw of 2x12 mm

Tip under the soldering, sheet bent 185(30) sq. mm the screw of 2x12 mm

Tip under the soldering, sheet bent 185(30) sq. mm the screw of 2x10 mm

Tip under the soldering, sheet bent 185(23) sq. mm the screw of 2x10 mm

Tip under the soldering, sheet bent 150(23) sq. mm the screw of 2x10 mm

1
2
