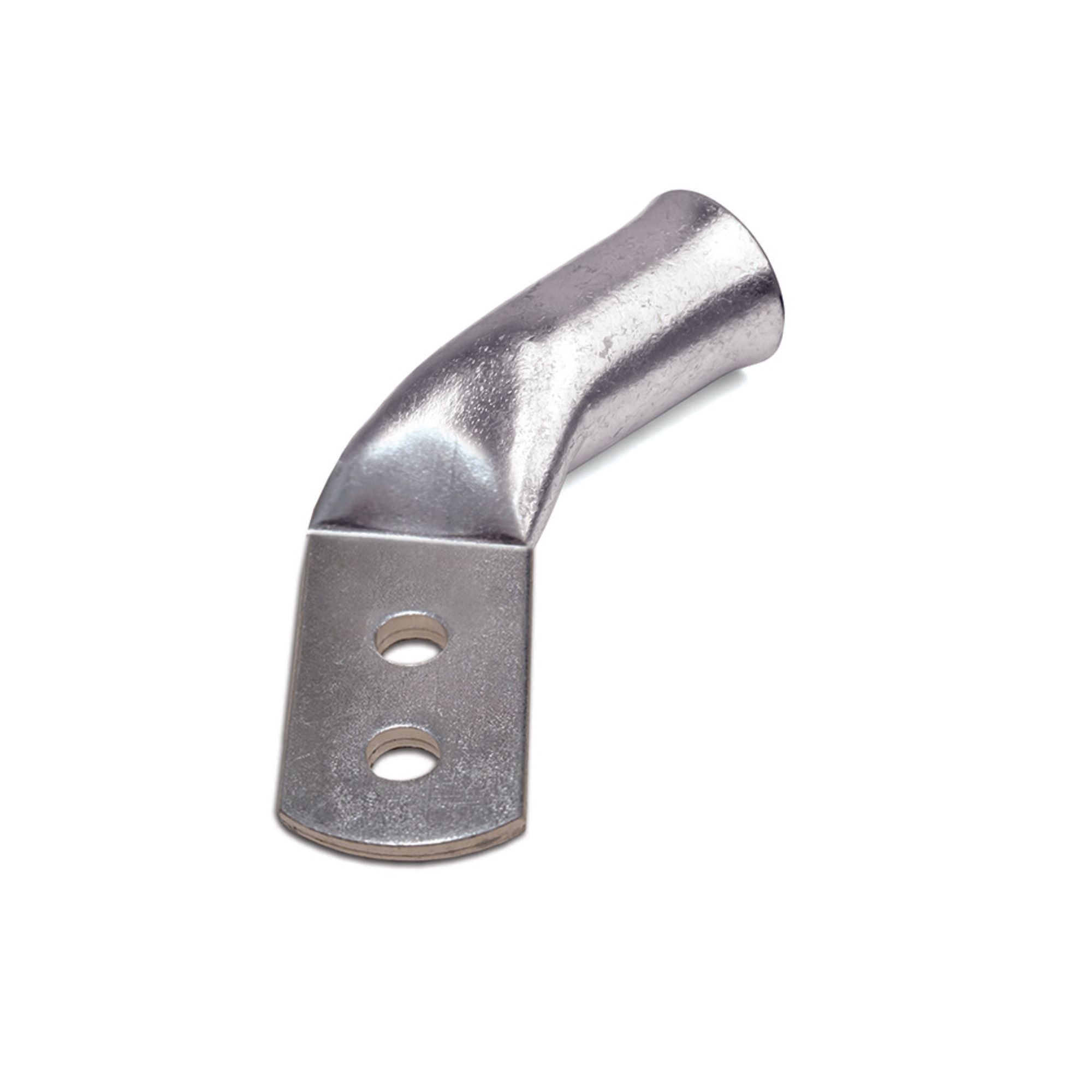

Tip under the soldering, sheet bent 240(30P) sq. mm the screw of 2x12 mm

Code: 2P12DH30CR
Tip under the soldering, sheet bent 240(30P) sq. mm the screw of 2x12 mm
Tip under the soldering, sheet bent 240(30P) sq. mm the screw of 2x12 mm
  • To ask a question
Insulated No
Surface protection Tinned
Nominal cross section, mm² 240
Connecting angle Straight
Flange shape Ring shape
Material Copper
Bolt dimension (metric) 12
With sight-hole No
Slender flange model No
Insulation Not isolated
Flange shape With two holes
Product type Non insulated terminals
nominal cross section 240 mm²
Drawings
Seria Name Eplan
Cable terminals -"Quadro"
The System "Quadro"
RAR
27.23 Mb
Certificates
Name Document
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals_1
PDF
2.65 MB
Declaration of conformity for pre-insulated spade terminals
PDF
1.89 MB
