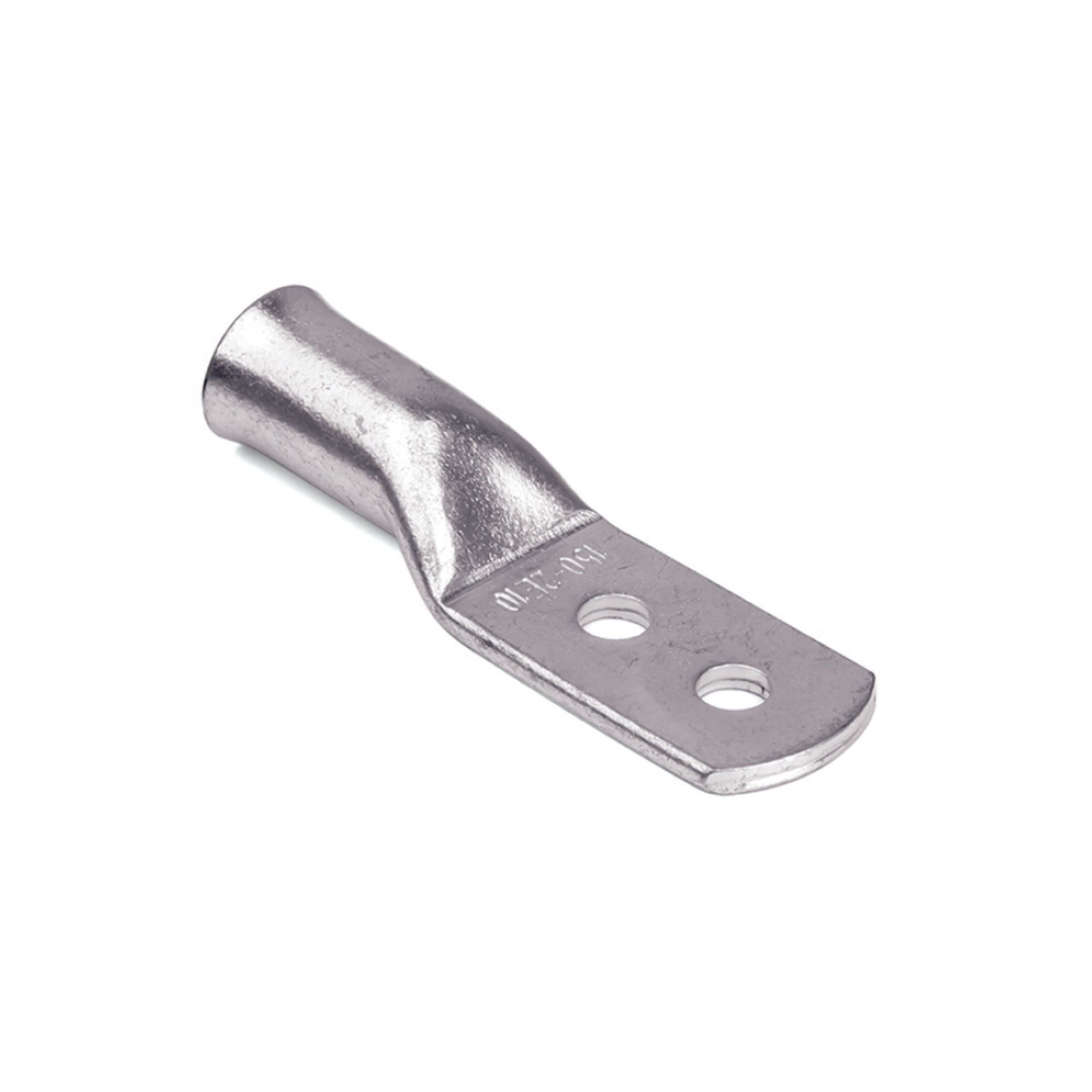

Tip under the soldering, sheet bent 185(30) sq. mm the screw of 2x12 mm

Code: 2O12DH30
Tip under the soldering, sheet bent 185(30) sq. mm the screw of 2x12 mm
  • To ask a question
Insulated No
Surface protection Tinned
Nominal cross section, mm² 185
Connecting angle Straight
Flange shape Special shape
Material Copper
Bolt dimension (metric) 12
With sight-hole No
Slender flange model No
Insulation Not isolated
Flange shape With two holes
Product type Non insulated terminals
nominal cross section 185 mm²
Drawings
Seria Name Eplan
Cable terminals -"Quadro"
