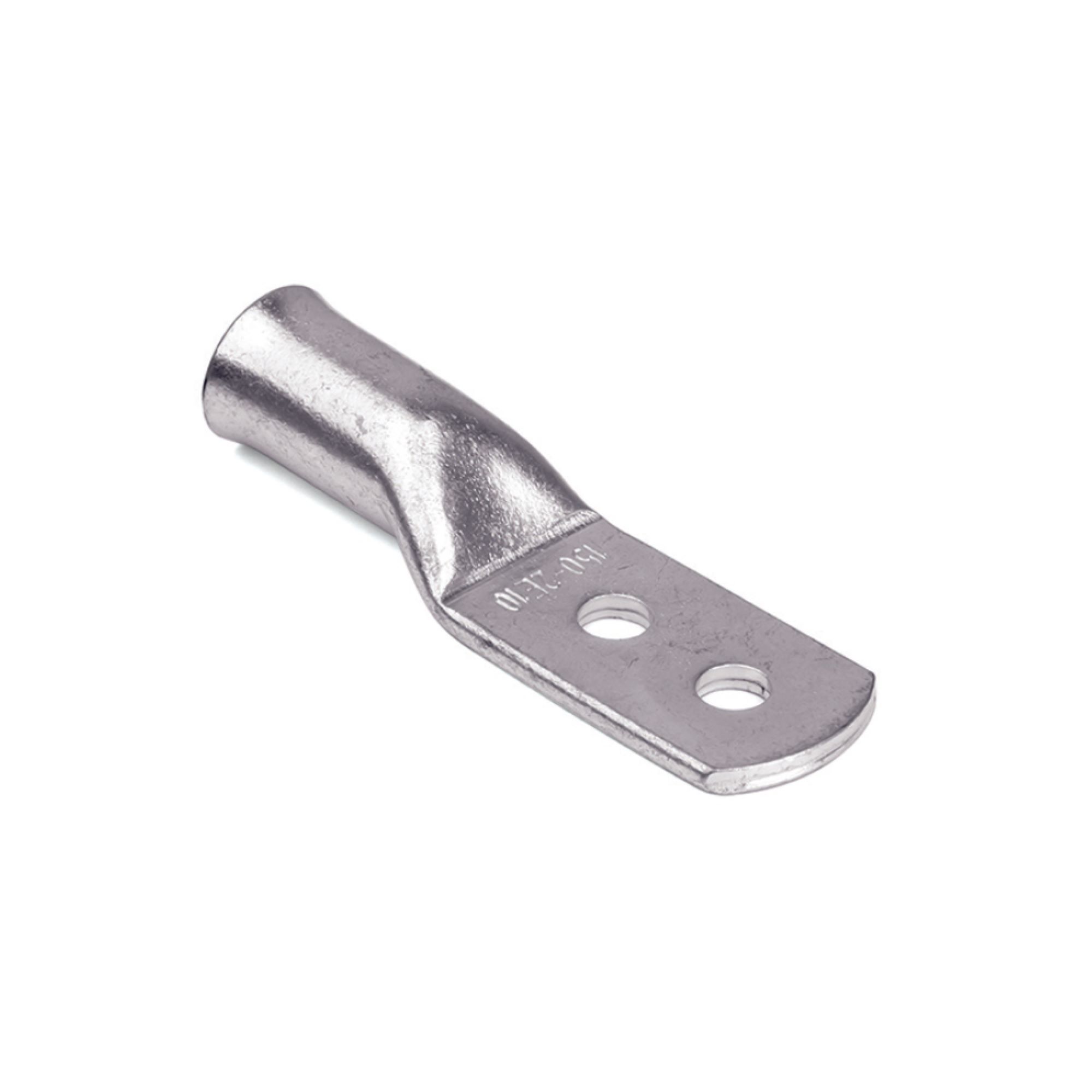

Tip under the soldering, sheet bent 185(30) sq. mm the screw of 2x10 mm

Code: 2O10DH30

Tip under the soldering, sheet bent 185(30) sq. mm the screw of 2x10 mm

Code: 2O10DH30
Insulated Yes
Surface protection Tinned
Nominal cross section, mm² 185
Connecting angle 180° (horizontal)
Flange shape Special shape
Material Copper
Bolt dimension (metric) 10
With sight-hole Yes
Slender flange model Yes
Insulation Not isolated
Flange shape With two holes
Product type Non insulated terminals
nominal cross section 185 mm²
Drawings
Seria Name Eplan
Cable terminals -"Quadro"
