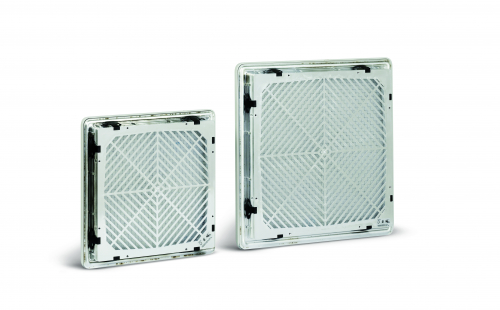

Ventilation grille with filter EMC 106,5x106,5 mm, IP54
Code:
R5KF081
Ventilation grille with filter EMC 106,5x106,5 mm, IP54
Code:
R5KF081
Removed from the product range
| Mounting method | Snap mounting |
| Width, mm | 106.5 |
| Height, mm | 106.5 |
| Degree of protection (IP) | IP54 |
| For max. number of fans | 1 |
| With built-in filter | Да |
| Material | Plastic |
| Surface finishing | Brushed/grinded |
| Product type | Ventilation grille |
| Mounting type | Wall-mounted |
| Size | Size 08, 106,5 x 106,5 |
| EMC-version | Yes |
| External dimensions (W x H x D), mm | 106,5 x 106,5 x 23,2 |
| Maximum installation depth, mm | 16.5 |
| Required mounting cut-out (W x H), mm | 91,5 x 91,5 |
| Degree of protection | IP54 |
| Optionally degree of protection | IP55, IP56 |
| Material | ABS plastic, UL94V0 |
| Operating temperature range, ˚C | -40…+70 |
| Storage temperature range, ˚C | -40…+70 |
| Filter class | G3 |
| Color | RAL 7035, light grey |
| Weight, kg | 0.1 |
