| Mounting method | Snap mounting |
| Width, mm | 120 |
| Height, mm | 120 |
| Suitable for enclosure building width, mm | 93 |
| Suitable for enclosure building depth, mm | 28 |
| Suitable for 19 inch rack mounting | No |
| For max. number of fans | 1 |
| With built-in filter | Yes |
| Material | Plastic |
| Degree of protection (IP) | IP54 |
| Surface finishing | Brushed/grinded |
| Suitable for 10 inch mounting | No |

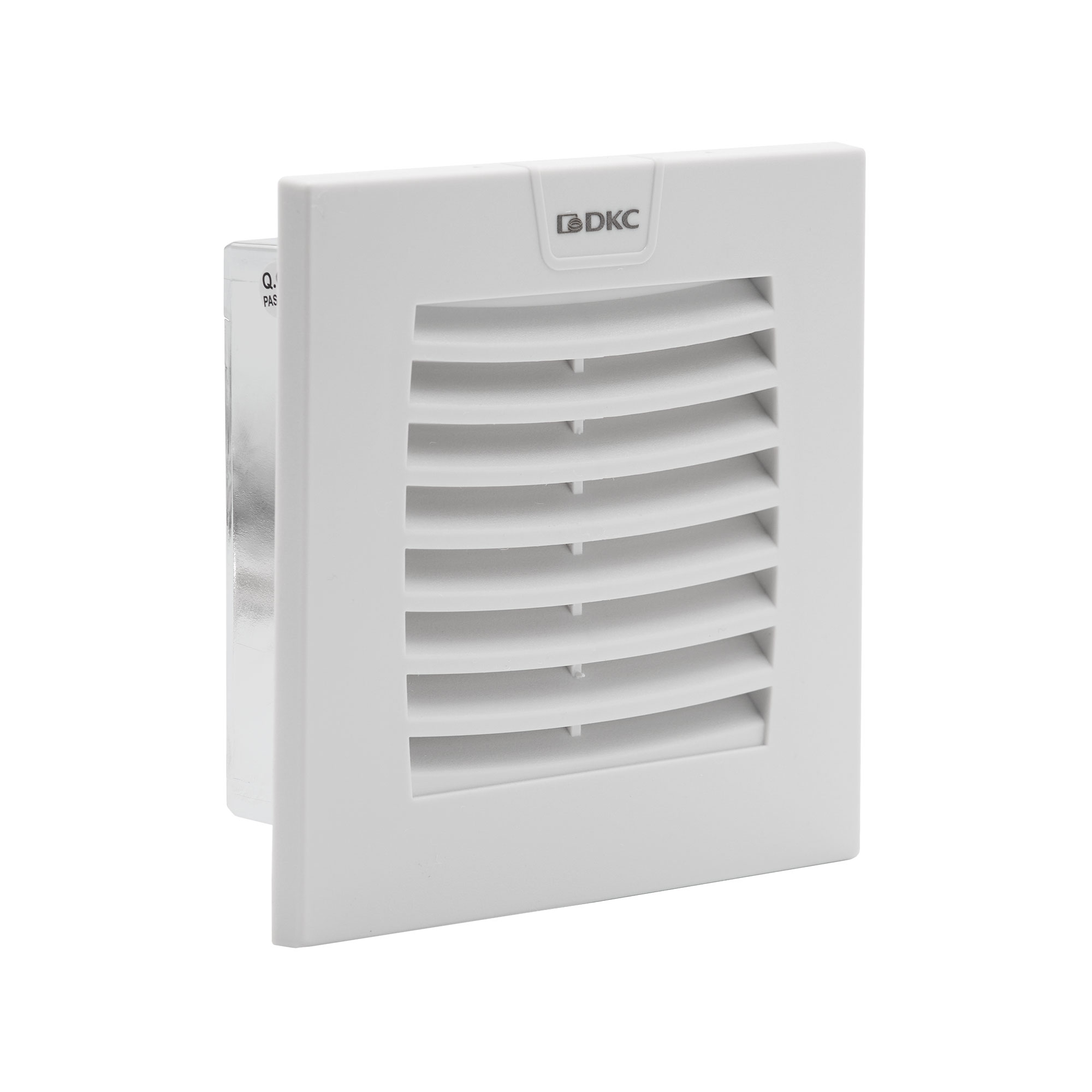

| Product type | Ventilation grille |
| Mounting type | Wall-mounted |
| EMC-version | Yes |

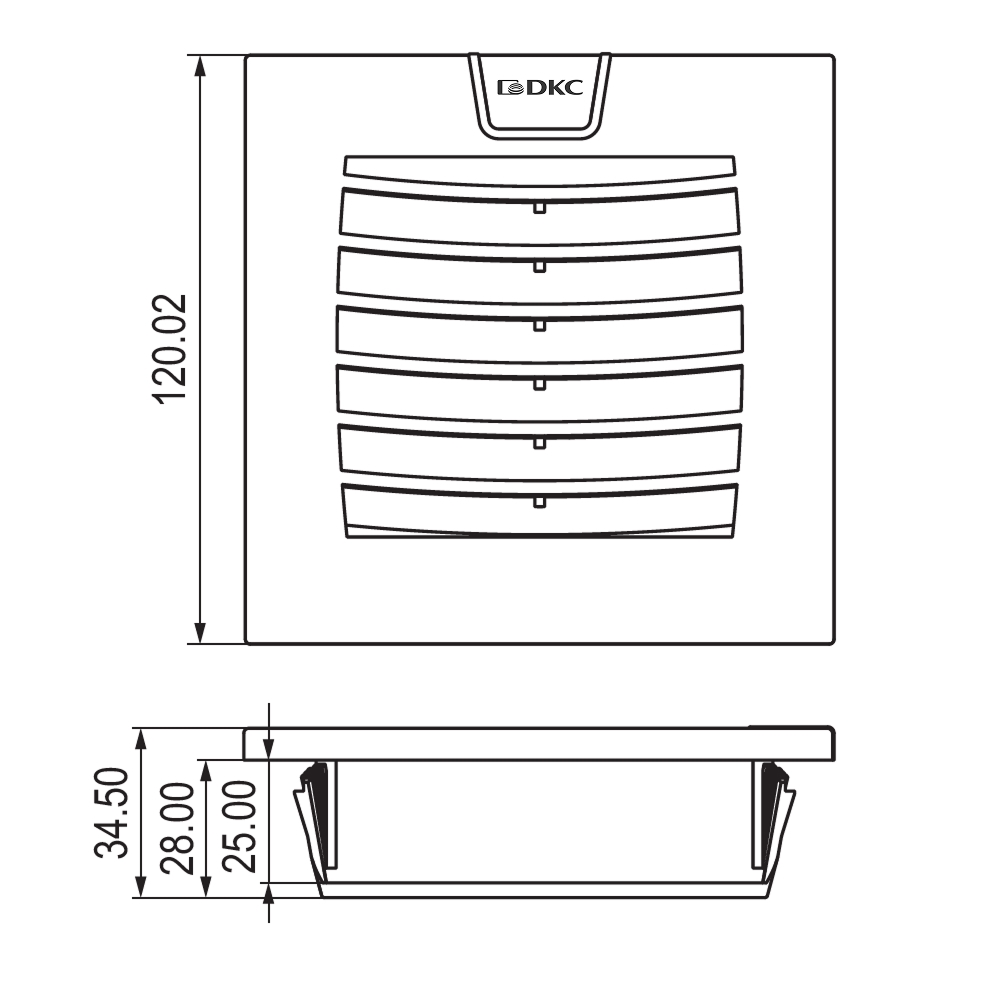

| External dimensions (W x H x D) | 120 x 120 x 28 mm |

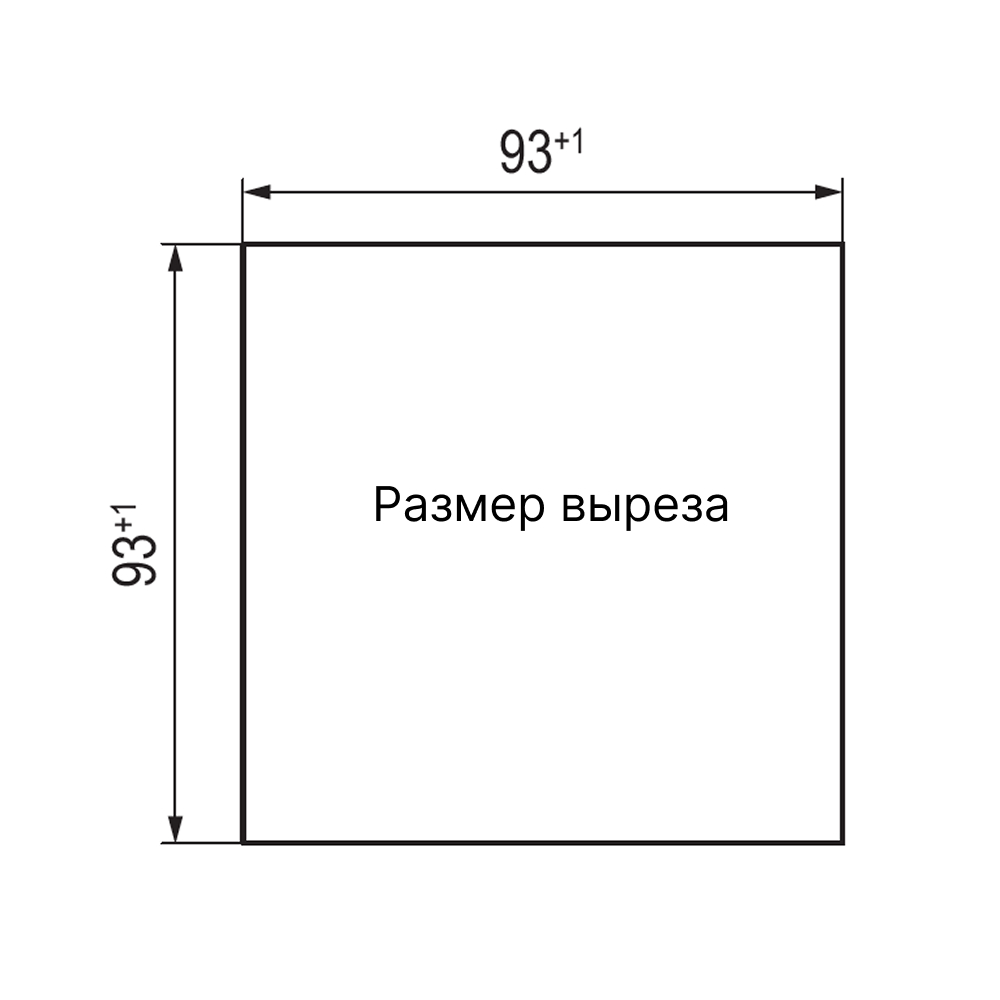

| Required mounting cut-out (W x H) | 93 x 93 mm |
| Degree of protection | IP54 |
| Material | ABS plastic |
| Operating temperature range | –25...+65 ˚C |
| Storage temperature range | –40...+70 ˚C |
| Humidity range | Not more than 90 % (without condensation) |
| Service life (MTBF) | 50000 h |
| Filter class | G4 |
| Color | RAL 7035, light grey |
