Fan with filter RV 160/190 m3/h, 115 V, 252x252 mm, IP54, RAL9005
Code: R5RV15115B
Fan with filter RV 160/190 m3/h, 115 V, 252x252 mm, IP54, RAL9005
Code: R5RV15115B
Mounting method | Snap mounting |
Colour | Black |
Width, mm | 252 |
Height, mm | 252 |
Depth, mm | 124 |
RAL-number | 7035 |
Voltage type | AC |
Suitable for 19 inch rack mounting | Yes |
Number of fans | 1 |
EMC-version | Yes |
Degree of protection (IP) | IP54 |
With protective cover | Yes |
With filter | Yes |
Rated power, W | 39 |
Roof ventilator | Yes |
Built as slide-in ventilator | Yes |
Volume flow, freeblowing, m³/h | 160 |
Air circulator | Yes |
Wall build in | Yes |
Noise emission, dB(A) | 52 |
Product type | Fan |
Mounting type | Wall-mounted |
Rated operating voltage V, ~, Hz | 115 V, 1 p, 50/60 Hz |
Unimpeded air flow, m3/h | 160 |
Size | Size 15, 252 x 252 |
EMC-version | No |
Code of ventilation grille | R5RF15B |

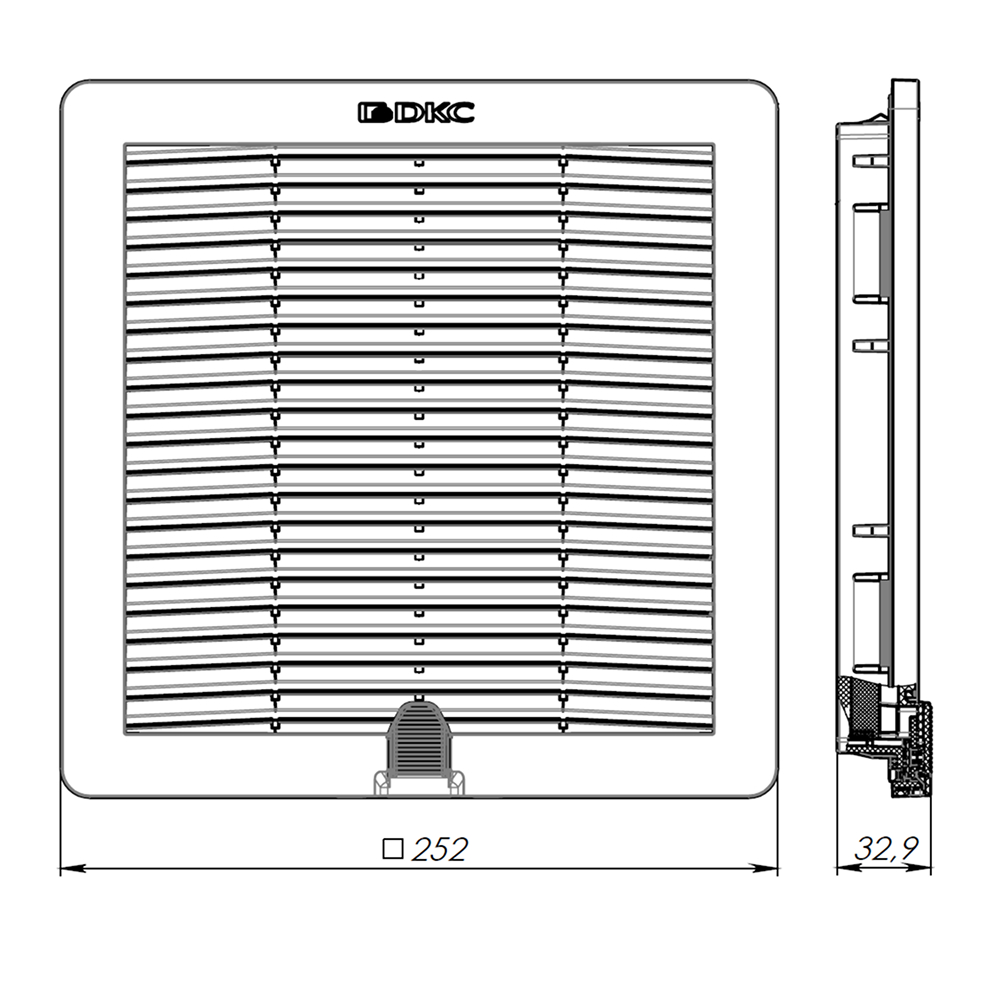

External dimensions (W x H x D), mm | 252 x 252 x 124 |
Maximum installation depth, mm | 109.8 |
Required mounting cut-out (W x H), mm | 224 x 224 |
Degree of protection | IP54 |
Optionally degree of protection | IP55, IP56 |
Material | ABS plastic, PC, UL94V0 |
Operating temperature range, ˚C | -10…+55 |
Storage temperature range, ˚C | -40…+70 |
Noise level, dB(A) | 52 |
Rated current, A | 0.59 |
Rated power consumption, W | 39 |
Maximum static pressure, Pa | 115 |
Service life (MTBF), h | 50000 |
Filter class | G3 |
Color | RAL 9005, black |
Weight, kg | 1.5 |
