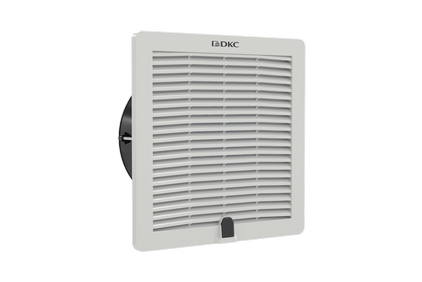

Вентиляторы и вентиляционные решетки

Code	Name
R5RF08	The ventilation grille with filter, 112 x 112 mm
R5RF12	The ventilation grille with filter, 150 x 150 mm
R5RF13	The ventilation grille with filter, 205 x 205 mm
R5RF15	The ventilation grille with filter, 252 x 252 mm
R5RF20	The ventilation grille with filter, 325 x 325 mm
R5RV08230	Fan with filter, 10/12 m3/hr, 230V
R5RV12230	Fan with filter, 44/46 m3/hr, 230V
R5RV13230	Fan with filter, 100/105 m3/hr, 230V
R5RV15230	Fan with filter, 160/190 m3/hr, 230V
R5RV20230	Fan with filter, 560/600 m3/hr, 230V

Enclosures and accessories

Seria	Name	DWG	DWG (dynamic blocks)
RAMklima - climate control system	Heaters and thermostats (dynamic blocks)		Link
	Vetilyatsionnye grilles and fans (dynamic blocks)		Link
	Ventilation grille with filter, 150 x 150 mm	Link
	Ventilation grille with filter, 250 x 250 mm	Link
	Ventilation grille with filter, 325 x 325mm	Link
	Exhaust fan, 162/187 m3/h, 230 V	Link
	Fan c grille and filter, 12/15 m3/h, 115V	Link
	Fan c grille and filter, 12/15 m3/h, 230V	Link
	Fan with grille and filter, 45/50 m3/h 115V	Link
	Ventilation grille with filter, 106,5 x 106,5 mm	Link
