Fan with filter RV 100/105 m3/h, 115 V, 205x205 mm, IP54, RAL9005
Code:
R5RV13115B
Code:
R5RV13115B
| Mounting method | Snap mounting |
| Colour | Black |
| Width, mm | 205 |
| Height, mm | 205 |
| Depth, mm | 110 |
| RAL-number | 7035 |
| Voltage type | AC |
| Suitable for 19 inch rack mounting | No |
| Number of fans | 1 |
| EMC-version | No |
| Degree of protection (IP) | IP54 |
| With protective cover | Yes |
| With filter | Yes |
| Rated power, W | 22 |
| Roof ventilator | Yes |
| Built as slide-in ventilator | Yes |
| Volume flow, freeblowing, m³/h | 100 |
| Air circulator | No |
| Wall build in | Yes |
| Noise emission, dB(A) | 45 |
| Operating voltage at AC 50 Hz, V | 115...115 |
| Operating voltage at AC 60 Hz, V | 115...115 |
| Product type | Fan |
| Mounting type | Wall-mounted |
| Rated operating voltage V, ~, Hz | 115 V, 1 p, 50/60 Hz |
| Unimpeded air flow, m3/h | 100 |
| Size | Size 13, 205 x 205 |
| EMC-version | No |
| Code of ventilation grille | R5RF13B |

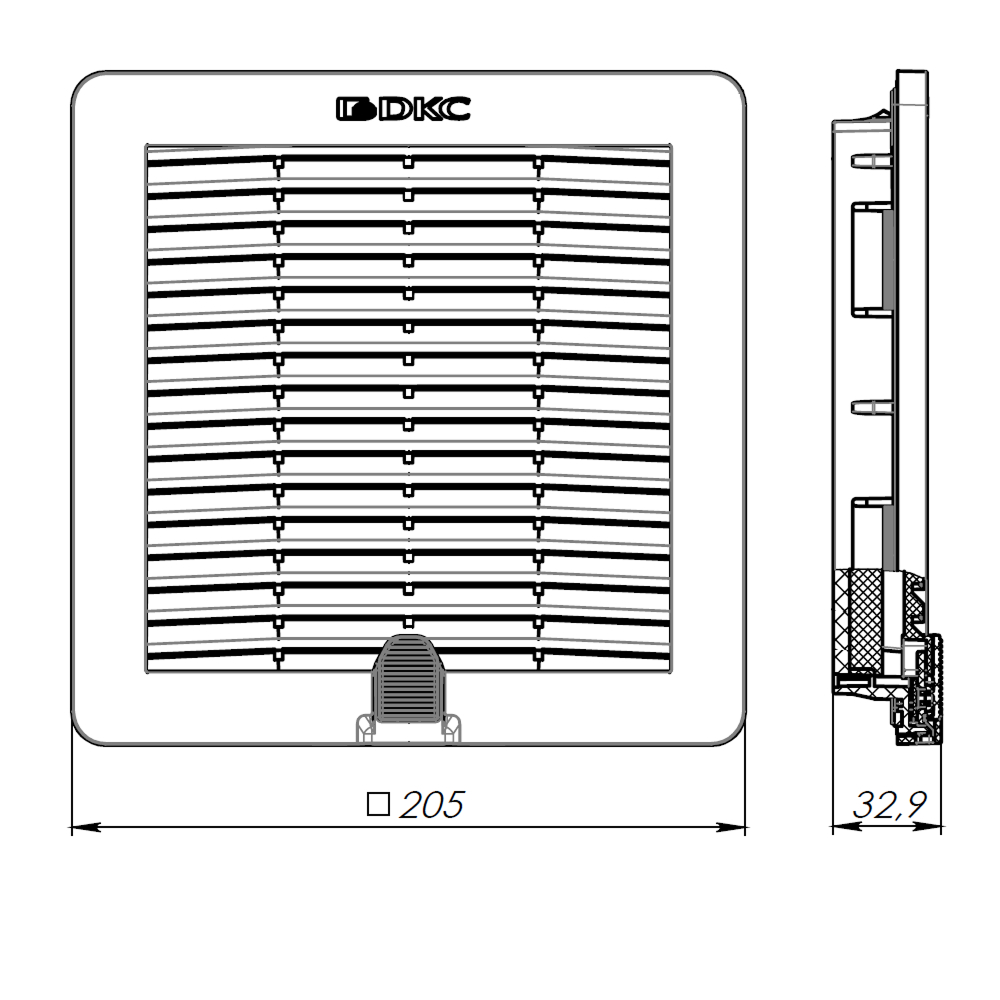

| External dimensions (W x H x D), mm | 205 x 205 x 110 |
| Maximum installation depth, mm | 96.5 |
| Required mounting cut-out (W x H), mm | 177,5 x 177,5 |
| Degree of protection | IP54 |
| Optionally degree of protection | IP55, IP56 |
| Material | ABS plastic, PC, UL94V0 |
| Operating temperature range, ˚C | -10…+55 |
| Storage temperature range, ˚C | -40…+70 |
| Noise level, dB(A) | 45 |
| Rated current, A | 0.26 |
| Rated power consumption, W | 22 |
| Maximum static pressure, Pa | 85 |
| Service life (MTBF), h | 50000 |
| Filter class | G3 |
| Color | RAL 9005, black |
| Weight, kg | 1.2 |
