Ventilation grille with filter RF 205x205 mm, IP54
Code: R5RF13
Ventilation grille with filter RF 205x205 mm, IP54
Code: R5RF13
Width, mm | 205 |
Height, mm | 205 |
Degree of protection (IP) | IP54 |
Mounting method | Snap mounting |
For max. number of fans | 1 |
With built-in filter | Yes |
Material | Plastic |
Surface finishing | Brushed/grinded |
Product type | Ventilation grille |
Mounting type | Wall-mounted |
Size | Size 13, 205 x 205 |
EMC-version | No |
External dimensions (W x H x D), mm | 205 x 205 |
Required mounting cut-out (W x H), mm | 177,5 x 177,5 |
Degree of protection | IP54 |
Optionally degree of protection | IP55, IP56 |
Material | ABS plastic, UL94V0 |
Operating temperature range, ˚C | -40…+70 |
Storage temperature range, ˚C | -40…+70 |
Filter class | G3 |
Color | RAL 7035, light grey |
Weight, kg | 0.32 |
Accessories
Analogs

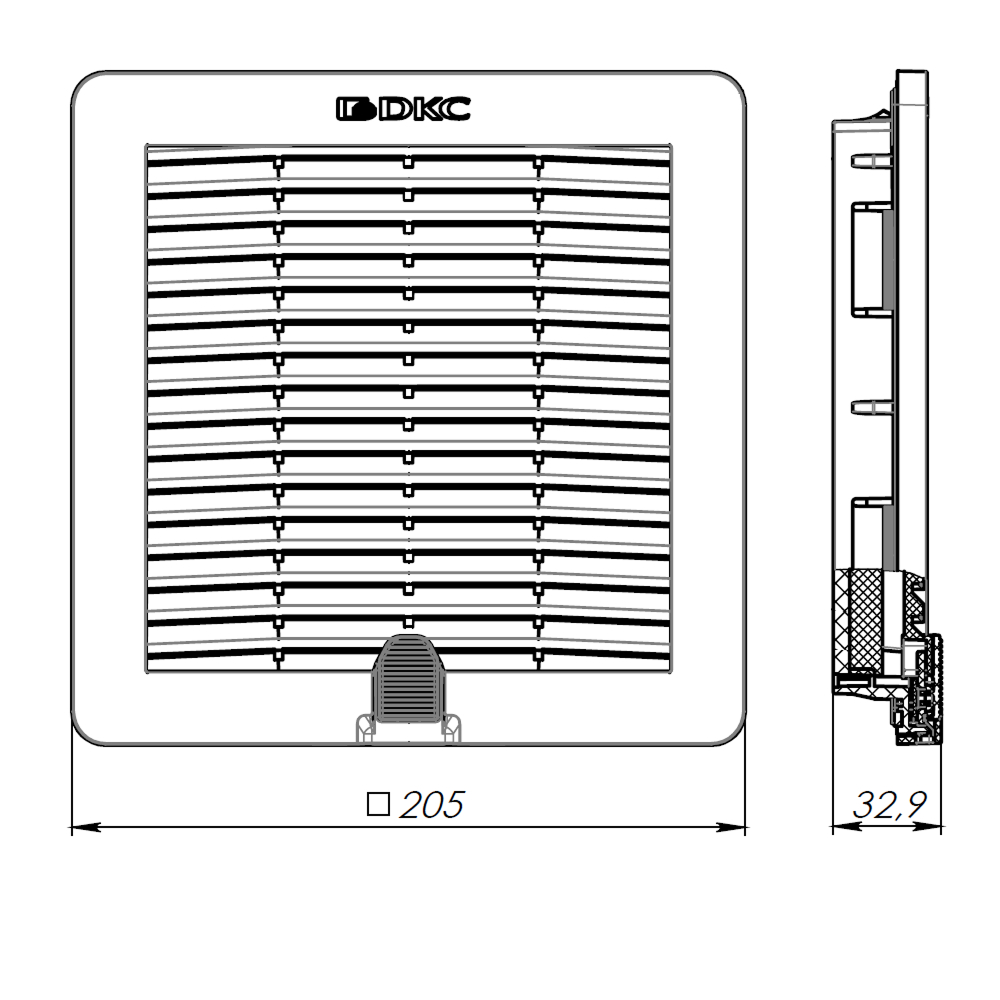

Drawings
Seria | Name | DWG (dynamic.) | DWG | STEP | Eplan |
---|---|---|---|---|---|
