Ventilation grille with filter RF 150x150 mm, IP54
Code: R5RF12
Ventilation grille with filter RF 150x150 mm, IP54
Code: R5RF12
| Width, mm | 150 |
| Height, mm | 150 |
| Degree of protection (IP) | IP54 |
| Mounting method | Snap mounting |
| For max. number of fans | 1 |
| With built-in filter | Yes |
| Material | Plastic |
| Surface finishing | Brushed/grinded |
| Product type | Ventilation grille |
| Mounting type | Wall-mounted |
| Size | Size 12, 150 x 150 |
| EMC-version | No |
| External dimensions (W x H x D), mm | 150 x 150 |
| Required mounting cut-out (W x H), mm | 124,5 x 124,5 |
| Degree of protection | IP54 |
| Optionally degree of protection | IP55, IP56 |
| Material | ABS plastic, UL94V0 |
| Operating temperature range, ˚C | -40…+70 |
| Storage temperature range, ˚C | -40…+70 |
| Filter class | G3 |
| Color | RAL 7035, light grey |
| Weight, kg | 0.15 |
Accessories
Analogs

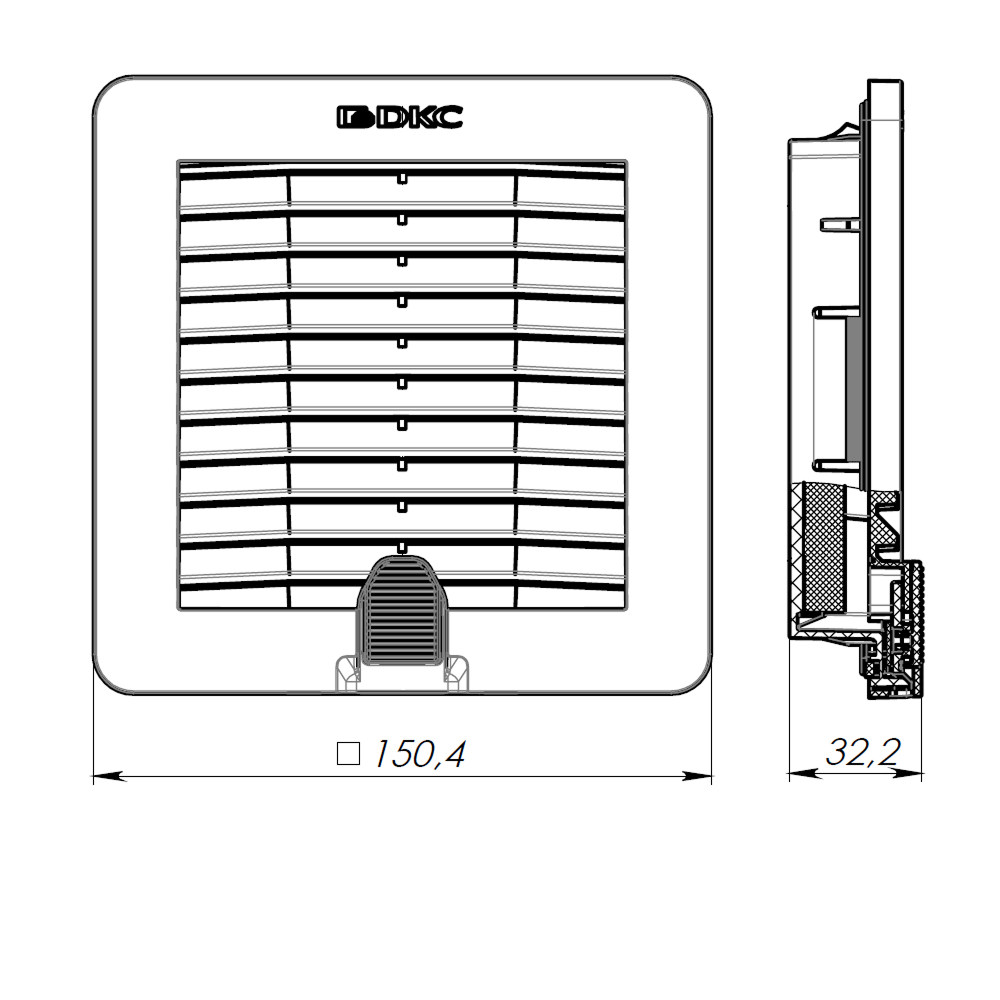

Drawings
| Seria | Name | DWG (dynamic.) | DWG | STEP | Eplan |
|---|---|---|---|---|---|
|
