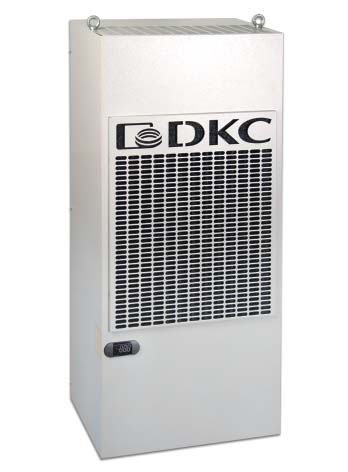

Wall-mounted conditioner 1500 W, 400 V, 2 ph, 1050х400х245 mm

Code: R5KLM15042LT

Wall-mounted conditioner 1500 W, 400 V, 2 ph, 1050х400х245 mm

Code: R5KLM15042LT
Width, mm 400
Model Air/air
Height, mm 1050
Depth, mm 245
With temperature control Yes
Function master/slave Yes
Operating voltage at AC 50 Hz, V 400...400
Operating voltage at AC 60 Hz, V 400...400
Voltage type AC
With heating function Yes
Ambient temperature during operating, °C 20...55
Total cooling capacity according to EN 14511 at 35/35 °C, W 1500
Speed-regulated Yes
Product type Air conditioner
Class of cooling output, W 1500
Rated operating voltage V, ~, Hz 400 V, 2 p, 50/60 Hz
Version of cooler Indoor
Mounting type Wall-mounted
External dimensions of cooler (W x H x D), mm 400 х 1050 х 245
Temperature regulating range, ˚C +25…+40
Operating temperature range, ˚C +20…+55
Material Steel sheet
Degree of protection, internal circuit IP54
Degree of protection, external circuit IP34
Weight, kg 48
Refrigeration power DIN 3168 (L35/L35), W 1420
Refrigeration power DIN 3168 (L35/L50), W 1140
Rated power consumption (L35/L35), kW 0.66
Rated current, A 3
Protective device, A 5
Start-up current, A 16
Noise level, dB(A) 69
Coolant type R134a
Accessories
Drawings
Seria Name DWG (dynamic.) Eplan DWG STEP
