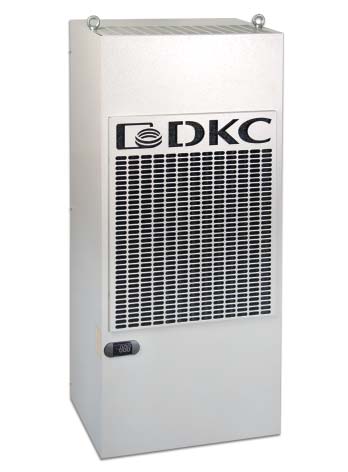

Wall-mounted conditioner 1000 W, 400V (2 phases)

Code: R5KLM10042LT
Width, mm 400
Model Air/air
Height, mm 1050
Depth, mm 245
With temperature control Yes
Function master/slave No
With heater function No
Operating voltage at AC 50 Hz, V 400
Operating voltage at AC 60 Hz, V 400
Voltage type AC
With heating function No
Ambient temperature during operating +20…+50
Total cooling capacity according to EN 14511 at 35/35 C°, W 1000
Speed-regulated Yes
Product Air conditioner
Class of cooling output, W 1000
Rated operating voltage V, ~, Hz 400 V, 2 p, 50/60 Hz
Version of cooler Indoor
Mounting type Wall-mounted
External dimensions of cooler (W x H x D), mm 400 х 1050 х 245
Temperature regulating range, ˚C +30…+40
Operating temperature range, ˚C +20…+50
Material Sheet steel
Degree of protection, internal circuit IP54
Degree of protection, external circuit IP34
Weight, kg 47
Refrigeration power DIN 3168 (L35/L35), W 1020
Refrigeration power DIN 3168 (L35/L50), W 820
Rated power consumption (L35/L35), kW 0.49
Rated current, A 2.1
Protective device, A 4
Start-up current, A 13
Noise level, dB(A) 69
Coolant type R134a
Delivery package Digital thermostat, air filter, condensate evaporator, lifting eyebolts, drilling templates
Accessories
No name
Code: R5KLMCSI7
No name
Code: R5KLMFA3
No name
Code: R5KLMFP3
No name
Code: R5KLMDI2
