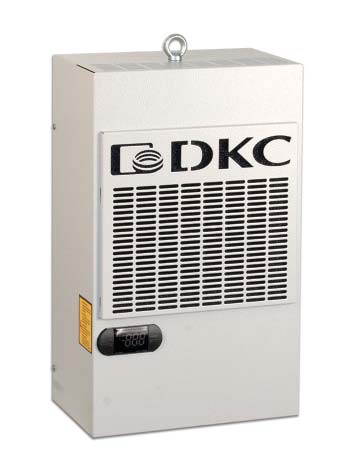

Wall-mounted conditioner 800 W, 400 V, 2 ph, 630х280х278 mm

Code: R5KLM08042LT

Wall-mounted conditioner 800 W, 400 V, 2 ph, 630х280х278 mm

Code: R5KLM08042LT
Width, mm 280
Model Air/air
Height, mm 630
Depth, mm 278
With temperature control Yes
Function master/slave Yes
Operating voltage at AC 50 Hz, V 400...400
Operating voltage at AC 60 Hz, V 400...400
Voltage type AC
With heating function Yes
Ambient temperature during operating, °C 20...55
Total cooling capacity according to EN 14511 at 35/35 °C, W 800
Speed-regulated Yes
Product type Air conditioner
Class of cooling output, W 800
Rated operating voltage V, ~, Hz 400 V, 2 p, 50/60 Hz
Version of cooler Indoor
Mounting type Wall-mounted
External dimensions of cooler (W x H x D), mm 280 х 630 х 278
Temperature regulating range, ˚C +25…+40
Operating temperature range, ˚C +20…+55
Material Steel sheet
Degree of protection, internal circuit IP54
Degree of protection, external circuit IP34
Weight, kg 31
Refrigeration power DIN 3168 (L35/L35), W 830
Refrigeration power DIN 3168 (L35/L50), W 650
Rated power consumption (L35/L35), kW 0.4
Rated current, A 1.7
Protective device, A 4
Start-up current, A 9
Noise level, dB(A) 67
Coolant type R134a
Accessories
Drawings
Seria Name DWG (dynamic.) Eplan DWG STEP
