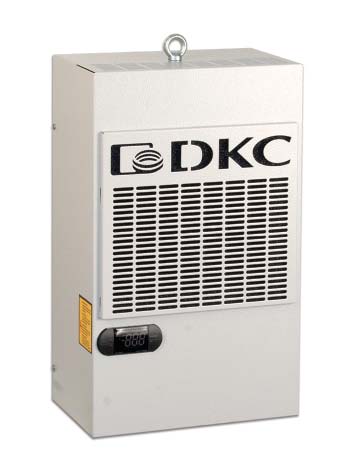

Wall-mounted conditioner 800 W, 230 V, 1 ph, 630х310х230 mm

Code: R5KLM08021LT

Wall-mounted conditioner 800 W, 230 V, 1 ph, 630х310х230 mm

Code: R5KLM08021LT
Width, mm 310
Model Air/air
Height, mm 630
Depth, mm 230
With temperature control Yes
Function master/slave Yes
Operating voltage at AC 50 Hz, V 230...230
Operating voltage at AC 60 Hz, V 230...230
Voltage type AC
With heating function Yes
Ambient temperature during operating, °C 20...55
Total cooling capacity according to EN 14511 at 35/35 °C, W 800
Speed-regulated Yes
Product type Air conditioner
Class of cooling output, W 800
Rated operating voltage V, ~, Hz 230 V, 1 p, 50/60 Hz
Version of cooler Indoor
Mounting type Wall-mounted
External dimensions of cooler (W x H x D), mm 310 х 630 х 230
Temperature regulating range, ˚C +25…+40
Operating temperature range, ˚C +20…+55
Material Steel sheet
Degree of protection, internal circuit IP54
Degree of protection, external circuit IP34
Weight, kg 28
Refrigeration power DIN 3168 (L35/L35), W 860
Refrigeration power DIN 3168 (L35/L50), W 690
Rated power consumption (L35/L35), kW 0.4
Rated current, A 2.9
Protective device, A 6
Start-up current, A 17
Noise level, dB(A) 67
Coolant type R134a
Accessories
Drawings
Seria Name DWG (dynamic.) Eplan DWG STEP
