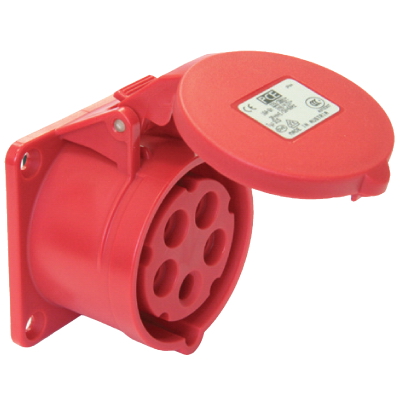

Flanged socket straight IP44 16A 3P+E 400V
Code: DISF040164
Flanged socket straight IP44 16A 3P+E 400V
Code: DISF040164
Removed from the product range
Number of poles | 4 |
Material | Plastic |
IEC-amperage, A | 16 |
Degree of protection (IP) | IP44 |
Military model | No |
Clock hour position, h | 6 |
Identification colour | Red |
Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
Flange size vertical, mm | 70 |
Flange size horizontal, mm | 70 |
Angle of plug | Angled |
Connection system | Screwed terminal |
Color | gray |
Material of case | Ployamide |
Ingress Protection rating, IP | IP44 |
Temperature of operation, °C | -25 - +80 |
Product type | Flush-mounting socket |
Voltage | 400V |
