| Number of poles | 4 |
| Material | Plastic |
| IEC-amperage, A | 16 |
| Degree of protection (IP) | IP44 |
| Military model | No |
| Clock hour position, h | 6 |
| Identification colour | Red |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Flange size vertical, mm | 75 |
| Flange size horizontal, mm | 75 |
| Angle of plug | Straight |
| Connection system | Screwed terminal |
| Contact less detection of the sense of rotation | No |
| For heavy conditions (in accordance with VDE) | No |
| Phase inverter | No |
| Empty locations on mounting rail | No |
| Number of height units | 1 |
| With earth leakage switch | No |
| Total number of groups | 1 |
| Width of device | 75 |
| Height of device | 75 |
| Depth of device | 77 |
| Height, mm | 75 |
| Width, mm | 75 |
| Temperature of operation, °C | 60 |
| Shock resistance, J | 5 |
| Depth, mm | 51 |

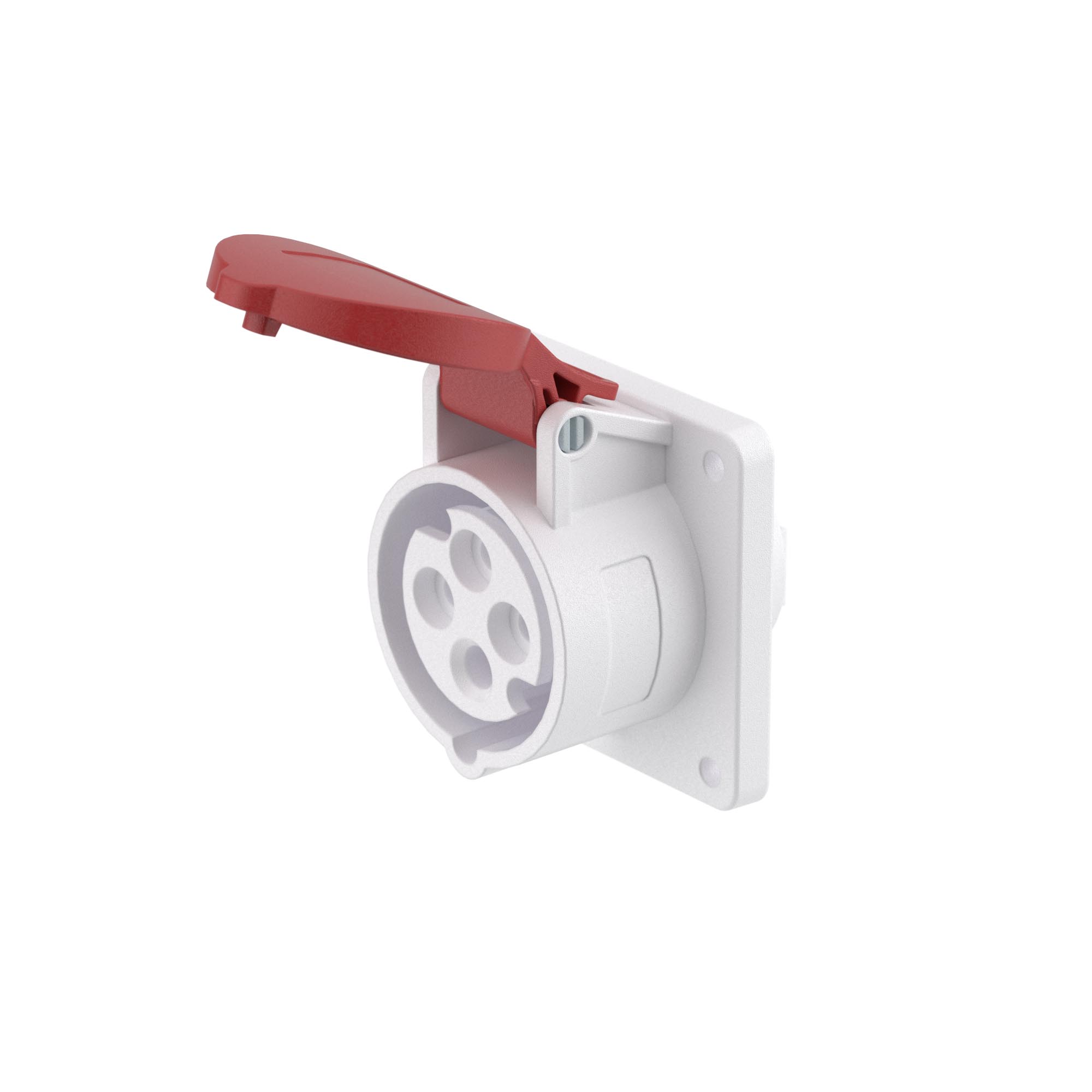

| Product type | Flush-mounting socket |
| Voltage | 400V |
