| Model | Surface mounted (plaster) |
| Number of poles | 3 |
| Material | Plastic |
| Type of fastening | External mounting |
| IEC-amperage, A | 16 |
| Degree of protection (IP) | IP44 |
| Military model | No |
| Identification colour | Blue |
| Voltage according to EN 60309-2 | 230 V (50+60 Hz) blue |
| Connection system | Screwed terminal |
| Flange size vertical | 70 |
| Flange size horizontal | 70 |
| Color | gray |
| Material of case | Ployamide |
| Ingress Protection rating, IP | IP44 |
| Temperature of operation, °C | -25 - +80 |

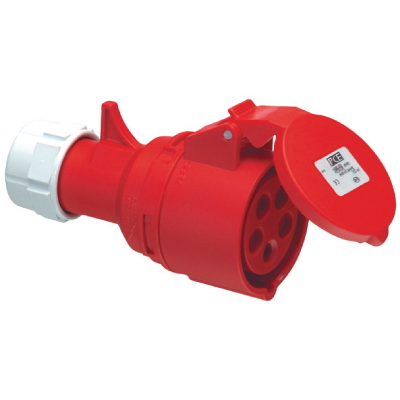

| Product type | Cable socket |
| Voltage | 230 V |
Drawings
| Seria | Name | DWG | Eplan |
|---|---|---|---|
|
