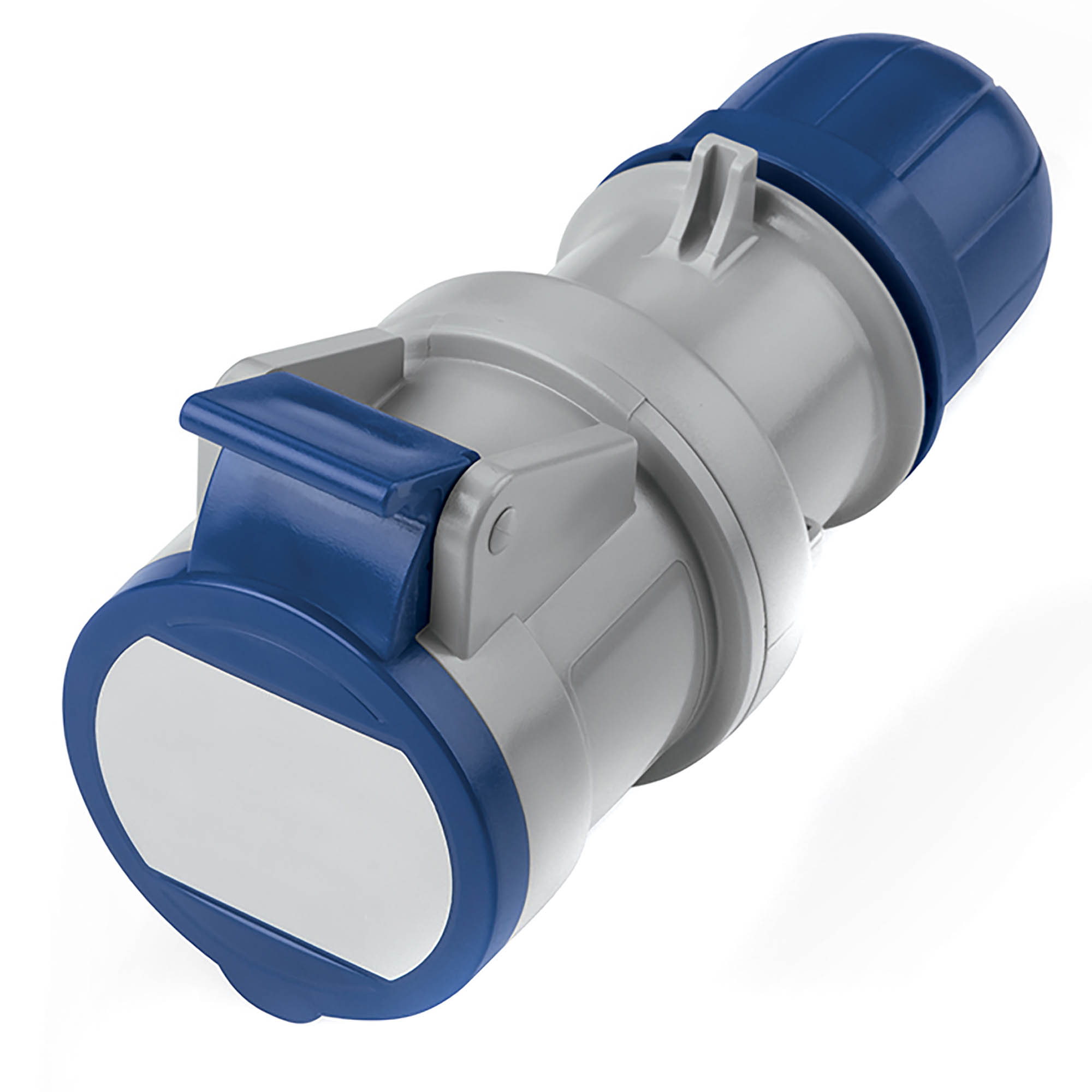

Cable socket IP44 16A 2P+E 230V

Code: DIS3131643
Temperature of operation, °C 60
Shock resistance, J 5
Model Surface mounted (plaster)
Number of poles 3
Material Plastic
Type of fastening External mounting
IEC-amperage, A 16
Degree of protection (IP) IP44
Military model No
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Right-angled
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Drill hole distance vertical 60
Flange size vertical 240
Flange size horizontal 106
Width of device 110
Height of device 75
Depth of device 65

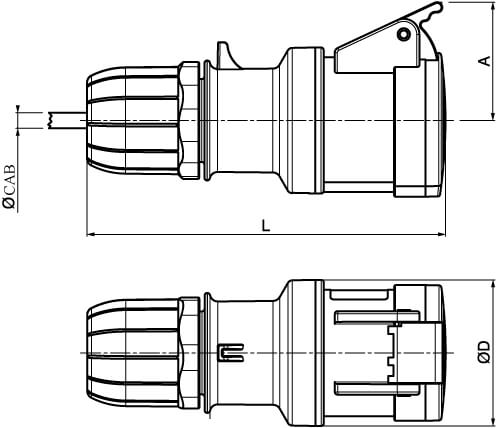

Drawings
Seria Name Eplan DWG
Quadro - industrial plugs
Quadro - industrial plugs
