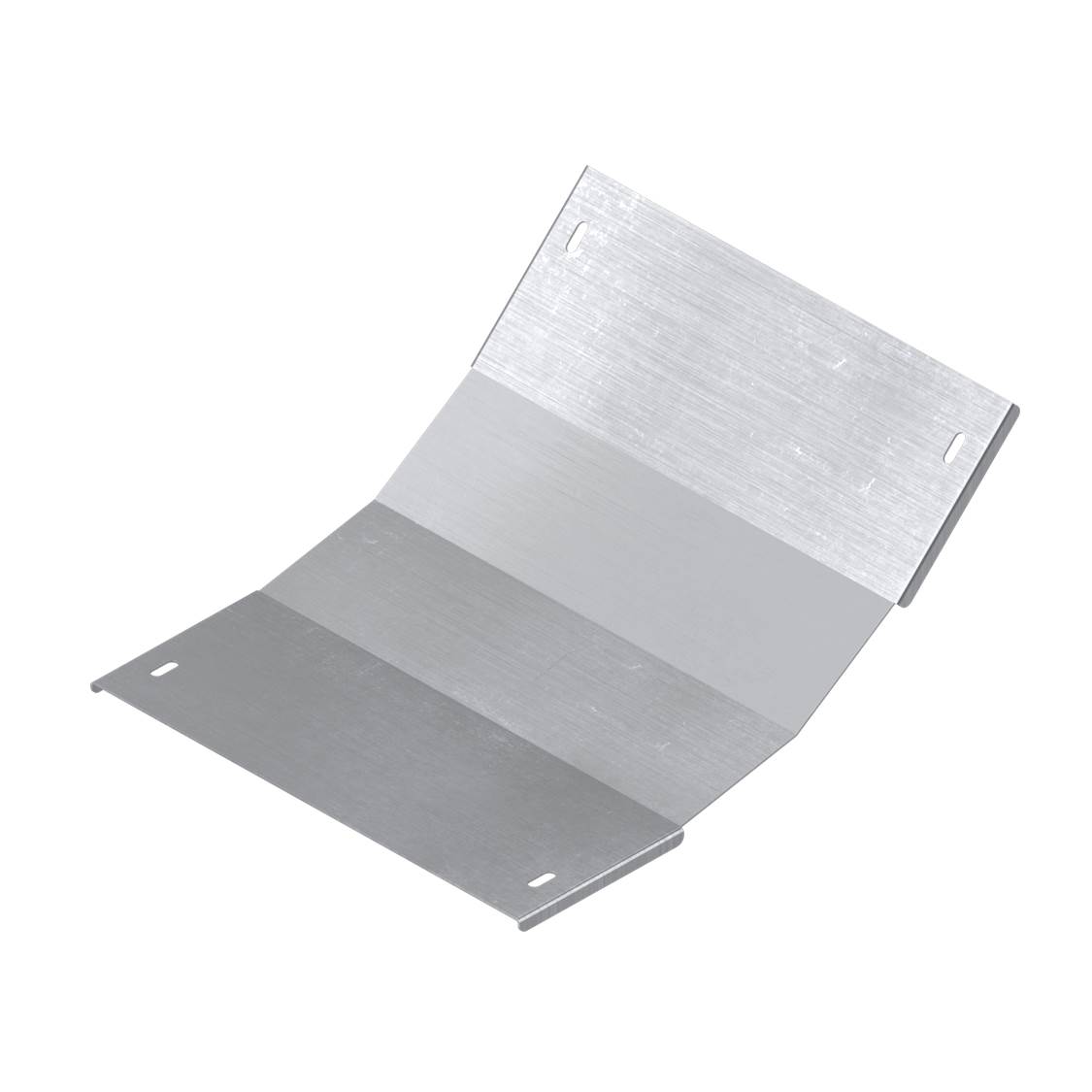

Cover for vertical elbow (inside) 45 degrees 80x300, R600
Code:
UKIC683
Cover for vertical elbow (inside) 45 degrees 80x300, R600
Code:
UKIC683
Colour | Light grey |
Width, mm | 300 |
Surface protection | Sendzimir galvanized |
Material | Steel |
Material quality | Steel |
Type of fastening | Cover clamp |
Product type | Covers for system accessories |
Type of accessories | Cover for 45º vertical inner bend |
Height | 80 mm |
Thickness | 1.0 mm |
Material | Pre-galvanized |
Width | 300 mm |
19 мм | 600 mm |

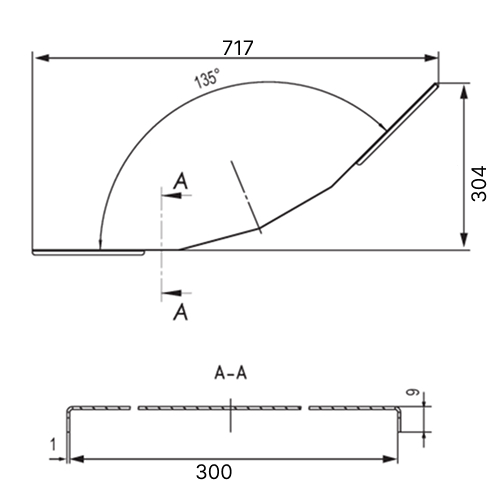

Drawings
Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
---|---|---|---|---|---|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
