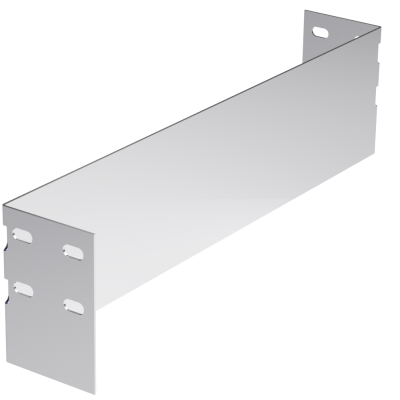

Reducing plug H 150 mm, L 200 mm
Code: URH052
Reducing plug H 150 mm, L 200 mm
Code: URH052
| Colour | Light grey |
| Width, mm | 200 |
| Surface protection | Sendzimir galvanized |
| Material quality | Steel |
| Material | Steel |
| Stainless steel, pickled | Нет |
| Wide span model | Да |
| Suitable for circuit integrity | Нет |
| Height side joist, mm | 150 |
| Product type | Mounting accessories |
| Type of accessories | Reducing plug |
| Height | 150 mm |
| Length | 200 mm |
| Thickness | 2.0 mm |
| Material | Pre-galvanized |

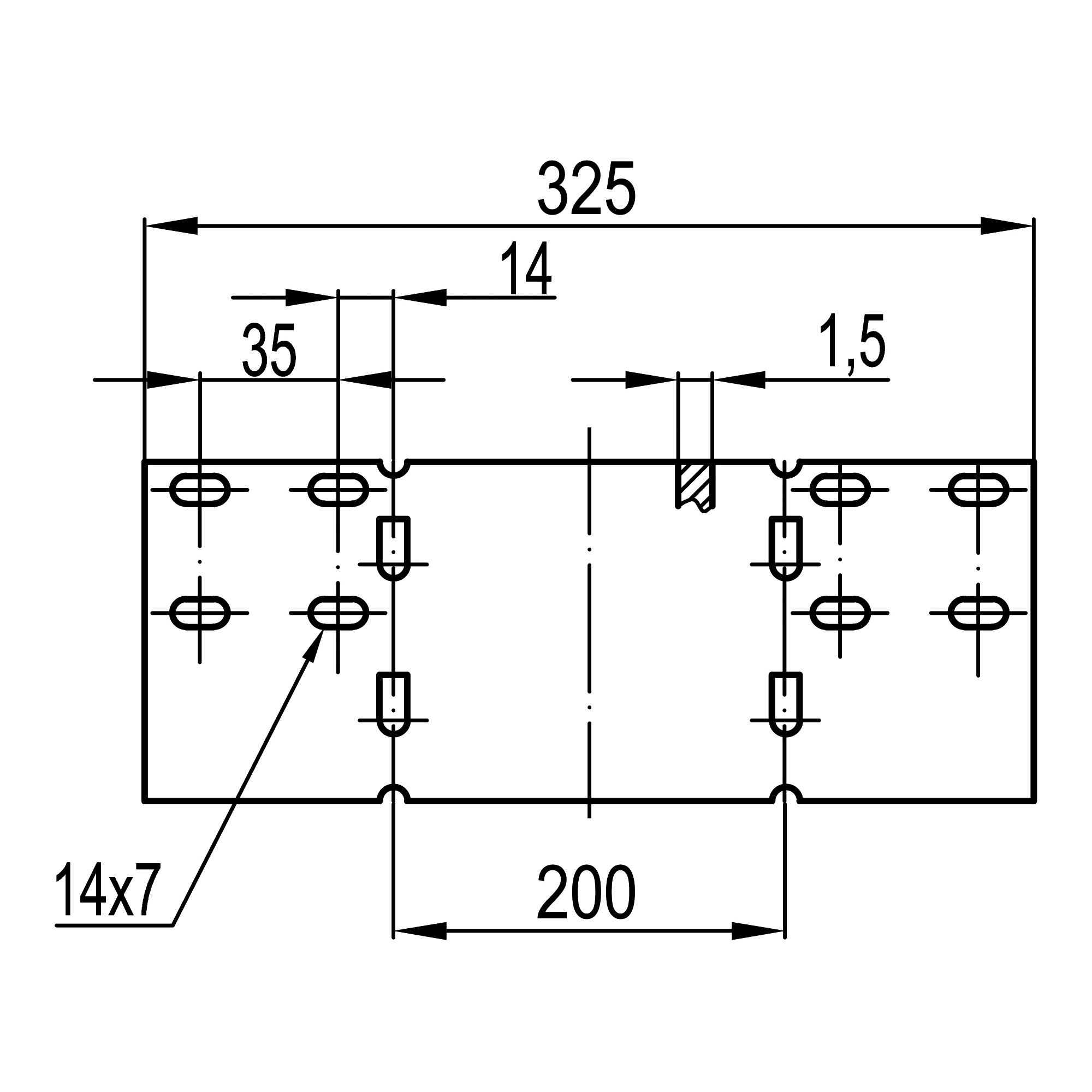

Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
|---|---|---|---|---|---|
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
Certificates
| Name | Document |
|---|---|
