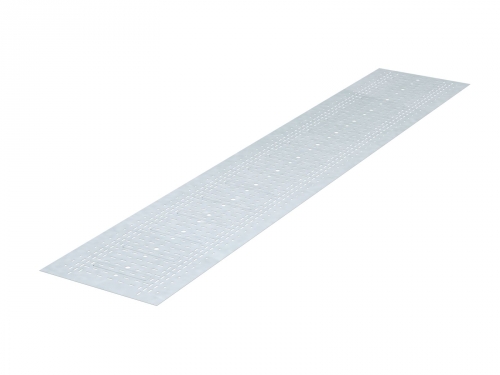

Bottom insert 200
Code: UDM302
Bottom insert 200
Code: UDM302
| Colour | Light grey |
| Perforated | Нет |
| Surface protection | Sendzimir galvanized |
| Material quality | Steel |
| Length, mm | 3000 |
| Material | Steel |
| Cable ladder width, mm | 200 |
| Stainless steel, pickled | Нет |
| Wide span model | Да |
| Product type | Accessories for ladder trays |
| Type of accessories | Bottom insert |
| Thickness | 1.0 mm |
| Material | Pre-galvanized |
| Width | 200 mm |

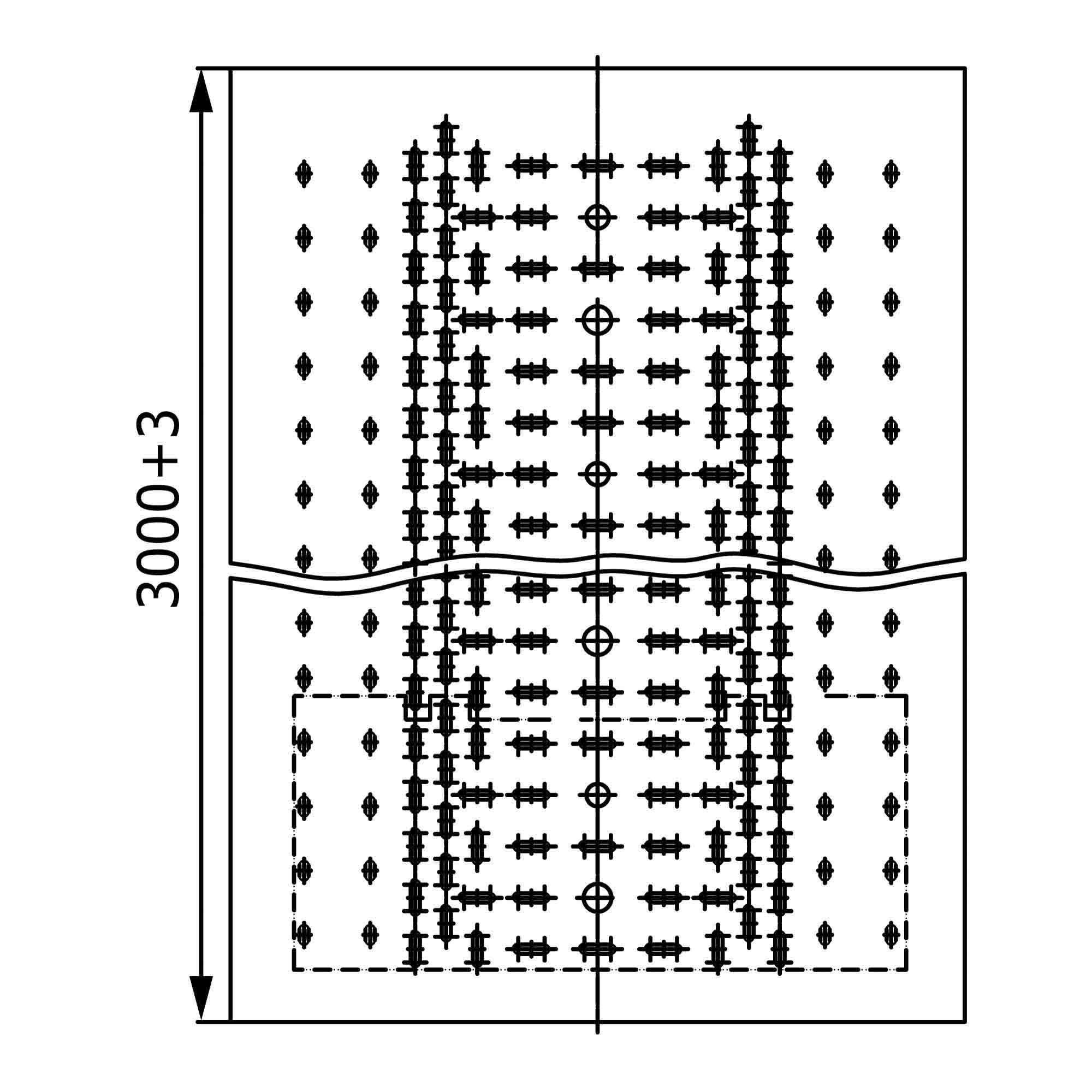

Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
|---|---|---|---|---|---|
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
Certificates
| Name | Document |
|---|---|
