Vertical sheet elbow (outside) 90 R600 Height 200 mm Wide 600mm

Code: USOD626

Vertical sheet elbow (outside) 90 R600 Height 200 mm Wide 600mm

Code: USOD626
Colour Light grey
Model Without connector
Surface protection Sendzimir galvanized
Deflection (angle) 90°
Material Steel
Inner radius, mm 600
Cable tray width, mm 600
Cable tray height, mm 200
Change of direction Vertically descending
Material quality Steel
Product type Accessories
Type of accessories 90º vertical external bend
Height 200 mm
Width 600 mm
Material Pre-galvanized steel

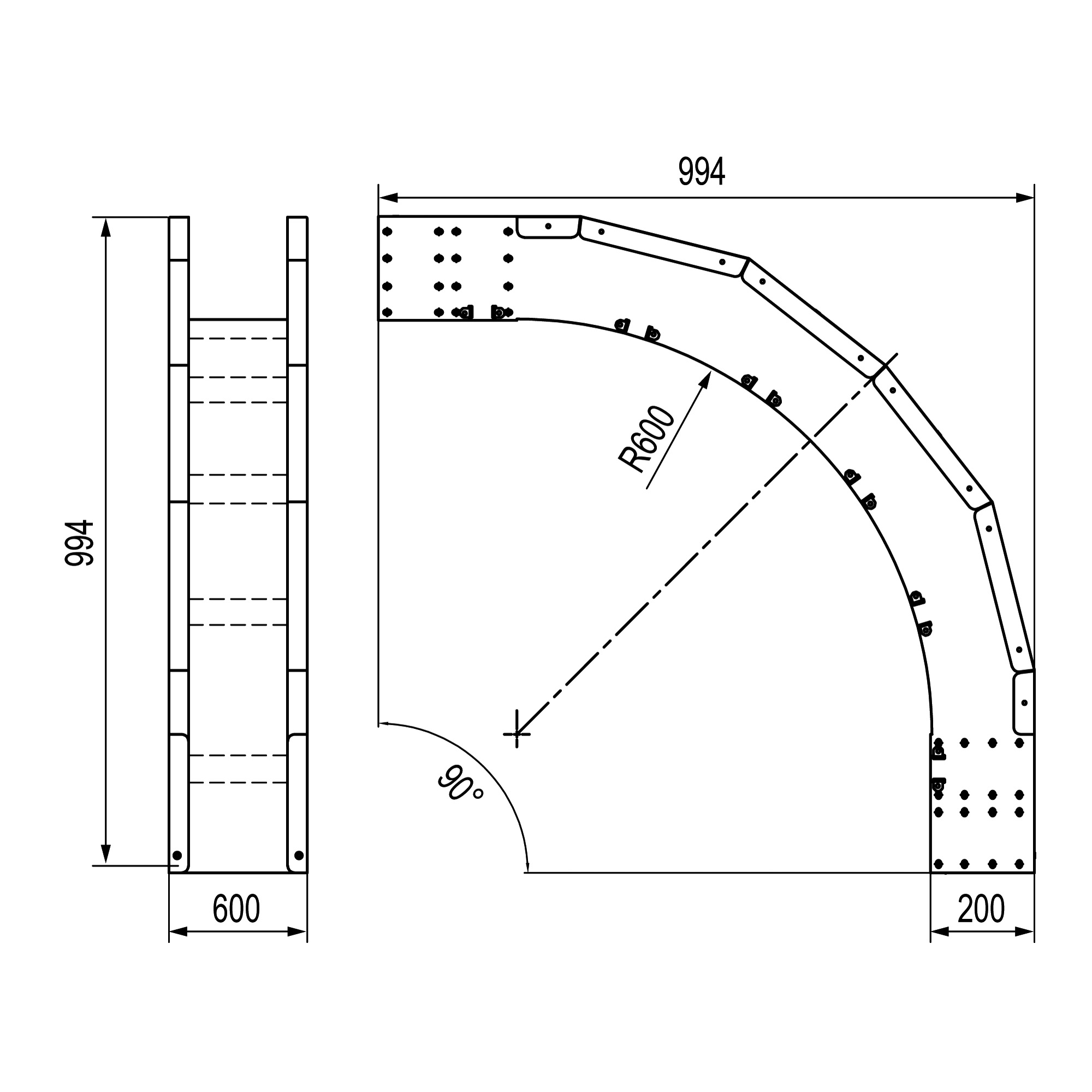

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit STEP
Heavy metal trays - " U5 Combitech"
Heavy metal trays - " U5 Combitech"
Heavy metal trays - " U5 Combitech"
Heavy metal trays - " U5 Combitech"
