Vertical sheet elbow (outside) 90 R600 Height 200 mm Wide 1000mm

Code: USOD620
Vertical sheet elbow (outside) 90 R600 Height 200 mm Wide 1000mm
  • To ask a question
Colour Light grey
Model Without connector
Surface protection Sendzimir galvanized
Deflection (angle) 90°
Material Steel
Inner radius, mm 600
Cable tray width, mm 1000
Cable tray height, mm 200
Change of direction Vertically descending
Material quality Steel
Product type System accessories
Type of accessories 90º tray vertical external bend
Height 200 mm
Width 1000 mm
Material Pre-galvanized steel

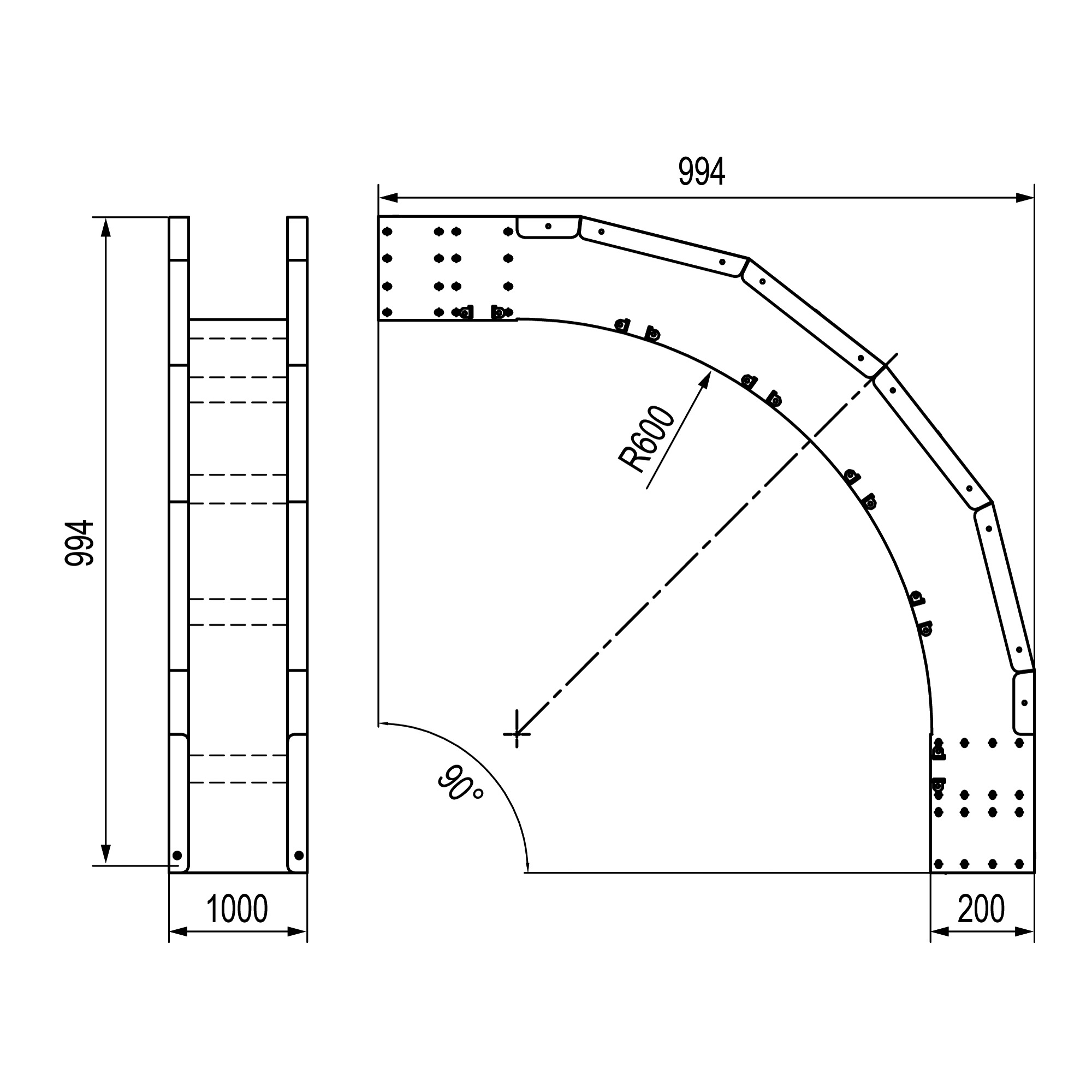

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit STEP
