Vertical sheet elbow (outside) 90 R600 Height 100 mm Wide 1000mm

Code: USOD610

Vertical sheet elbow (outside) 90 R600 Height 100 mm Wide 1000mm

Code: USOD610
Colour Light grey
Model Without connector
Surface protection Sendzimir galvanized
Deflection (angle) 90°
Material Steel
Inner radius, mm 600
Cable tray width, mm 1000
Cable tray height, mm 100
Change of direction Vertically descending
Material quality Steel
Product type Accessories
Type of accessories 90º vertical external bend
Height 100 mm
Width 1000 mm
Material Pre-galvanized steel

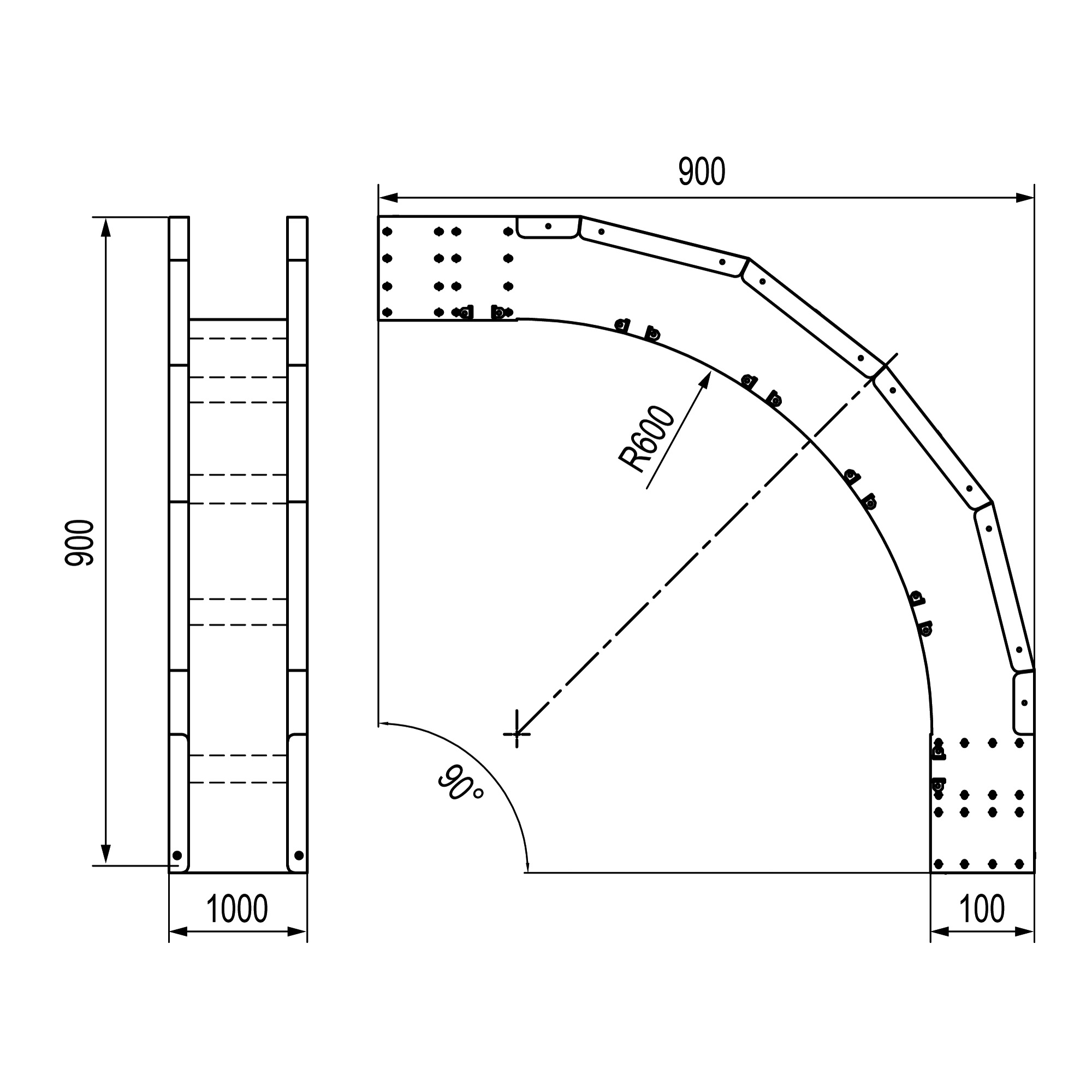

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit STEP
Heavy metal trays - " U5 Combitech"
Heavy metal trays - " U5 Combitech"
Heavy metal trays - " U5 Combitech"
Heavy metal trays - " U5 Combitech"
