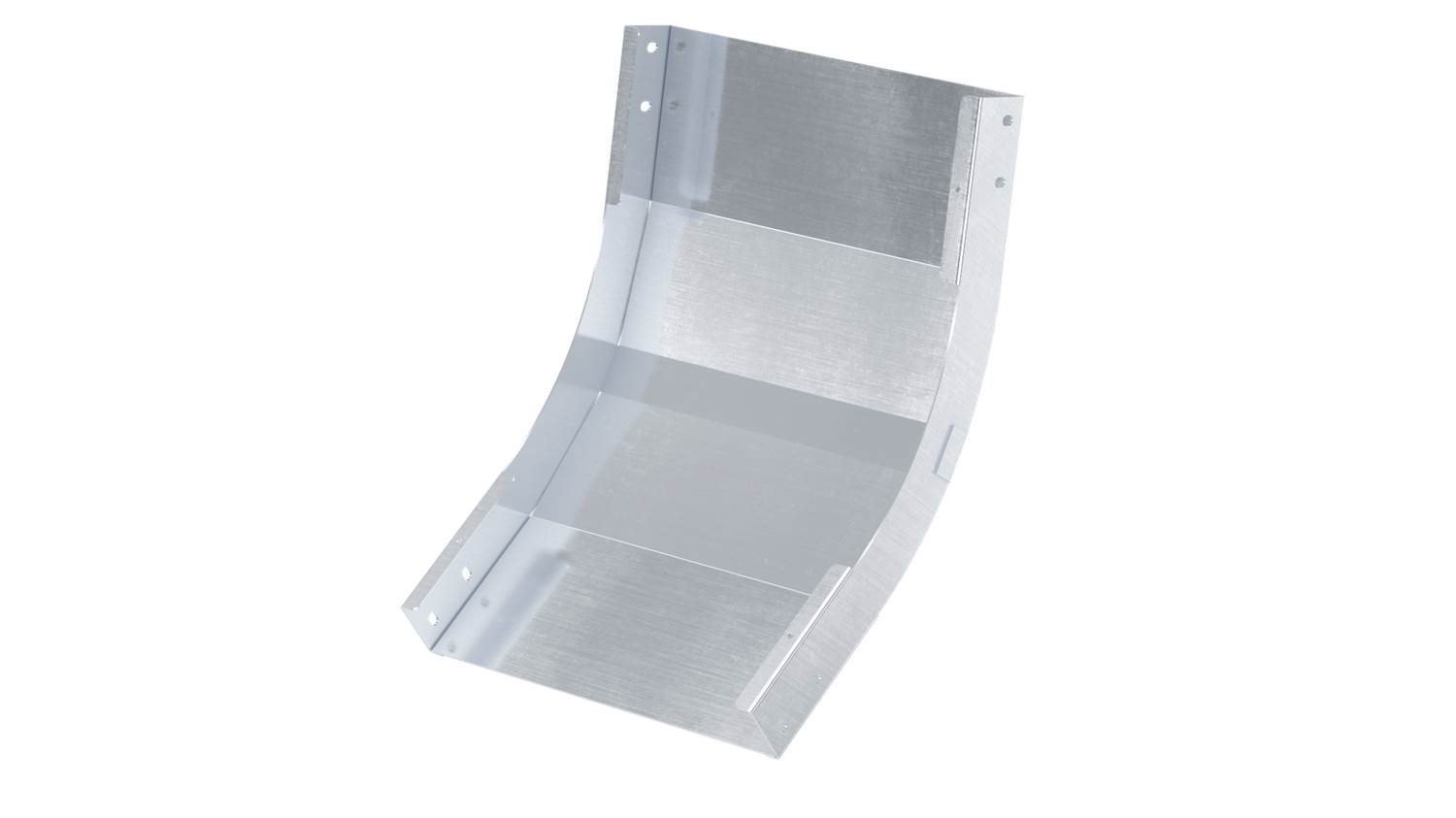

Vertical sheet elbow (inside) 45 R600 Height 150 mm Wide 1000mm
Code: USIC650
Vertical sheet elbow (inside) 45 R600 Height 150 mm Wide 1000mm
Code: USIC650
| Colour | Light grey |
| Model | Without connector |
| Surface protection | Sendzimir galvanized |
| Deflection (angle) | 45° |
| Material | Steel |
| Inner radius, mm | 600 |
| Cable tray width, mm | 1000 |
| Cable tray height, mm | 150 |
| Change of direction | Vertically rising |
| Material quality | Steel |
| Product type | Accessories |
| Type of accessories | 45º vertical inner bend |
| Height | 150 mm |
| Side rail thickness | 1.2 mm |
| Material | Pre-galvanized |
| Width | 1000 mm |
| 19 мм | 600 mm |

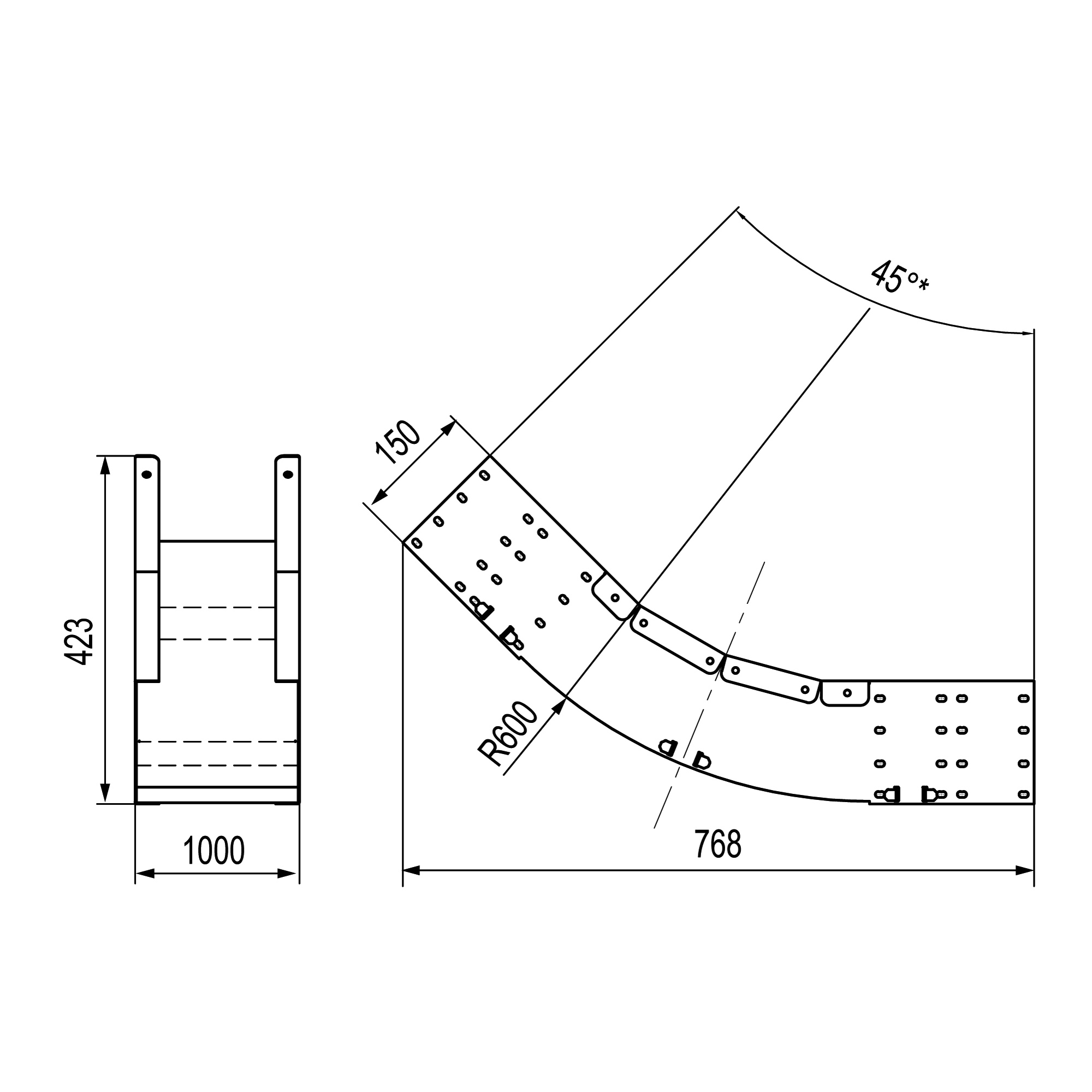

Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
|---|---|---|---|---|---|
|
