| Surface protection | Sendzimir galvanized |
| Deflection (angle) | 45° |
| Material | Steel |

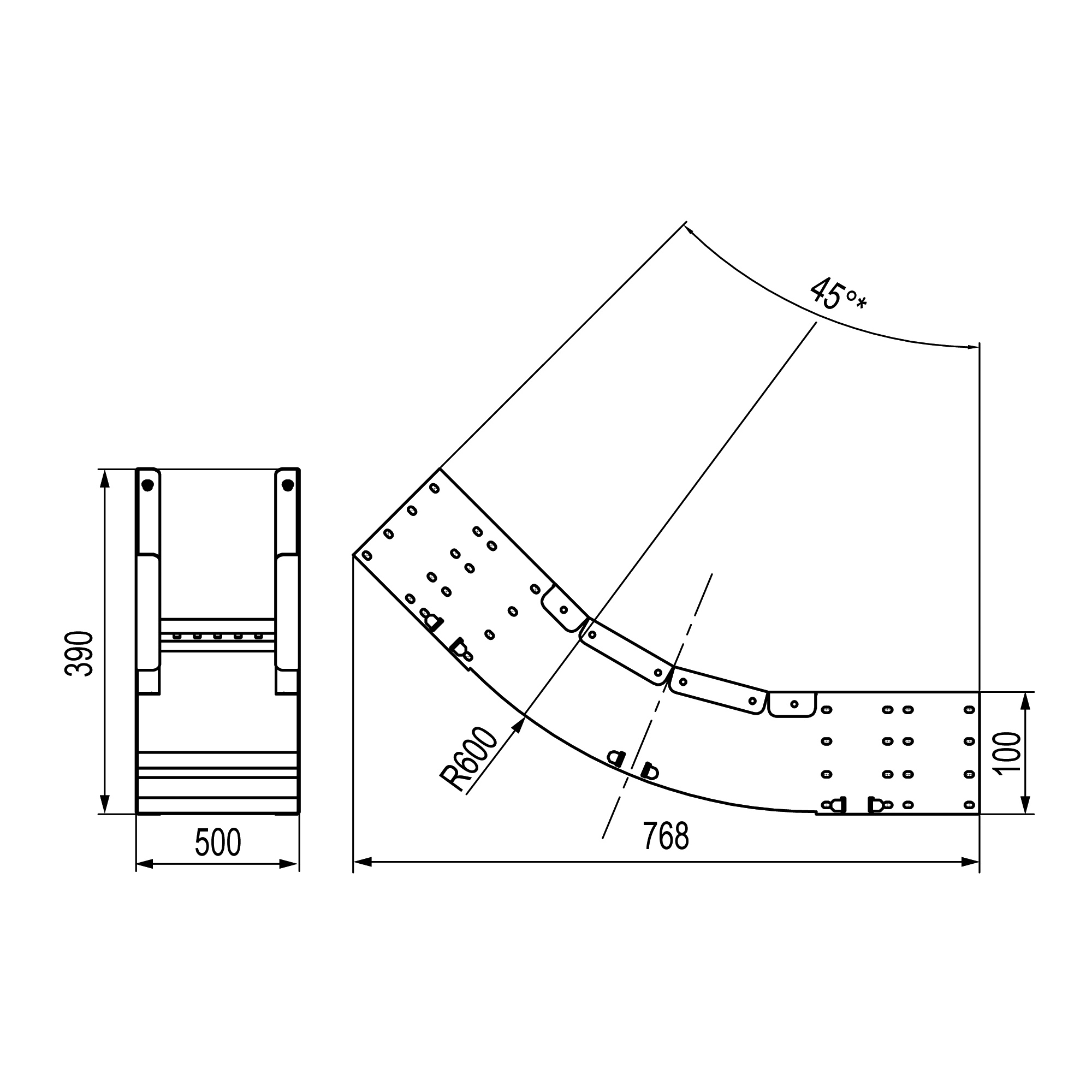

| Inner radius, mm | 600 |
| Cable ladder width, mm | 500 |
| Cable ladder height, mm | 100 |
| Change of direction | Vertically rising |
| Material quality | Steel |
| Suitable for circuit integrity | Yes |
| Product type | Accessories for ladder trays |

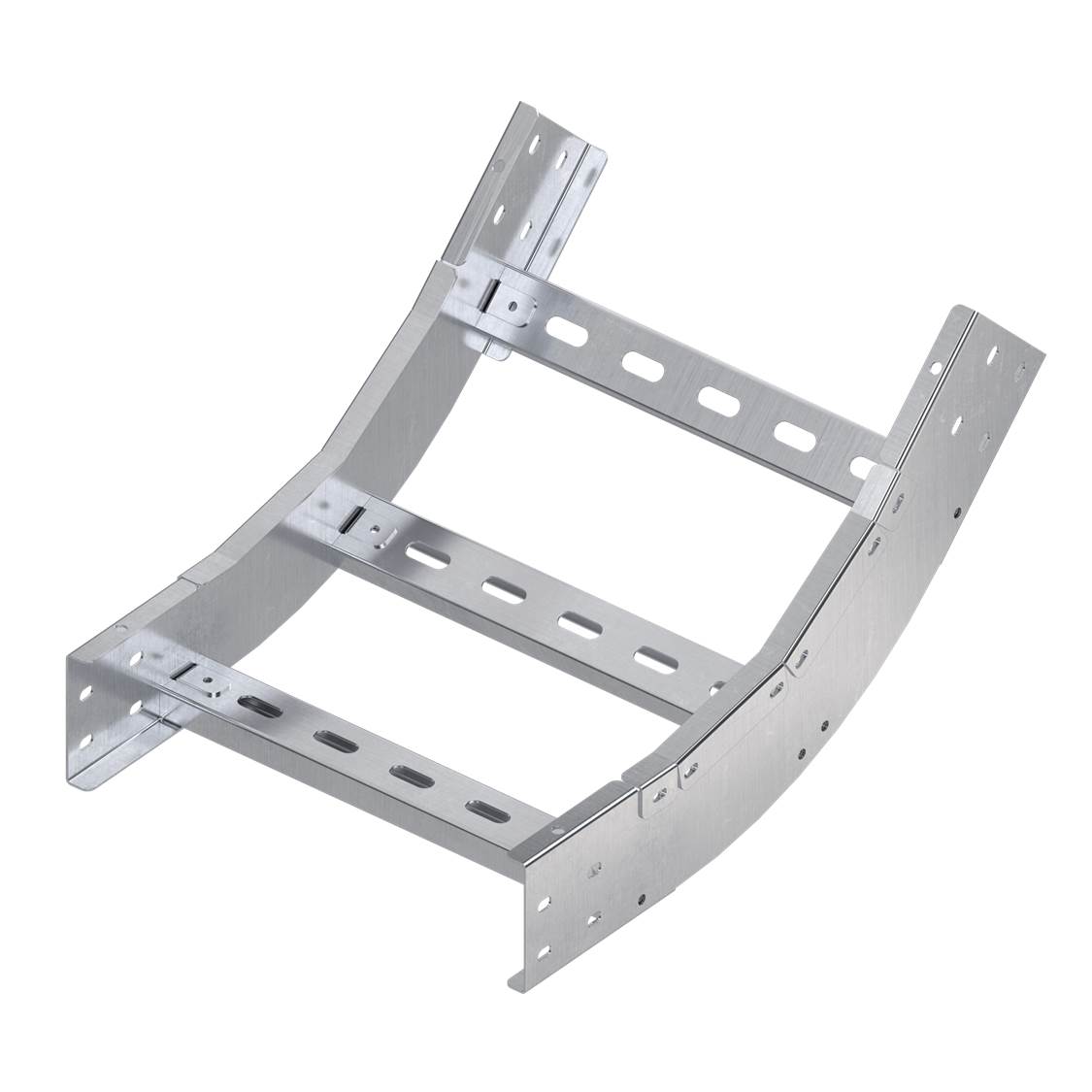

| Type of accessories | 45º vertical inner bend |
| Height | 100 mm |
| Side rail thickness | 1.5 mm |
| Material | Pre-galvanized |
| Width | 500 mm |
| 19 мм | 600 mm |
