| Surface protection | Sendzimir galvanized |
| Deflection (angle) | 90° |
| Material | Steel |
| Inner radius, mm | 600 |
| Cable ladder width, mm | 900 |
| Cable ladder height, mm | 80 |
| Change of direction | Vertically declining |
| Material quality | Steel |
| Stainless steel, pickled | No |
| Suitable for circuit integrity | No |
| Product type | System accessories |
| Type of accessories | 90º ladder vertical external bend |
| Height | 80 mm |
| Width | 900 mm |
| Material | Pre-galvanized steel |

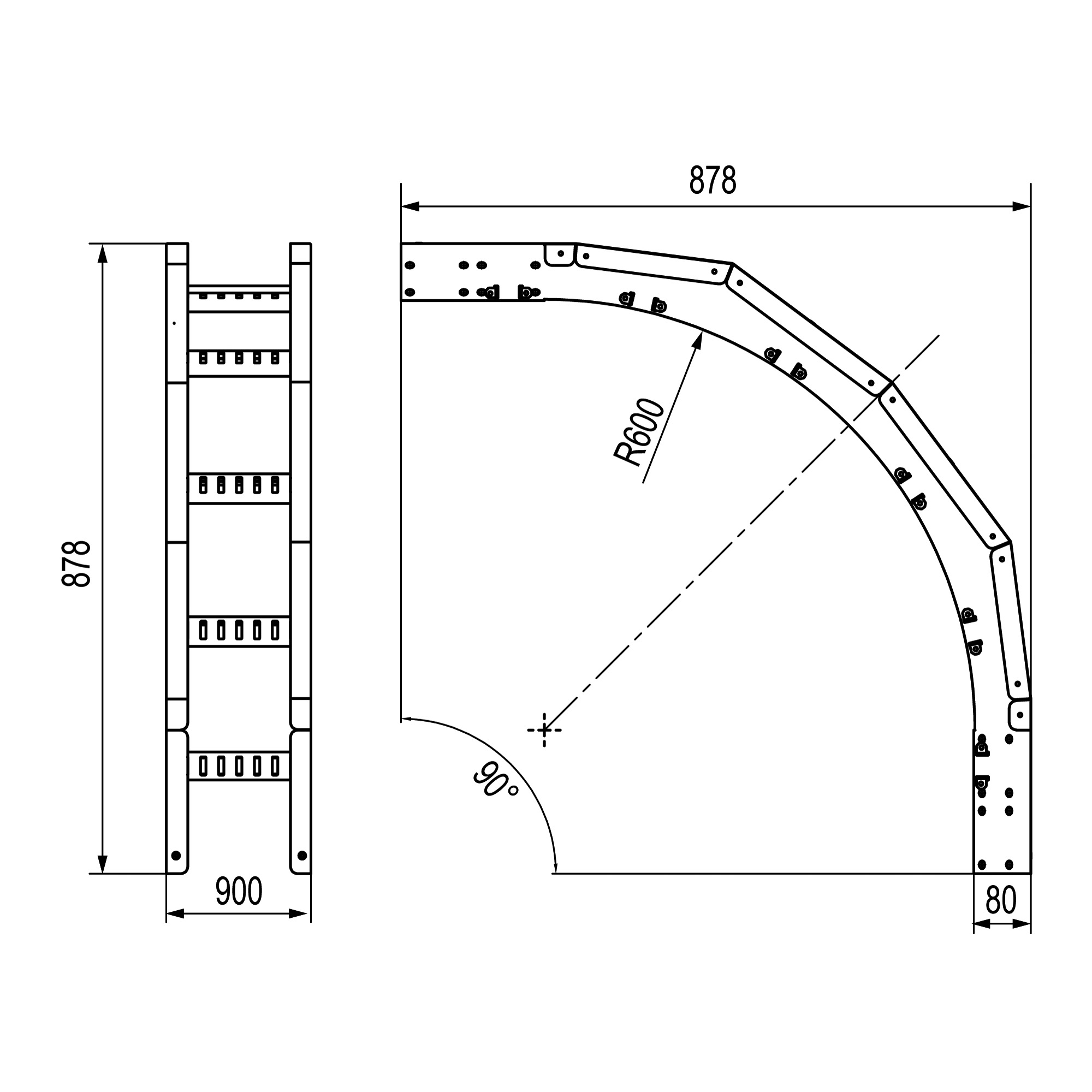

Drawings
| Seria | Name | STEP | Autodesk Revit | Intergraph | DWG (dynamic blocks) |
|---|---|---|---|---|---|
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
