Vertical ladder elbow (outside) 90 R600 Height 80 mm Wide 600mm

Code: ULOD686
Vertical ladder elbow (outside) 90 R600 Height 80 mm Wide 600mm
  • To ask a question
Surface protection Sendzimir galvanized
Deflection (angle) 90°
Material Steel
Inner radius, mm 600
Cable ladder width, mm 600
Cable ladder height, mm 80
Change of direction Vertically declining
Material quality Steel
Stainless steel, pickled No
Suitable for circuit integrity No
Product type System accessories
Type of accessories 90º ladder vertical external bend
Height 80 mm
Width 600 mm
Material Pre-galvanized steel

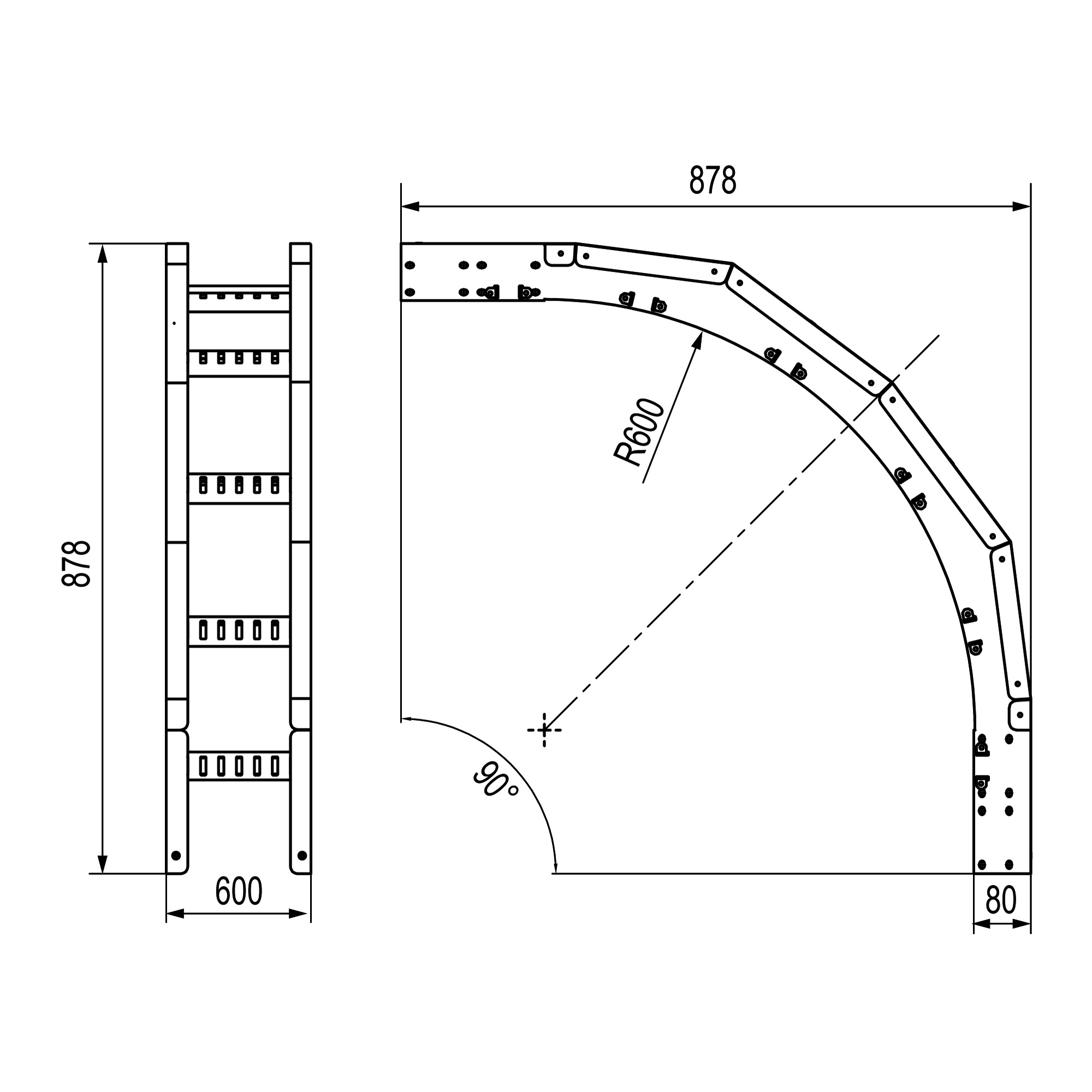

Drawings
Seria Name STEP Autodesk Revit Intergraph DWG (dynamic blocks)
