Surface protection | Sendzimir galvanized |
Deflection (angle) | 90° |
Material | Steel |
Inner radius, mm | 600 |
Cable ladder width, mm | 300 |
Cable ladder height, mm | 80 |
Change of direction | Vertically descending |
Material quality | Steel |
Stainless steel, pickled | No |
Suitable for circuit integrity | No |
Product type | System accessories |

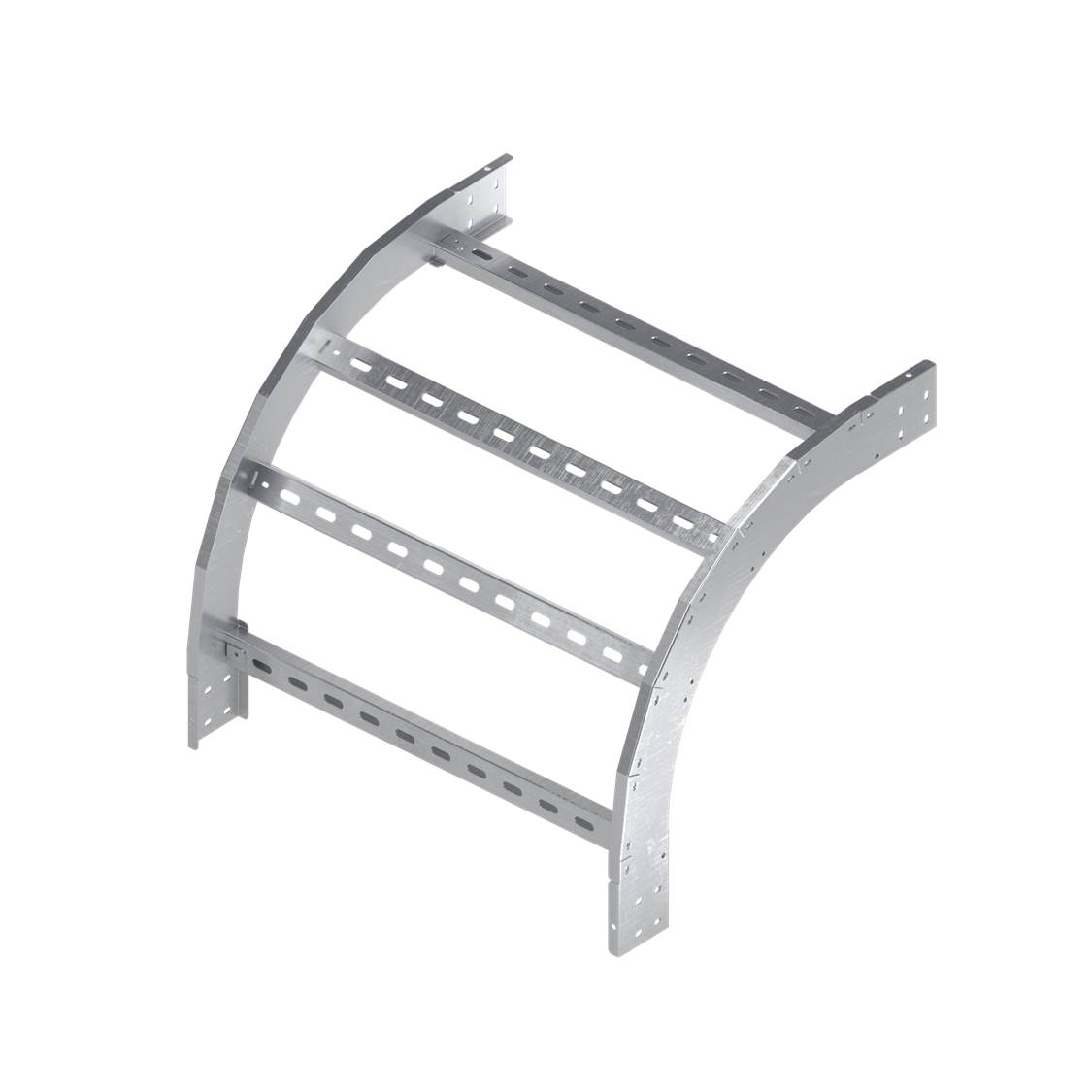

Type of accessories | 90º ladder vertical external bend |
Height | 80 mm |
Width | 300 mm |
Material | Pre-galvanized steel |

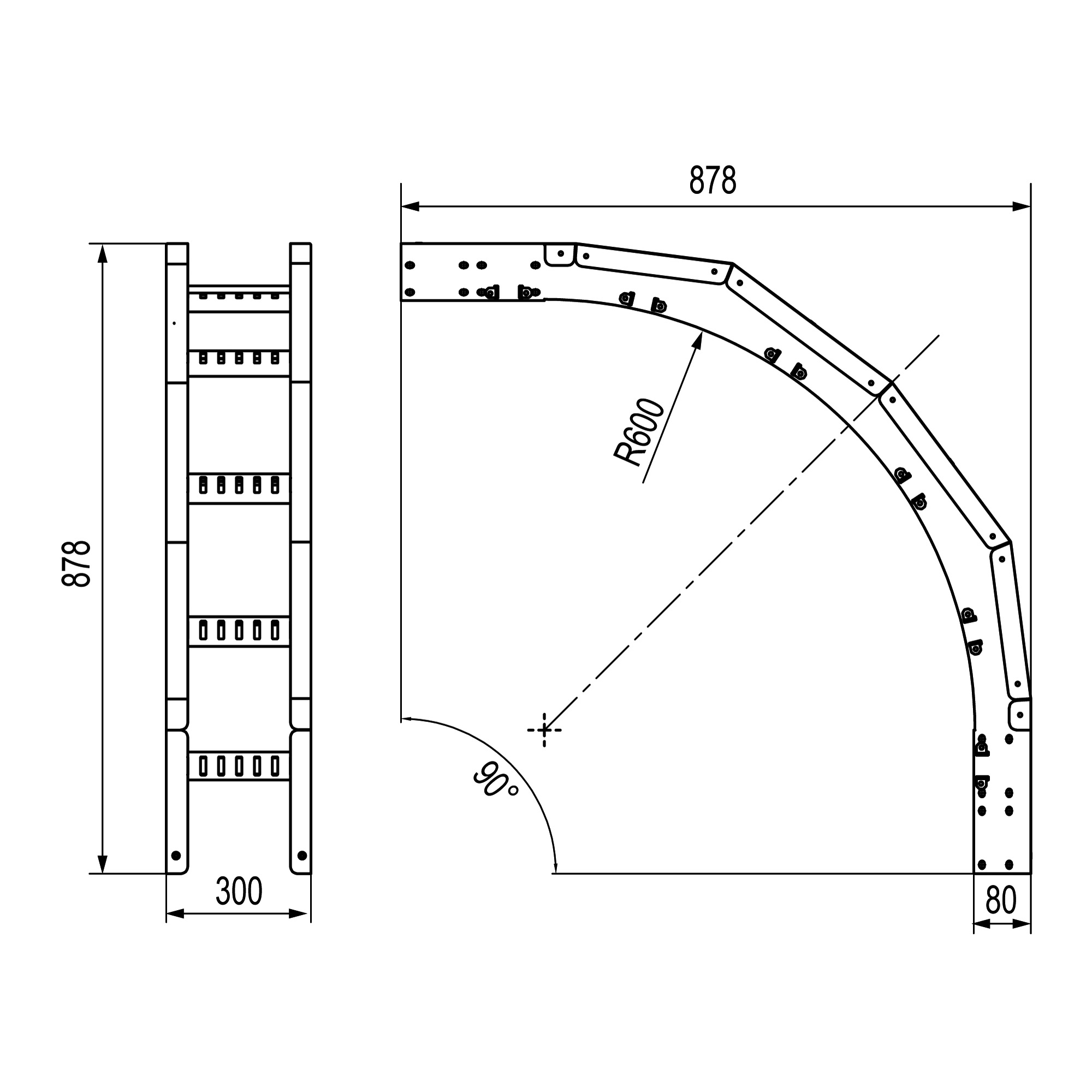

Drawings
