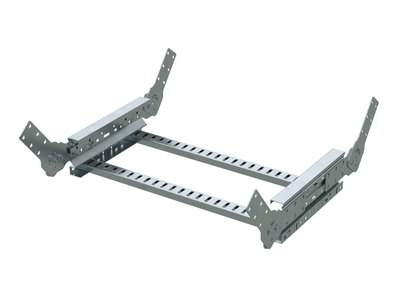

Vertical ladder bend 100х400
Code: ULF014
Vertical ladder bend 100х400
Code: ULF014
| Colour | Light grey |
| Model | Without connector |
| Surface protection | Sendzimir galvanized |
| Type of rung | Perforated profile |
| Hinging | Да |
| Material quality | Steel |
| Material | Steel |
| Cable ladder width, mm | 400 |
| Cable ladder height, mm | 100 |
| Stainless steel, pickled | Нет |
| Wide span model | Да |
| Type of side joist | Profile (open) |
| Suitable for circuit integrity | Нет |
| Product type | Accessories for ladder trays |
| Type of accessories | Adjustable vertical joint |
| Height | 100 mm |
| Side rail thickness | 1.5 mm |
| Material | Pre-galvanized |
| Width | 400 mm |

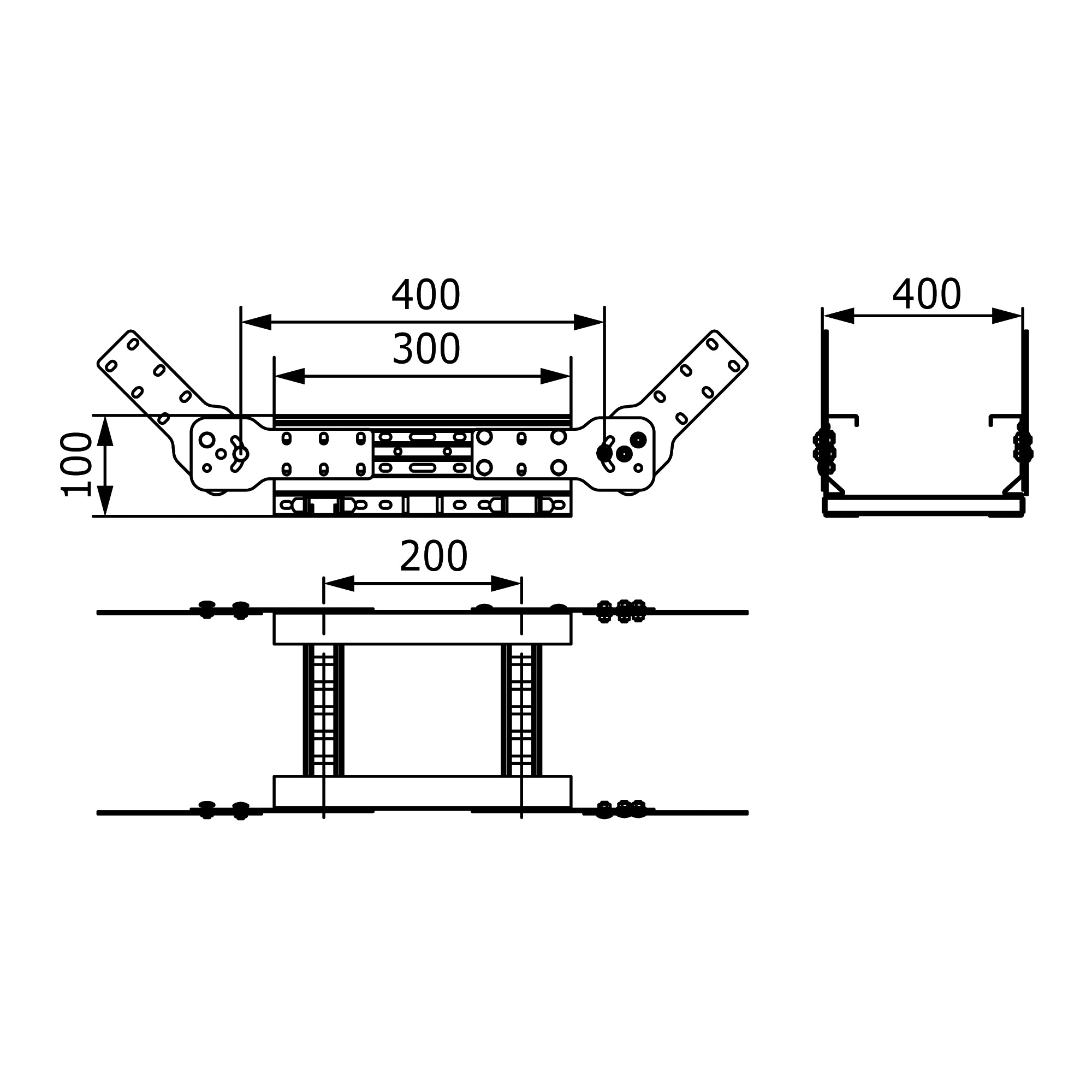

Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
|---|---|---|---|---|---|
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
Certificates
| Name | Document |
|---|---|
