Horizontal ladder bend 45 degrees 100x200, R660

Code: ULC612

Horizontal ladder bend 45 degrees 100x200, R660

Code: ULC612
Surface protection Sendzimir galvanized
Deflection (angle) 45°
Type of rung Perforated profile
Side wall perforation Да
Material quality Steel
Material Steel
Inner radius, mm 600
Cable ladder width, mm 200
Cable ladder height, mm 100
Change of direction Horizontal
Stainless steel, pickled Нет
Wide span model Да
Type of side joist Profile (open)
Suitable for circuit integrity Нет
Product type Accessories for ladder trays
Type of accessories 45º Horizontal bend
Height 100 mm
Width 200 mm
Material Pre-galvanized steel

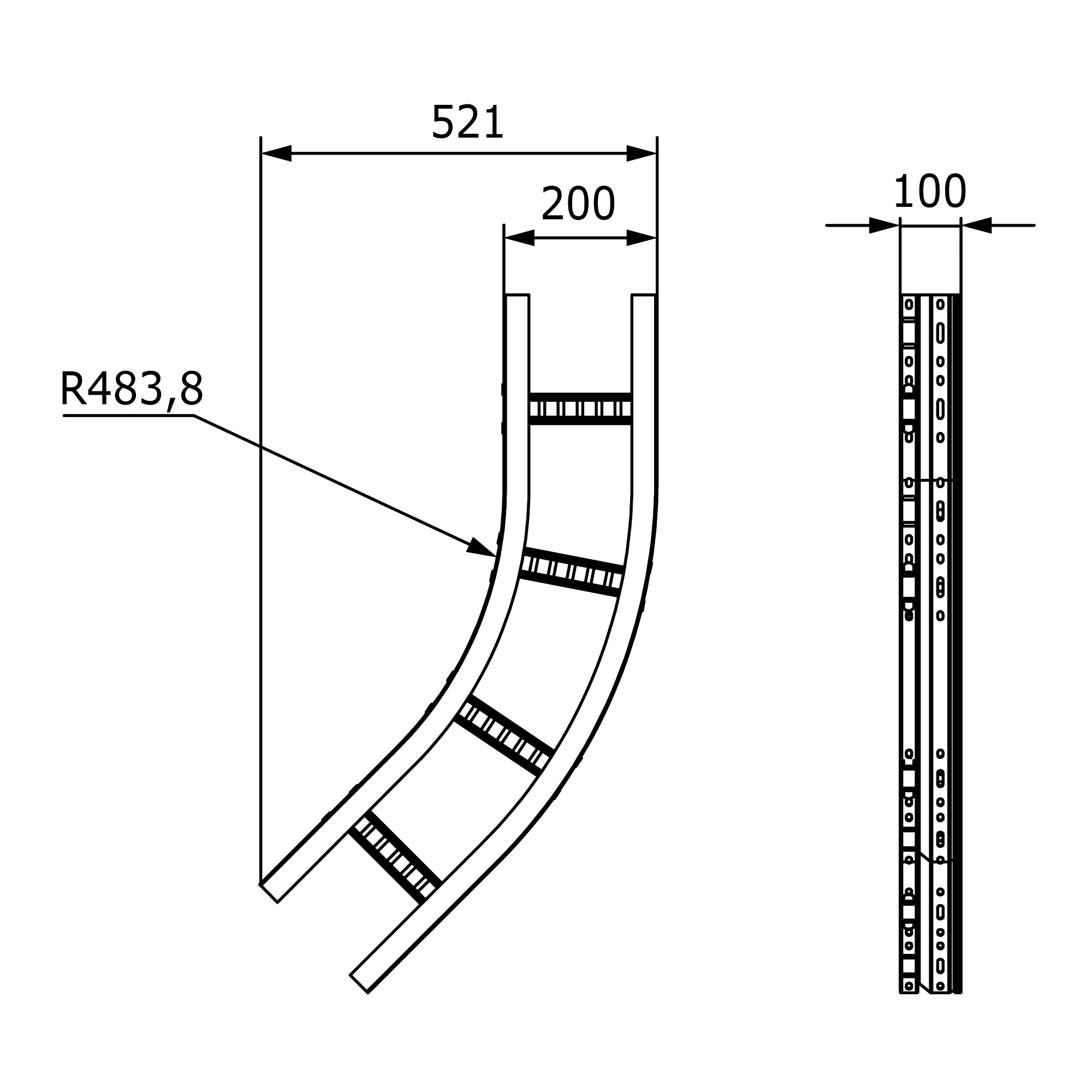

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit STEP
