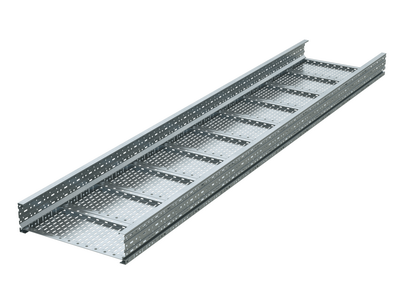

Sheet tray 150х700, side rail thickness 1,5 mm, L 6 m
Code: USM657
Sheet tray 150х700, side rail thickness 1,5 mm, L 6 m
Code: USM657
Colour | Light grey |
Width, mm | 700 |
Model | Without connector |
Height, mm | 150 |
Surface protection | Sendzimir galvanized |
Material thickness, mm | 1.5 |
Side wall perforation | Yes |
Material quality | Steel |
Length, mm | 6000 |
Material | Steel |
Mounting perforation in bottom | Yes |
Useful cross section, mm² | 91000 |
NATO-mounting holes | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Product type | Perforated straight elements |
Type | Heavy metal trays - " U5 Combitech" |
Height | 150 mm |
Side rail thickness | 1.5 mm |
Length | 6000 mm |
Material | Pre-galvanized |
Width | 700 mm |
Accessories
Analogs

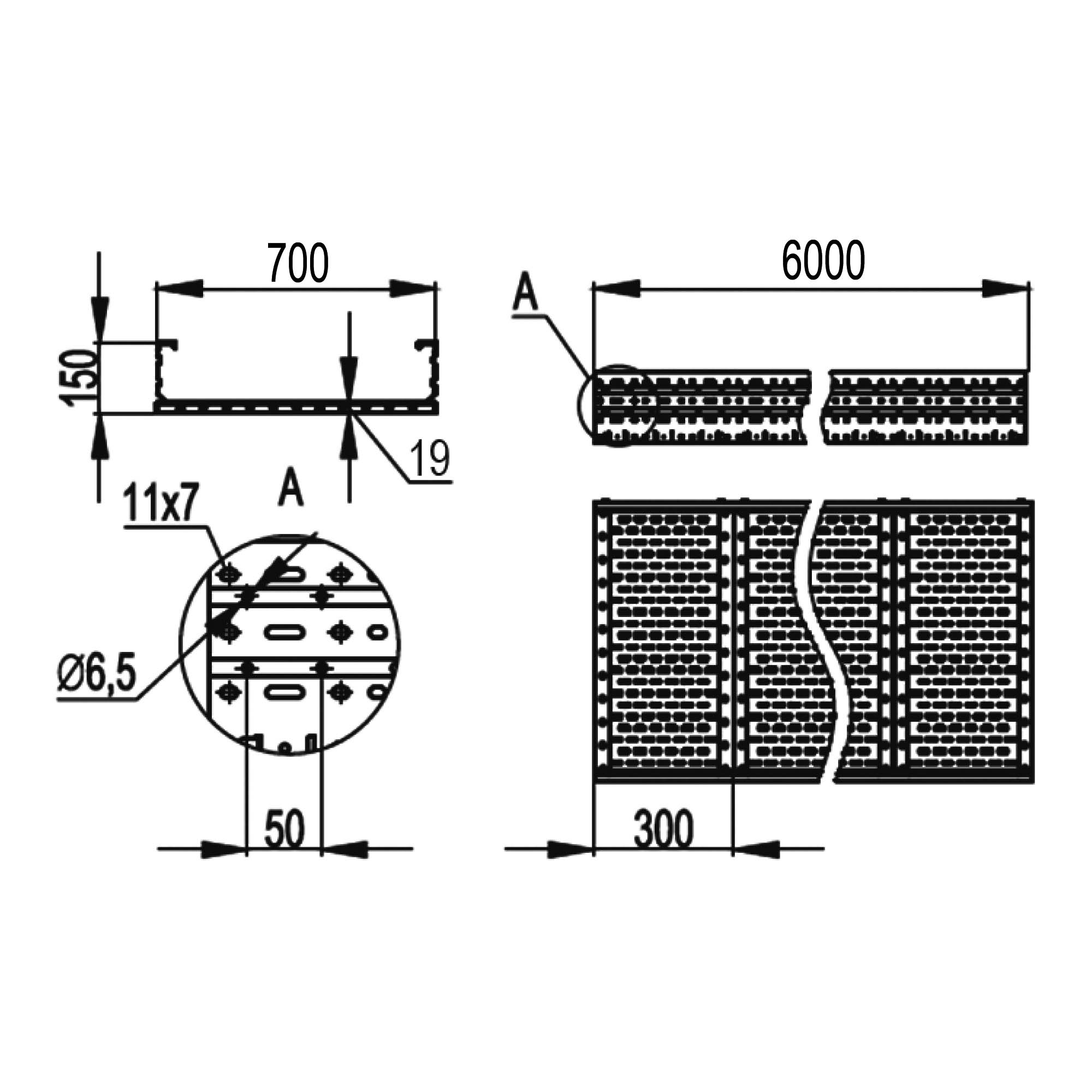

Drawings
