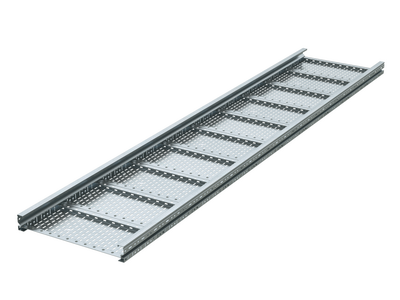

Sheet tray 100х700, side rail thickness 2 mm, L 3 m
Code: USH317
Sheet tray 100х700, side rail thickness 2 mm, L 3 m
Code: USH317
Colour | Light grey |
Width, mm | 700 |
Model | Without connector |
Height, mm | 100 |
Surface protection | Sendzimir galvanized |
Material thickness, mm | 2 |
Side wall perforation | Yes |
Material quality | Steel |
Length, mm | 3000 |
Material | Steel |
Mounting perforation in bottom | Yes |
Useful cross section, mm² | 56000 |
NATO-mounting holes | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Product type | Perforated straight elements |
Type | Heavy metal trays - " U5 Combitech" |
Height | 100 mm |
Side rail thickness | 2.0 mm |
Length | 3000 mm |
Material | Pre-galvanized |
Width | 700 mm |
Accessories
Analogs

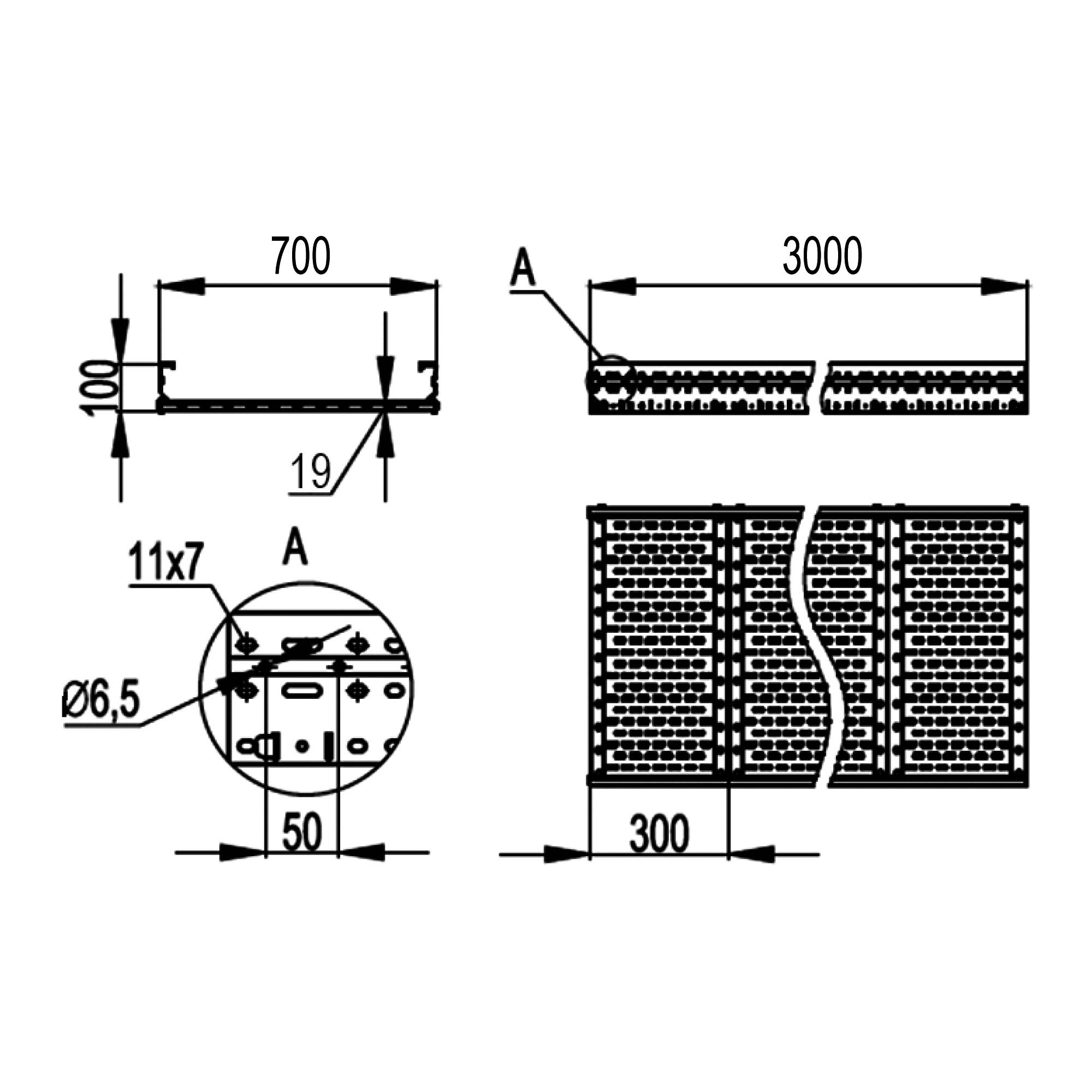

Drawings
Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
---|---|---|---|---|---|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
Certificates
Name | Document |
---|---|
