Sheet tray non-perforated 150х200, side rail thickness 2 mm, L 6 m
Code: UNH652
Sheet tray non-perforated 150х200, side rail thickness 2 mm, L 6 m
Code: UNH652
| Colour | Light grey |
| Width, mm | 200 |
| Model | Without connector |
| Height, mm | 150 |
| Surface protection | Sendzimir galvanized |
| Material thickness, mm | 2 |
| Side wall perforation | Yes |
| Material quality | Steel |
| Length, mm | 6000 |
| Material | Steel |
| Mounting perforation in bottom | No |
| Useful cross section, mm² | 26000 |
| NATO-mounting holes | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Product type | Non perforated straight elements |
| Type | Heavy metal trays - " U5 Combitech" |
| Height | 150 mm |
| Side rail thickness | 2.0 mm |
| Length | 6000 mm |
| Material | Pre-galvanized |
| Width | 200 mm |
Accessories
Analogs

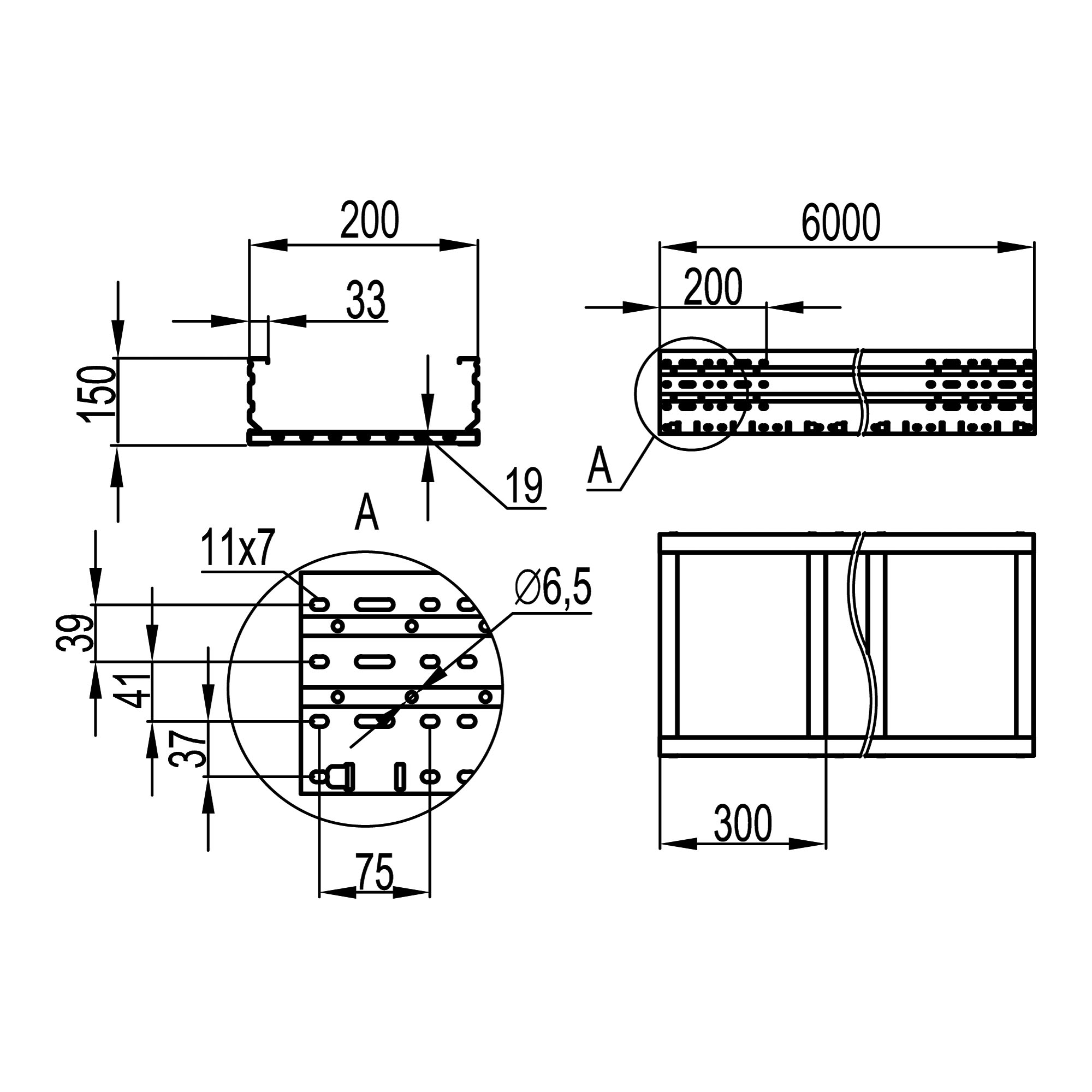

Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
|---|---|---|---|---|---|
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
Certificates
| Name | Document |
|---|---|
