Sheet tray non-perforated 100х700, side rail thickness 2 mm, L 3 m

Code: UNH317

Sheet tray non-perforated 100х700, side rail thickness 2 mm, L 3 m

Code: UNH317
Colour Light grey
Width, mm 700
Model Without connector
Height, mm 100
Surface protection Sendzimir galvanized
Material thickness, mm 2
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Mounting perforation in bottom No
Useful cross section, mm² 56000
NATO-mounting holes Yes
Wide span model Yes
Suitable for circuit integrity Yes
Product type Non perforated Straight Element
Height 100 mm
Width 700 mm
Material Pre-galvanized steel
Side rail thickness 2 mm
Type Heavy metal trays - " U5 Combitech"
Length 3000 mm
Accessories
Analogs

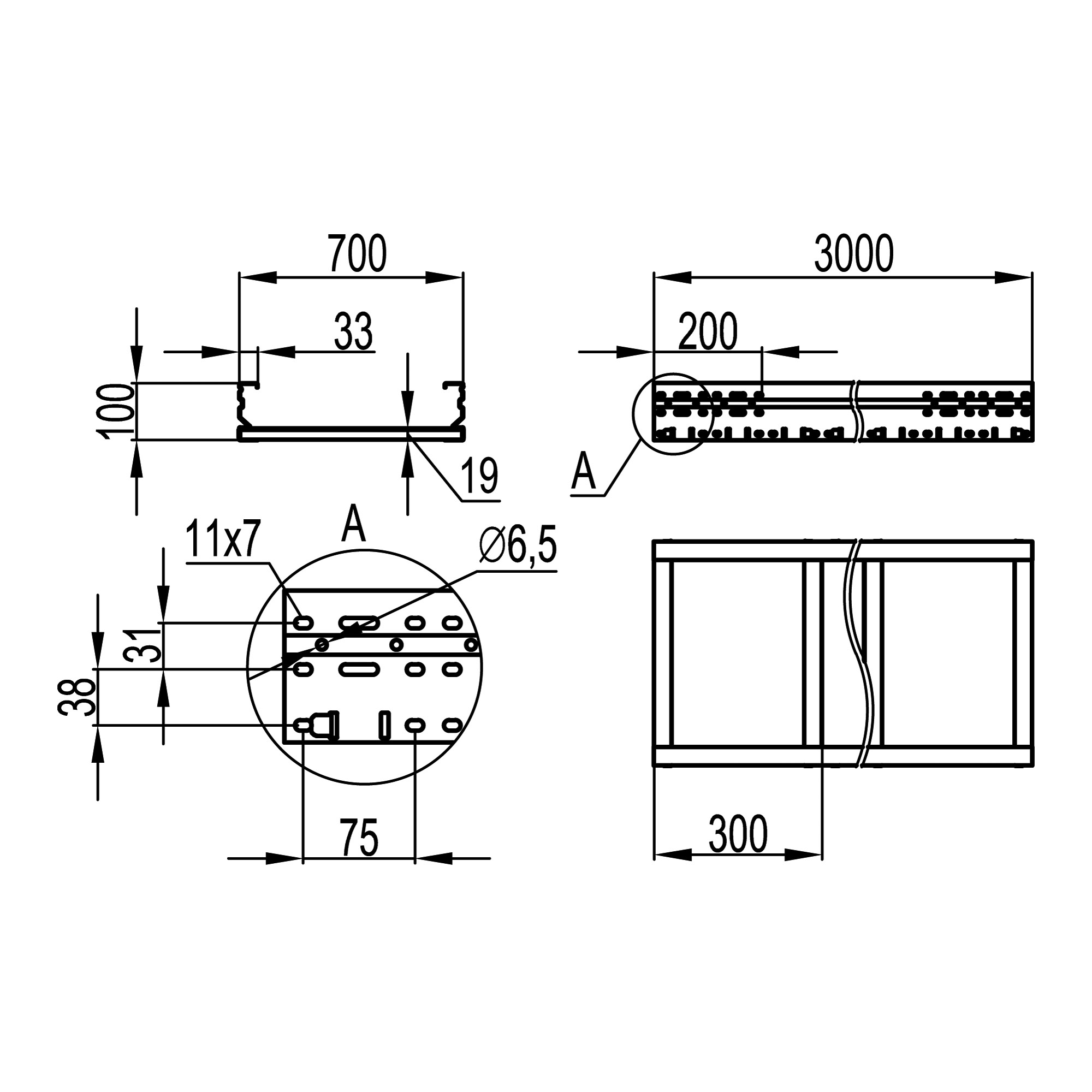

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit STEP
