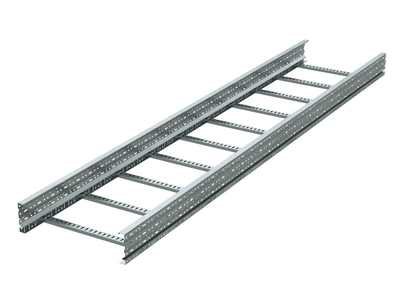

Cable ladder 150х200, side rail thickness 1,5 mm, L 3 m

Code: ULM352
Code: ULM352
  • To ask a question
Colour Light grey
Width, mm 200
Height, mm 150
Surface protection Sendzimir galvanized
Type of rung Perforated profile
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Useful cross section, mm² 26000
Wide span model Yes
Type of side joist Profile (open)
Rung centre spacing, mm 300
Fixation rung Fully revited
Material thickness, mm 1.5
Product type Metal ladder trays
Type Heavy metal trays - " U5 Combitech"
Height 150 mm
Side rail thickness 1.5 mm
Length 3000 mm
Material Pre-galvanized
Width 200 mm
