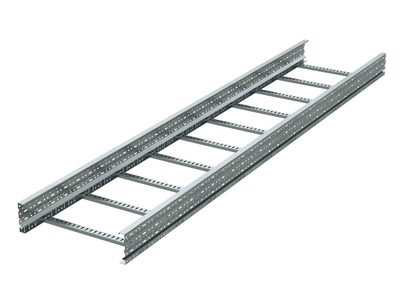

Cable ladder 200x1000, side rail thickness 2 mm, L 3 m
Code: ULH320
Cable ladder 200x1000, side rail thickness 2 mm, L 3 m
Code: ULH320
Colour | Light grey |
Width, mm | 1000 |
Height, mm | 200 |
Surface protection | Sendzimir galvanized |
Type of rung | Perforated profile |
Side wall perforation | Yes |
Material quality | Steel |
Length, mm | 3000 |
Material | Steel |
Useful cross section, mm² | 180000 |
Stainless steel, pickled | Yes |
Wide span model | Yes |
Type of side joist | Profile (open) |
Rung centre spacing, mm | 200 |
Fixation rung | Fully revited |
Product type | Cable ladder |
Height | 200 mm |
Width | 1000 mm |
Material | Pre-galvanized steel |
Side rail thickness | 2 mm |
Type | Heavy metal trays - " U5 Combitech" |
Length | 3000 mm |
Accessories
Analogs

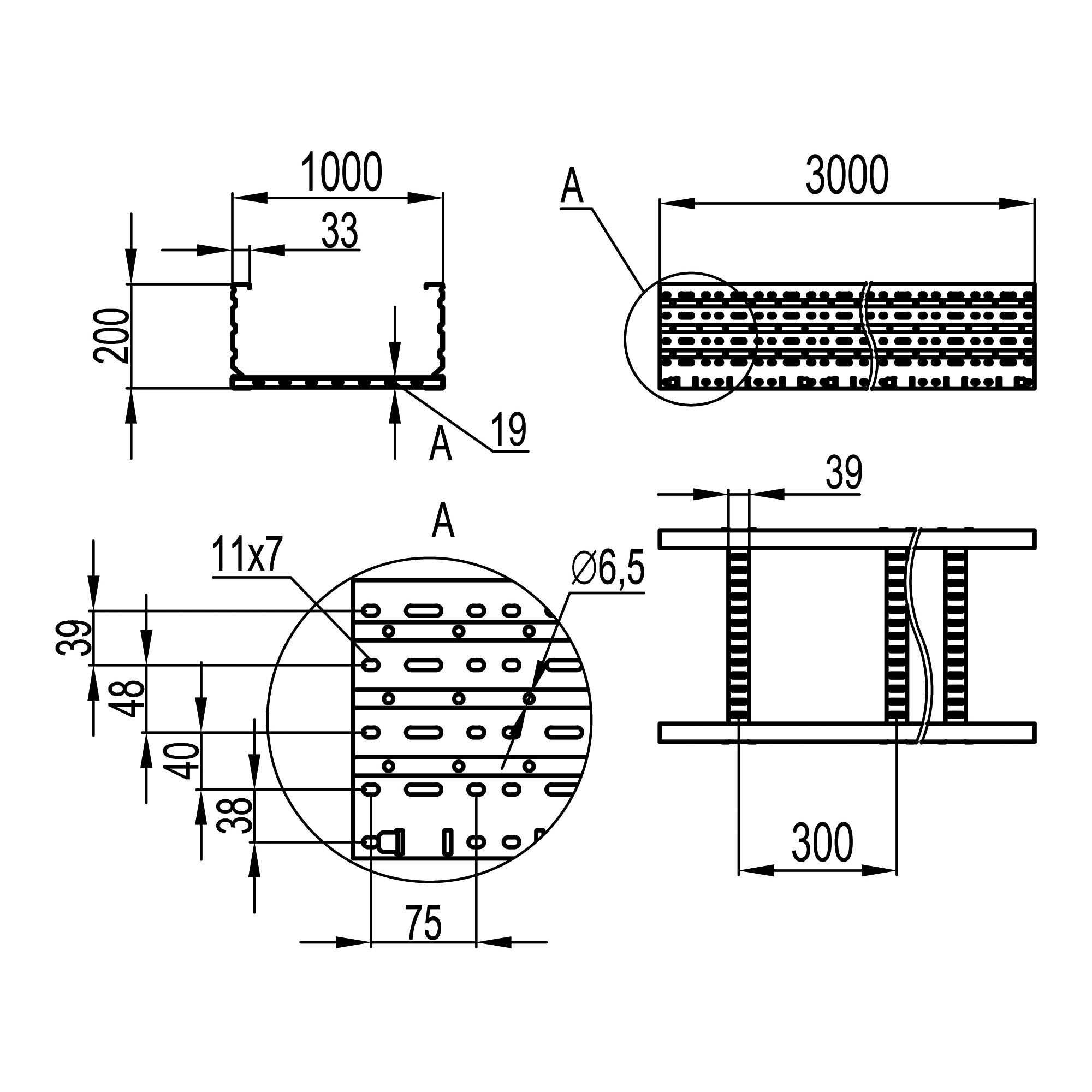

Drawings
Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
---|---|---|---|---|---|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
Certificates
Name | Document |
---|---|
