| Colour | Light grey |
| Width, mm | 200 |
| Height, mm | 80 |
| RAL-number | 9016 |
| Surface protection | Sendzimir galvanized |
| Type of rung | Perforated profile |
| Material quality | Steel |
| Length, mm | 3000 |
| Material | Steel |
| Useful cross section, mm² | 16000 |
| Stainless steel, pickled | No |
| Wide span model | No |
| Suitable for circuit integrity | No |
| Fixation rung | Fully revited |
| Side rail thickness | 2 mm |

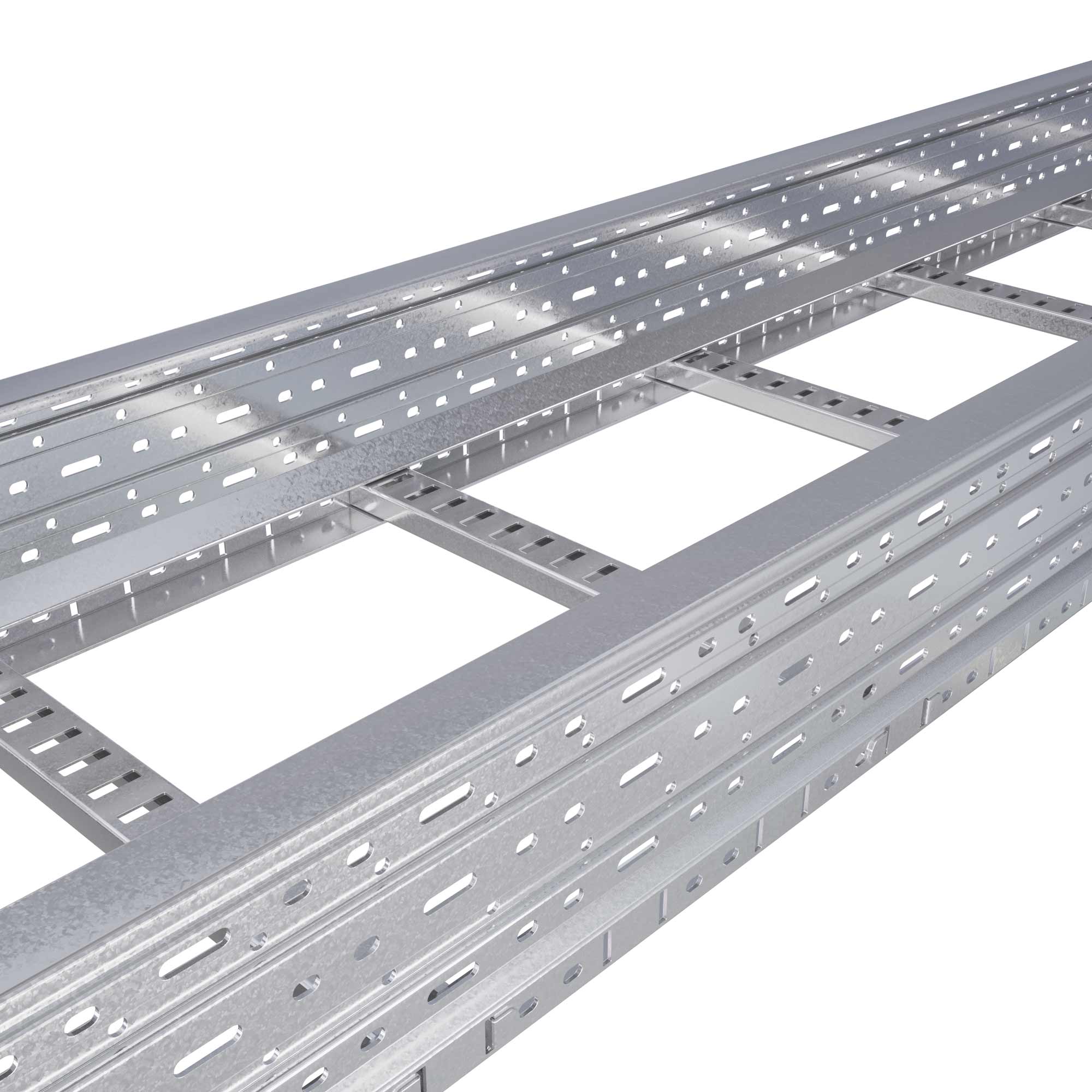

| Type | Heavy metal trays - " U5 Combitech" |

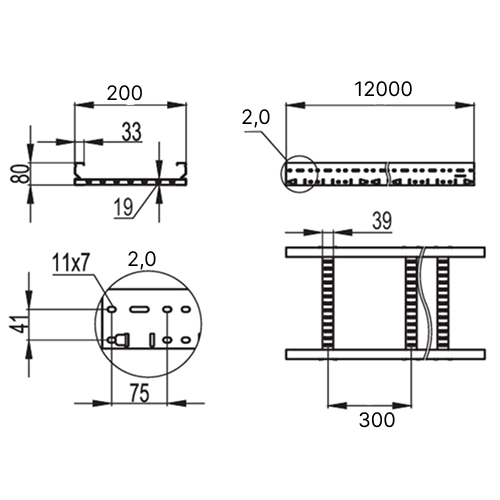

Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
|---|---|---|---|---|---|
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
