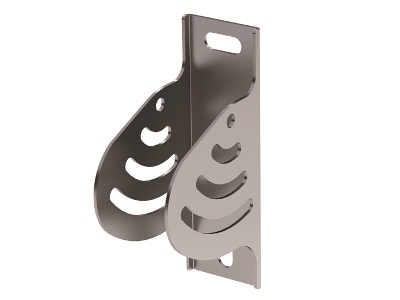

Vertical support with adjustable angle SSC, thickness 2,0 mm
Code: BSV2902
Vertical support with adjustable angle SSC, thickness 2,0 mm
Code: BSV2902
Model | Mounting angle bracket |
Suitable for | U-profile |
Surface protection | Galvanic/electrolytic zinc plated |
Material | Steel |
With screw accessories | Yes |
Height, mm | 95 |
Width, mm | 50 |
Length, mm | 158,5 |
Thickness of metal sheet, mm | 2 |
Type | Vertical supports and traverses |
Material | Pre-galvanized steel |
Accessories
Analogs

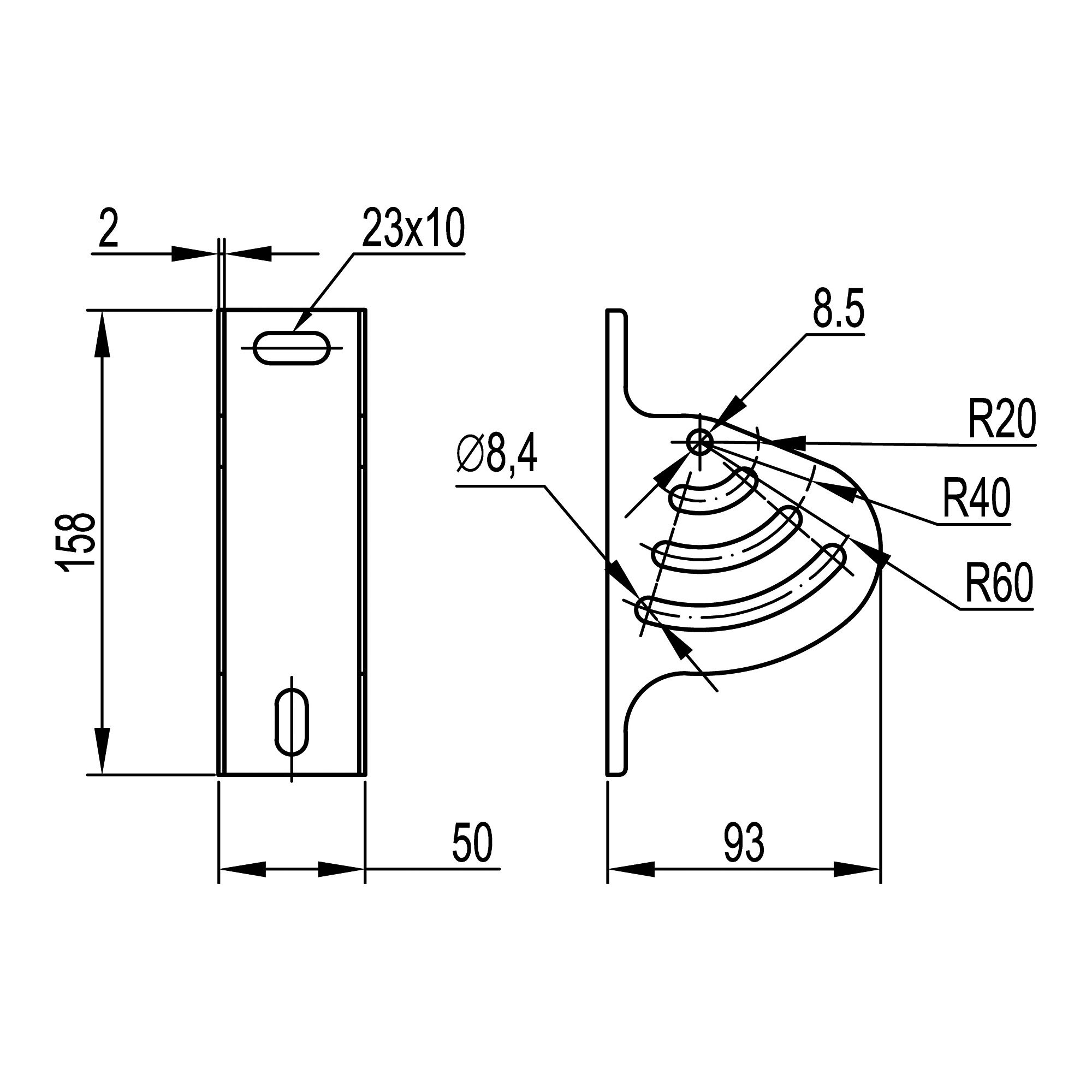

Drawings
