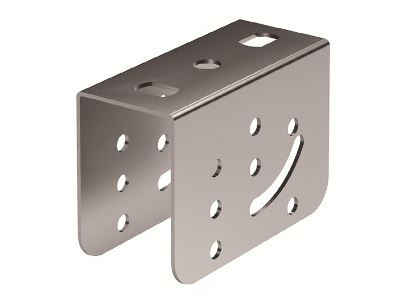

Vertical support SML, thickness 2,0 mm
Code: BSV2901
Vertical support SML, thickness 2,0 mm
Code: BSV2901
| Model | Mounting base |
| Suitable for | U-profile |
| Surface protection | Galvanic/electrolytic zinc plated |
| Material | Steel |
| With screw accessories | Yes |
| Height, mm | 85 |
| Width, mm | 54 |
| Length, mm | 120 |
| Thickness of metal sheet, mm | 2 |
| Type | Vertical supports and traverses |
| Material | Pre-galvanized steel |
Accessories
Analogs
The accompanying goods

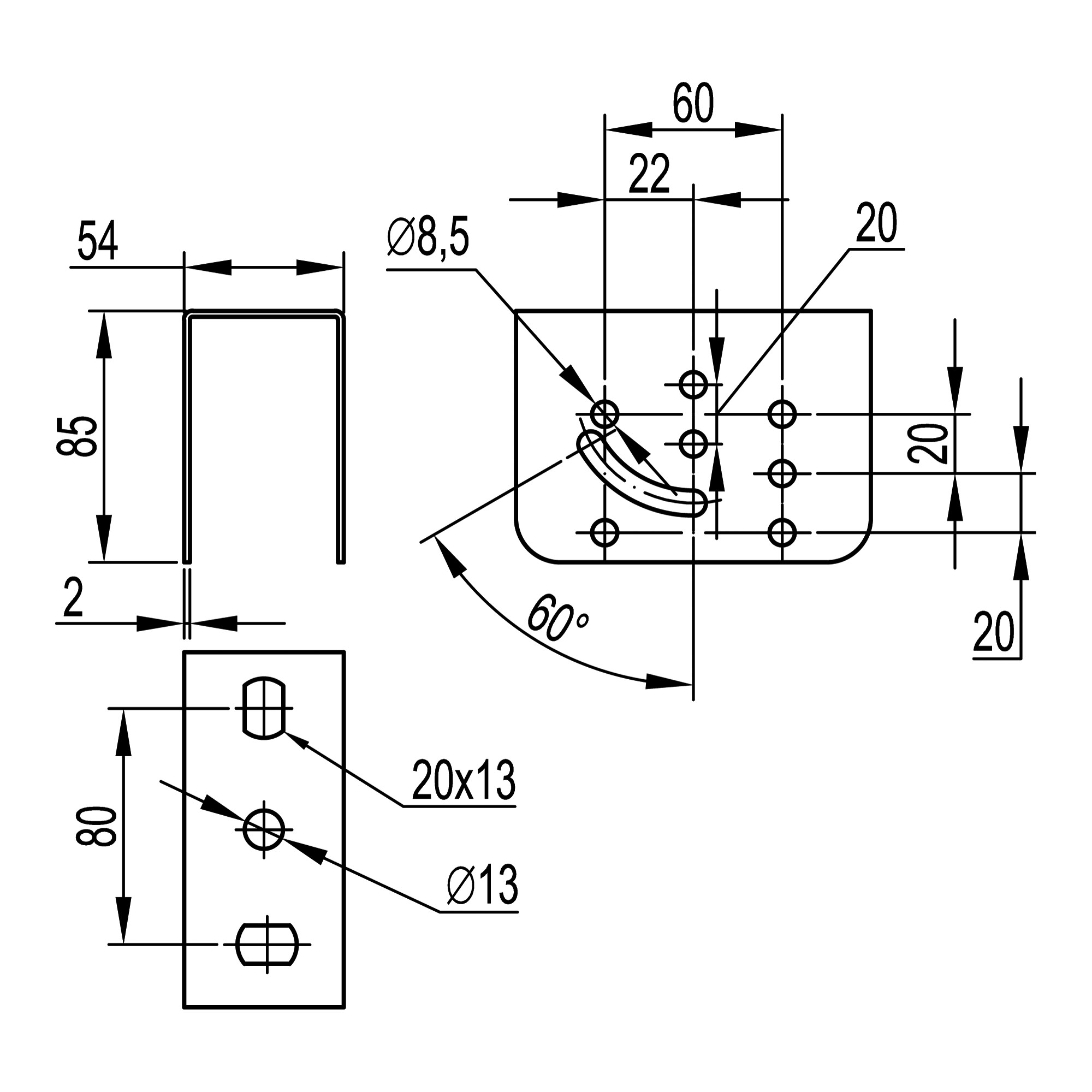

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
