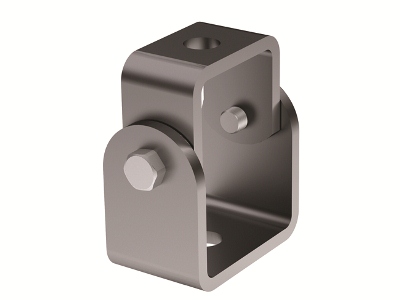

Universal joint tiltable for the threaded rods M12, thickness 5,0 mm
Code: BSV1012
Universal joint tiltable for the threaded rods M12, thickness 5,0 mm
Code: BSV1012
| Model | Wall connecting angle |
| Suitable for | U-profile |
| Surface protection | Galvanic/electrolytic zinc plated |
| Material | Steel |
| With screw accessories | Yes |
| Height, mm | 39 |
| Width, mm | 80 |
| Length, mm | 40 |
| Thickness of metal sheet, mm | 5 |
| Type | Vertical supports and traverses |
| Material | Electrogalvanised |
Accessories
The accompanying goods

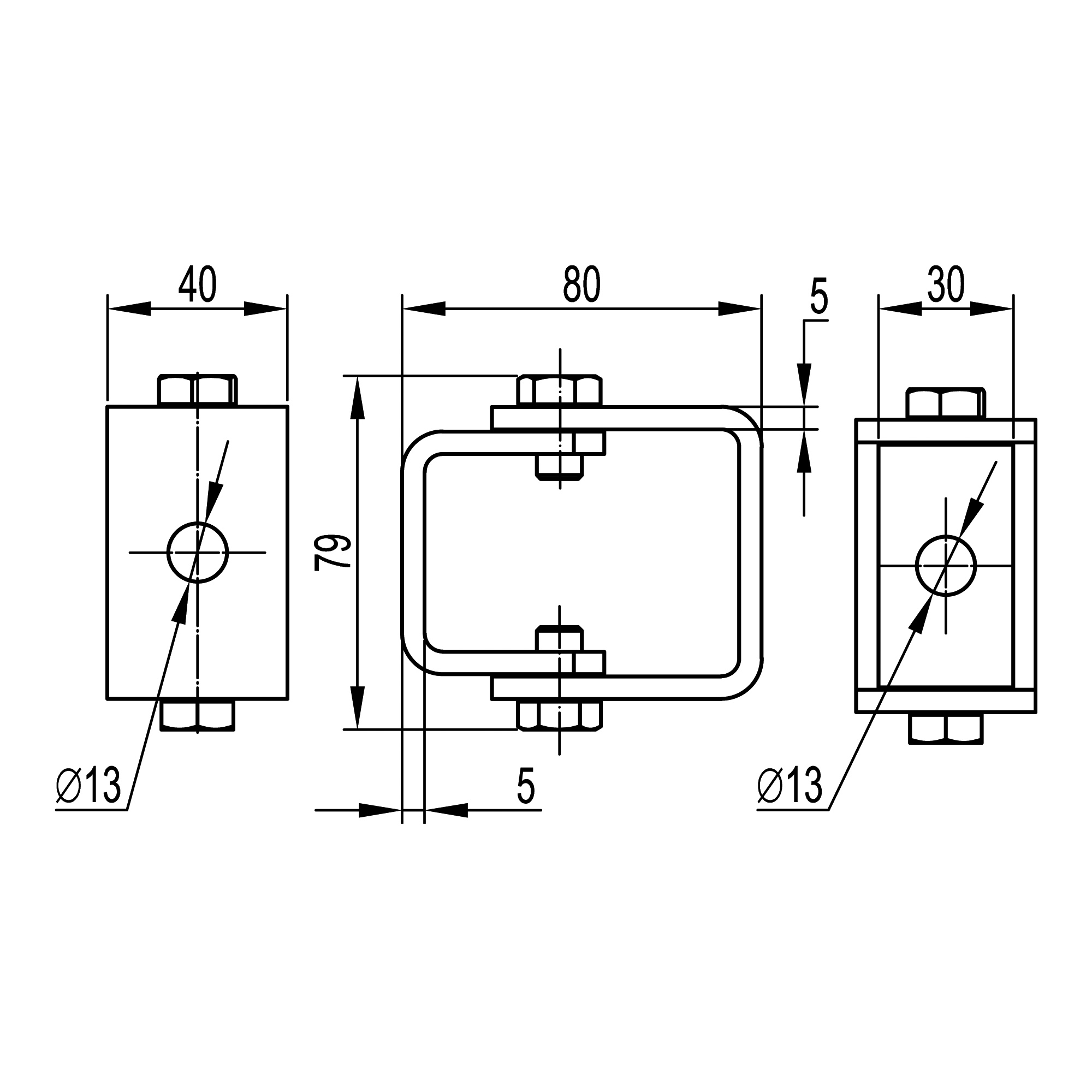

Drawings
