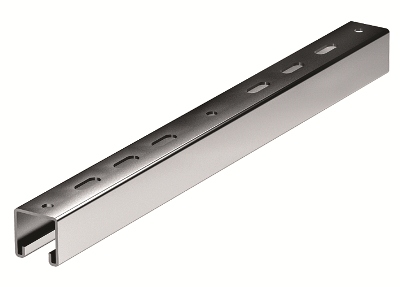

Traverse, L500, thickness 2,5 mm
Code: BST4150
Traverse, L500, thickness 2,5 mm
Code: BST4150
| Colour | Light grey |
| Width, mm | 41 |
| Model | Pendant bar |
| Height, mm | 41 |
| Surface protection | Sendzimir galvanized |
| Diameter, mm | 13 |
| Adjustable | No |
| Hinging | No |
| Material quality | Other |
| Length, mm | 551.27 |
| Material | Steel |
| Thread size (metric) | 12 |
| Suitable for circuit integrity | No |
| Material | Pre-galvanized steel |
| Height, mm | 41 |
| Width, mm | 41 |
| Length, mm | 560 |
| Thickness of metal sheet, mm | 2,5 |
| Type | Vertical supports and traverses |
Accessories
Analogs

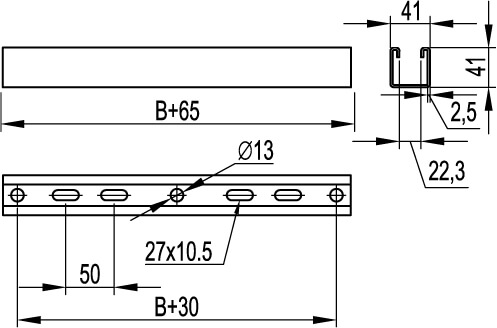

Drawings
| Seria | Name | DWG (dynamic.) | AVEVA | Intergraph | STEP | SAT |
|---|---|---|---|---|---|---|
|
Mounting accessories - "B5 Combitech"
|
|
|
|
|
||
|
Mounting accessories - "B5 Combitech"
|
Certificates
| Name | Document |
|---|---|
