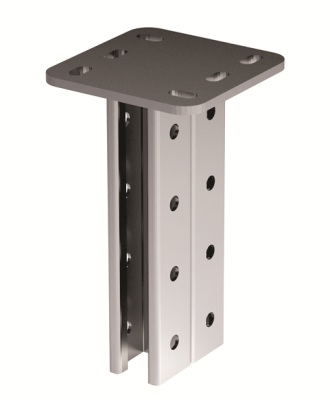

Double vertical bracket support 41х41, L1500, thickness 2,5mm

Code: BSD4115

Double vertical bracket support 41х41, L1500, thickness 2,5mm

Code: BSD4115
Colour Light grey
Width, mm 120
Model Pendant bar
Height, mm 120
Surface protection Galvanic/electrolytic zinc plated
Diameter, mm 10.5
Adjustable No
Hinging No
Material quality Other
Length, mm 1500
Material Steel
Thread size (metric) 10
Suitable for circuit integrity No
Width, mm 120
Length, mm 1500
Thickness of metal sheet, mm 2,5
Type Vertical supports and traverses
Material Pre-galvanized steel
Accessories
Analogs

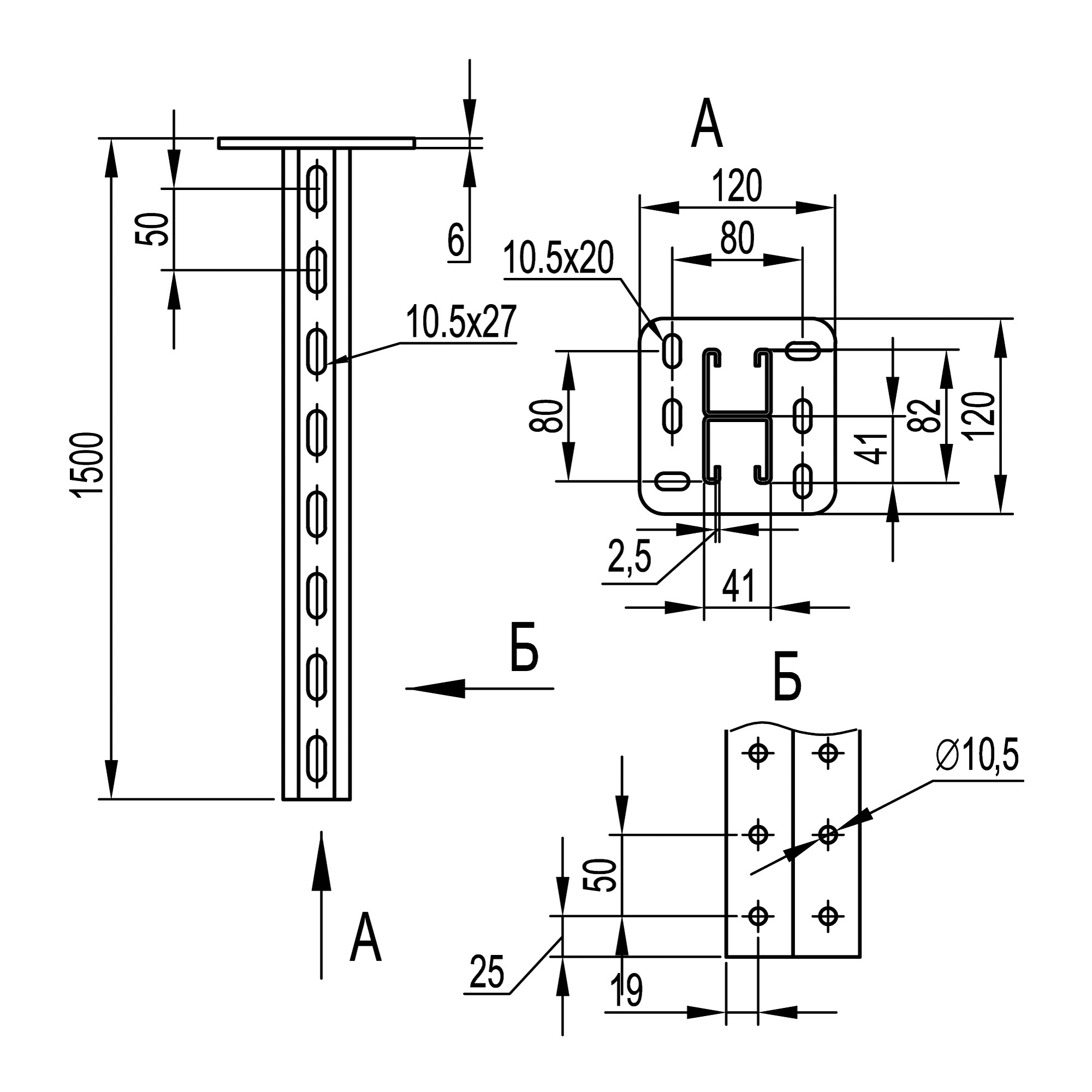

Drawings
Seria Name DWG (dynamic.) AVEVA Intergraph STEP SAT
Mounting accessories - "B5 Combitech"
Mounting accessories - "B5 Combitech"
Certificates
Name Document
