Interlocked socket. Flush mounting. IP67 32A 3P+E 400V

Code: DIS4053286
Number of poles 4
Material Plastic
IEC-amperage, A 32
Degree of protection (IP) IP67
Military model No
Clock hour position, h 6
Identification colour Red
Voltage acc. EN 60309-2 400 V (50+60 Hz) red
Flange size vertical, mm 125
Flange size horizontal, mm 136
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 70
Height of device 70
Depth of device 144
Height, mm 125
Width, mm 136
Temperature of operation, °C 60
Shock resistance, J 2
Depth, mm 119

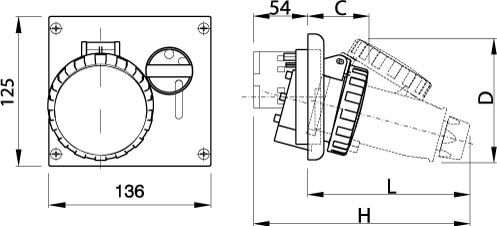

Drawings
