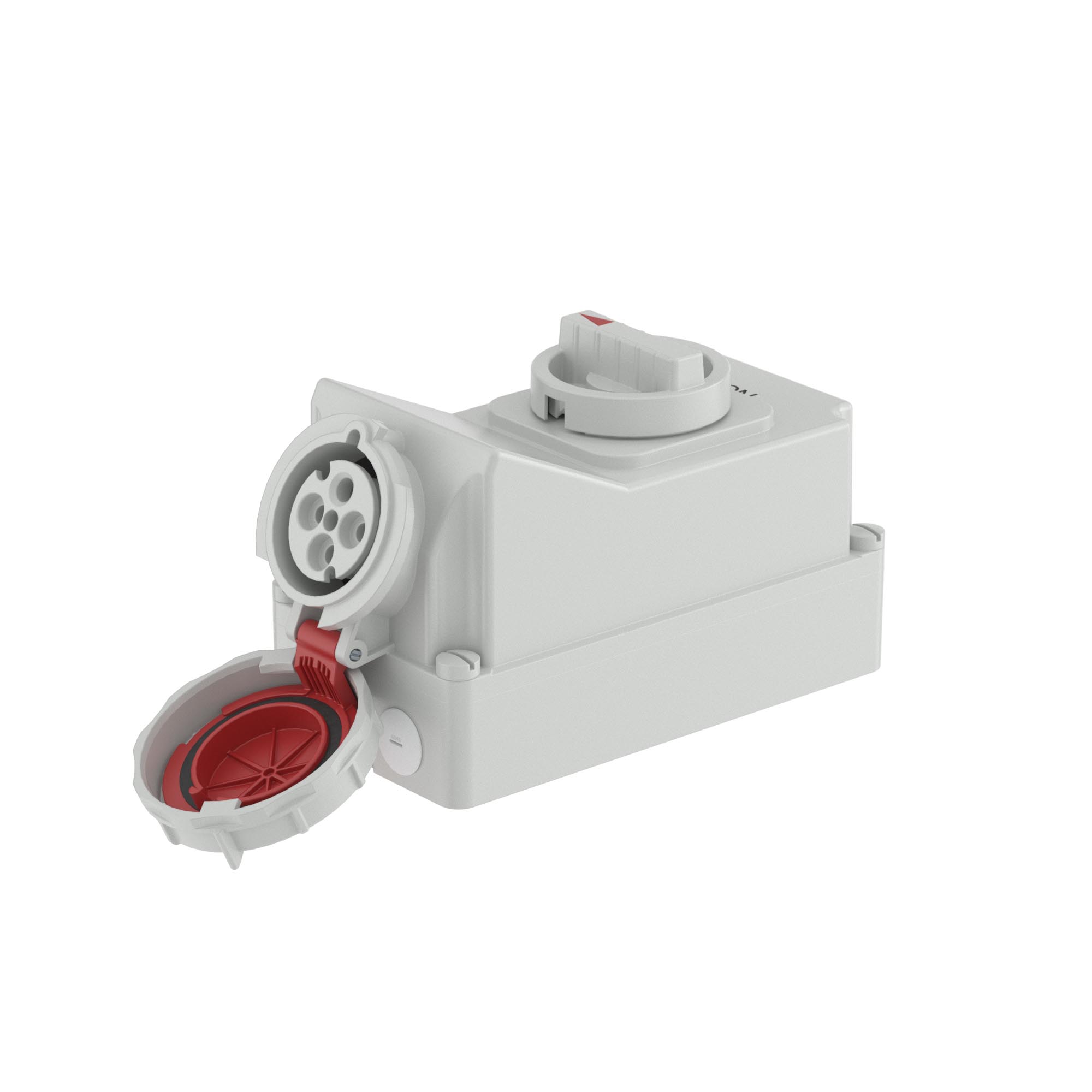

Interlocked socket. Surface mounting. IP67 32A 3P+E 400V

Code: DIS5613286
Height, mm 272
Width, mm 106
Temperature of operation, °C 60
Shock resistance, J 2
Depth, mm 164
Number of poles 4
Material Plastic
IEC-amperage, A 32
Degree of protection (IP) IP67
Military model No
Clock hour position, h 6
Identification colour Red
Voltage acc. EN 60309-2 400 V (50+60 Hz) red
Flange size vertical, mm 240
Flange size horizontal, mm 106
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 75
Height of device 75
Depth of device 73

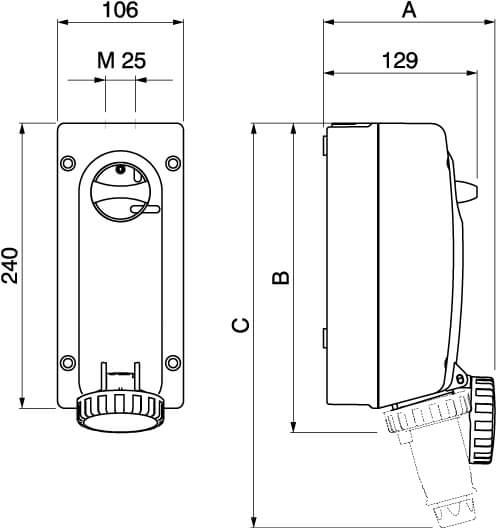

Drawings
Seria Name Eplan DWG
