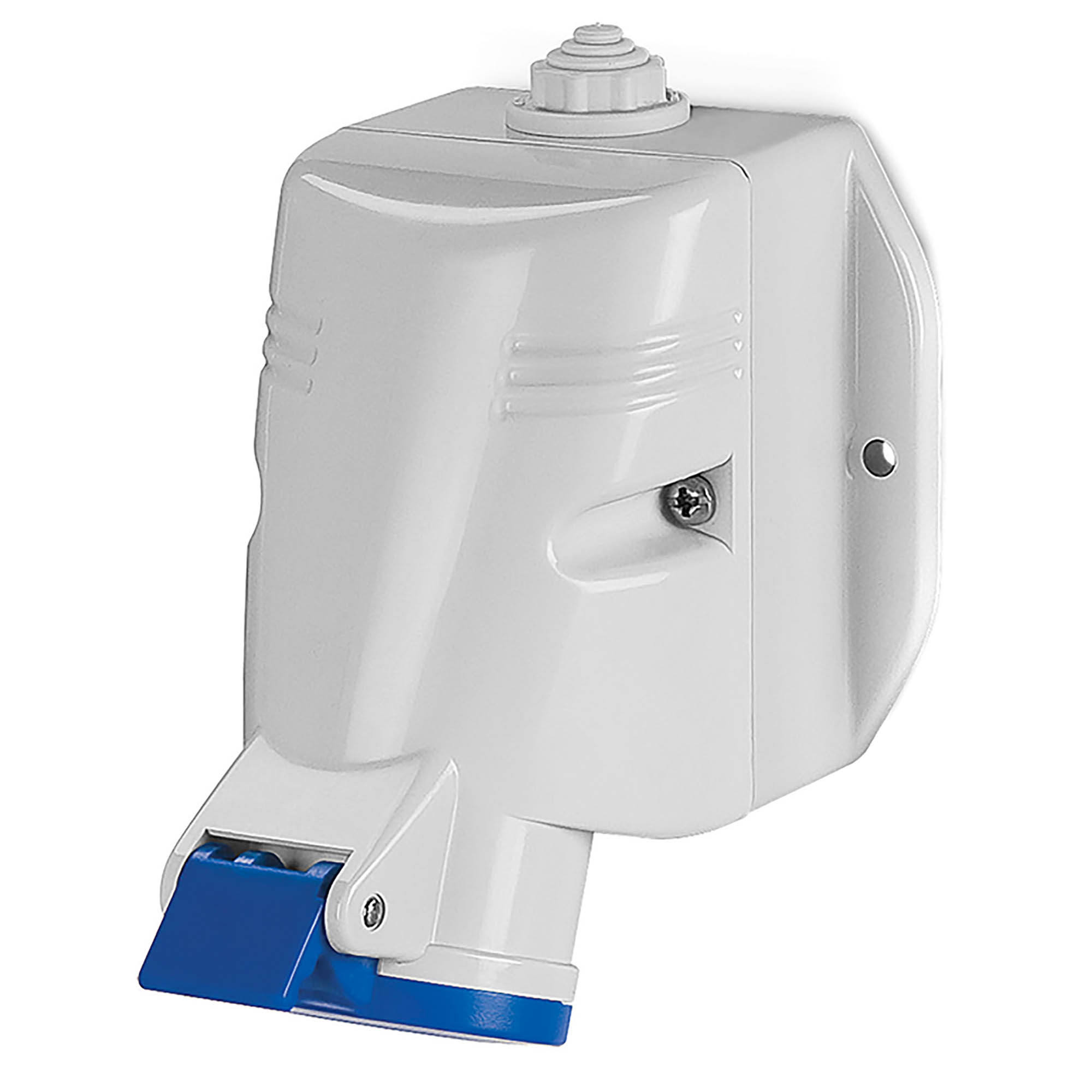

Surface mounting socket screwless IP44 32A 2P+E 230V

Code: DIS5133253TF
Model Surface mounted (plaster)
Number of poles 3
Material Plastic
Type of fastening External mounting
IEC-amperage, A 32
Degree of protection (IP) IP44
Military model No
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Connection system Screw less terminal
Contact less detection of the sense of rotation No
Angle of plug Straight
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Flange size vertical 114
Flange size horizontal 90
Width of device 73
Height of device 128
Depth of device 128
Height, mm 182
Width, mm 99
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 115

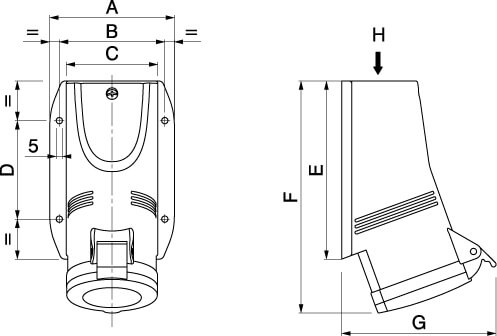

Drawings
Seria Name Eplan DWG
