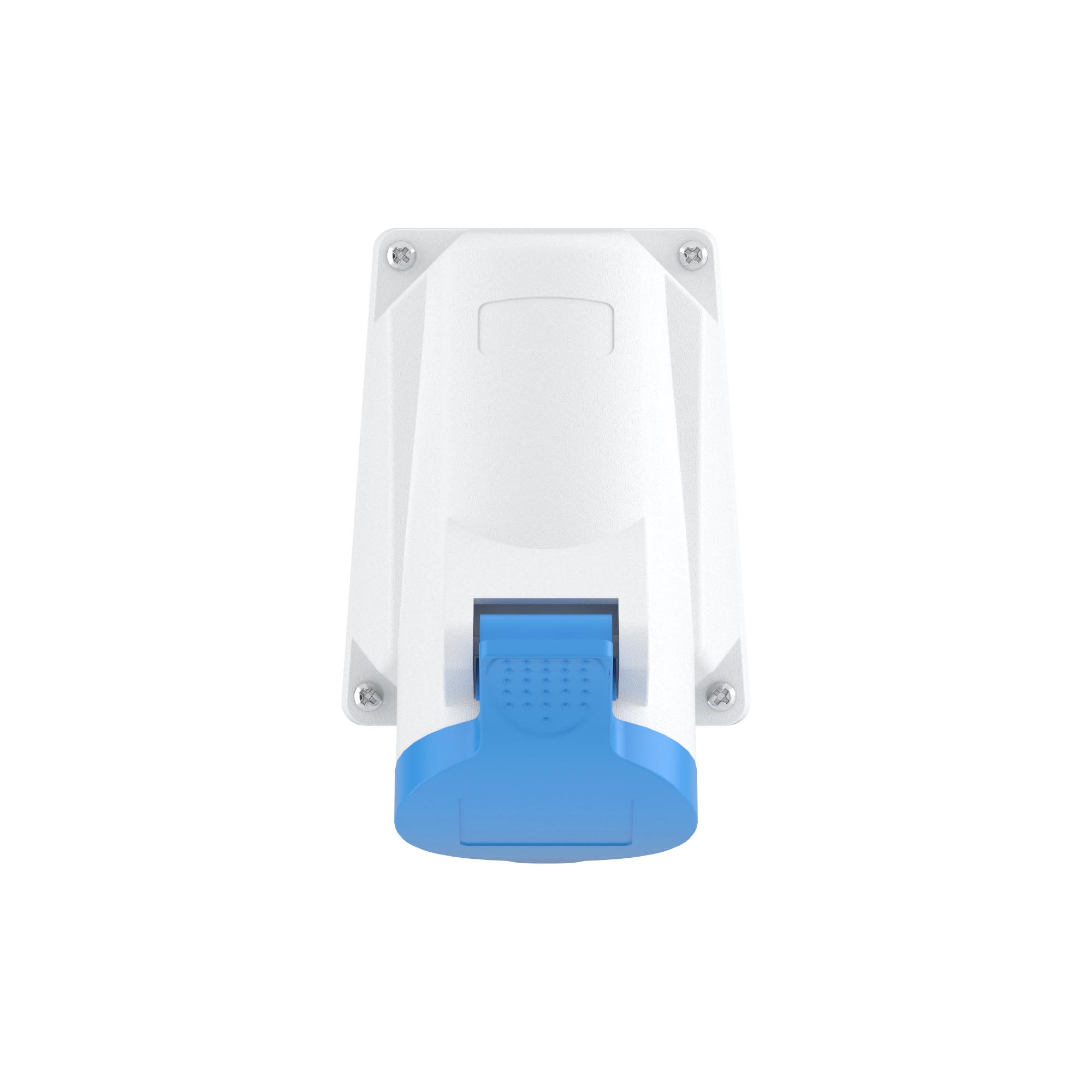

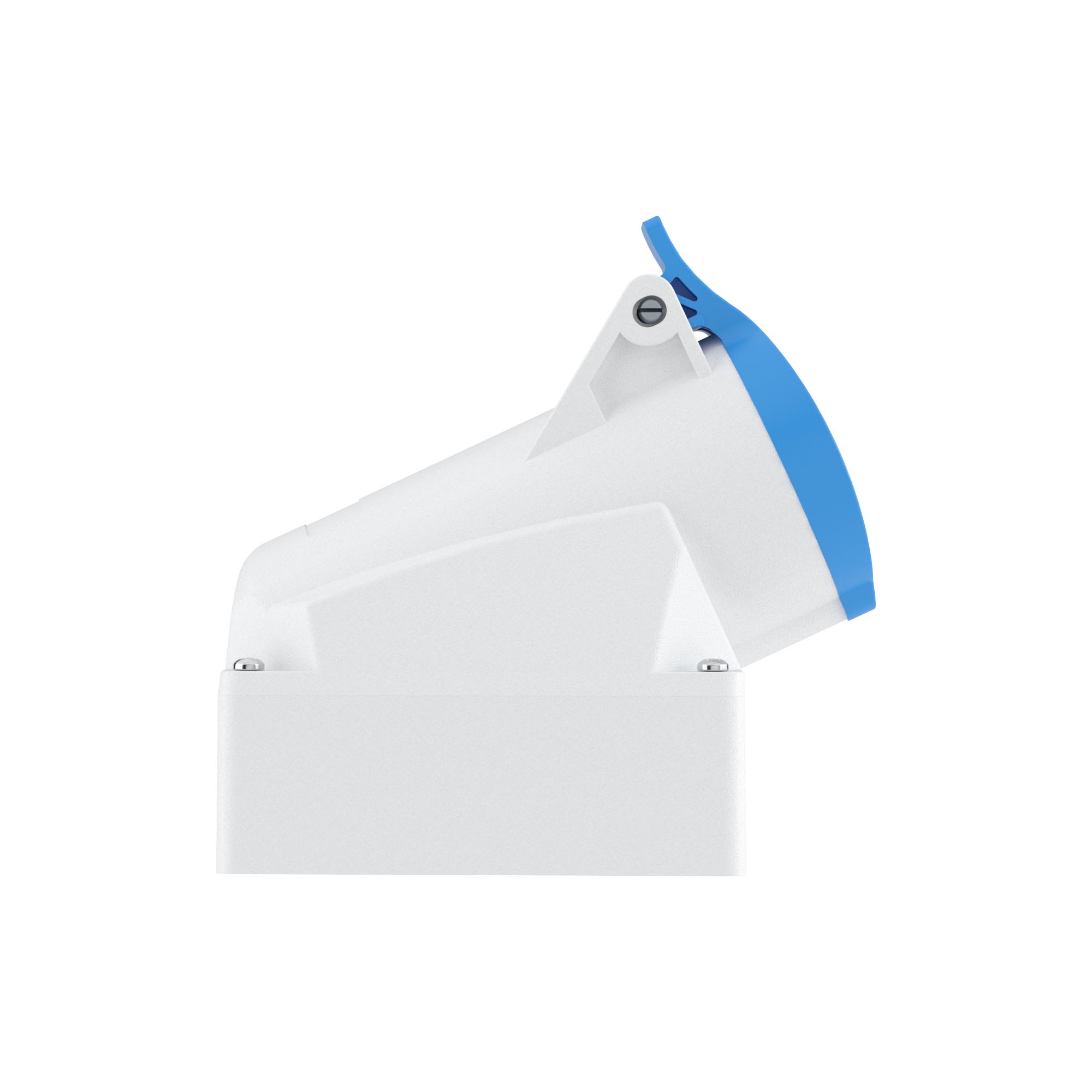

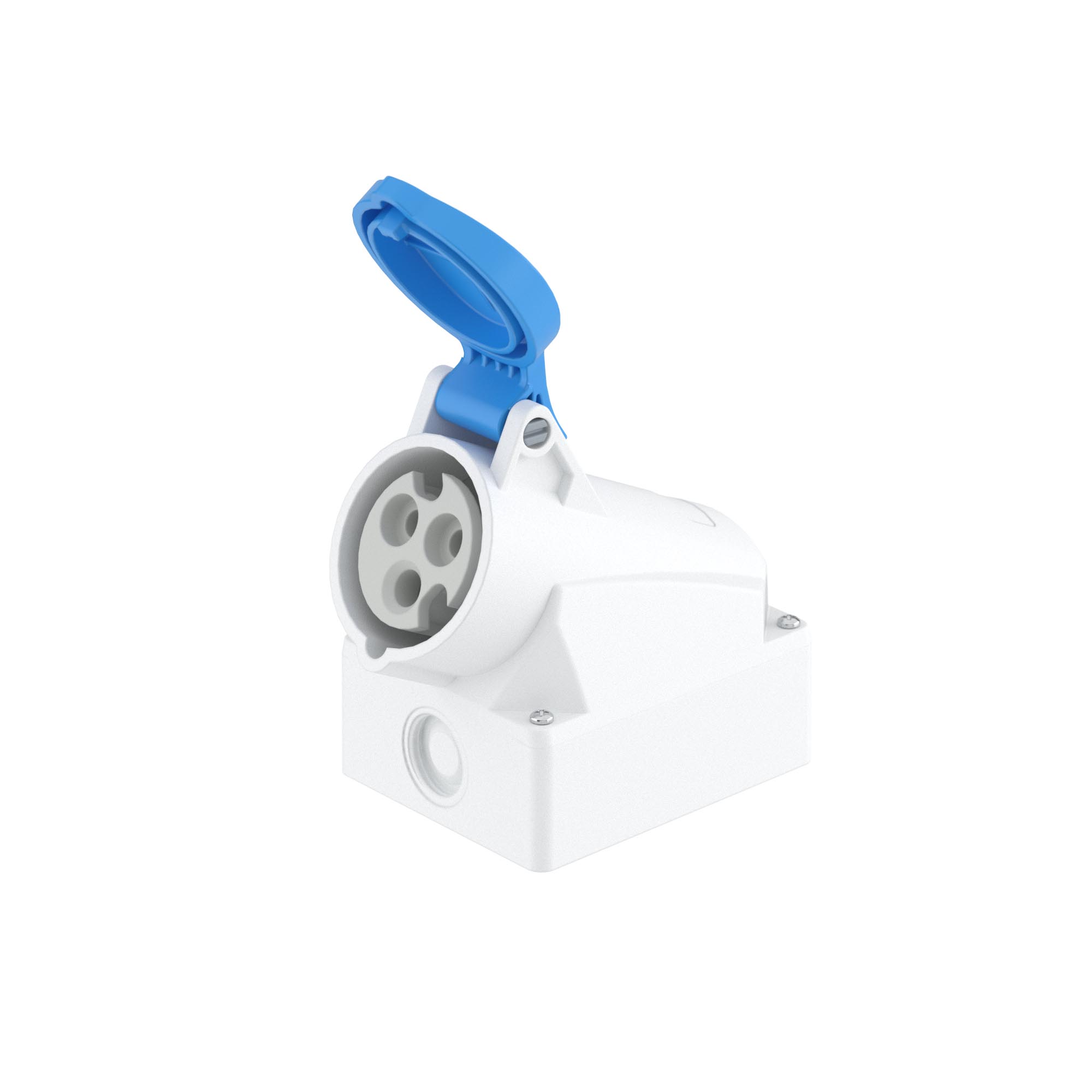

Surface mounting socket IP44 32A 2P+E 230V

Code: DIS5133253

Surface mounting socket IP44 32A 2P+E 230V

Code: DIS5133253
Model Surface mounted (plaster)
Number of poles 3
Material Plastic
Type of fastening External mounting
IEC-amperage, A 32
Degree of protection (IP) IP44
Military model No
Identification colour Blue
Voltage according to EN 60309-2 230 V (50+60 Hz) blue
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Straight
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Flange size vertical 141
Flange size horizontal 99
Width of device 99
Height of device 182
Depth of device 115
Height, mm 182
Width, mm 99
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 115
Product type Surface mounting socket
Voltage 230 V

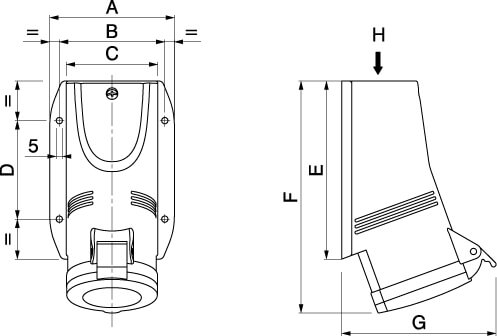

Drawings
